100% Custom Industrial Heavy-Duty DC Rectifier Systems for Hard Chrome Plating Lines

Engineered for extreme heavy-duty hard chrome electroplating tanks demanding absolute continuous reliability.

Reject off-the-shelf limits. Our Custom Industrial DC Rectifier Systems provide heavy-power engineering tailored precisely to your plant busbar layouts and chemical configurations. Built to survive long-cycle deposition workloads under aggressive ambient chromic acid mist environments.

✓ Tailored Voltage & Current Matrices: Supports flexible power engineering configurations spanning 5,000A to 100,000A+ to align with large industrial hydraulic shafts and heavy rolling mills.
✓ Zero-Downtime N+1 Redundancy: Hot-swappable modular architecture dynamically balances active current output, isolating module anomalies to eliminate catastrophic long-cycle plating batch failures.
✓ Severe Environmental Protection: Formulated with heavy hermetic isolation barriers to totally isolate critical switching electronics from highly corrosive chromic acid mists.

100% Custom Tailored
Heavy-Duty High Current
Chromic Acid Mist Proof

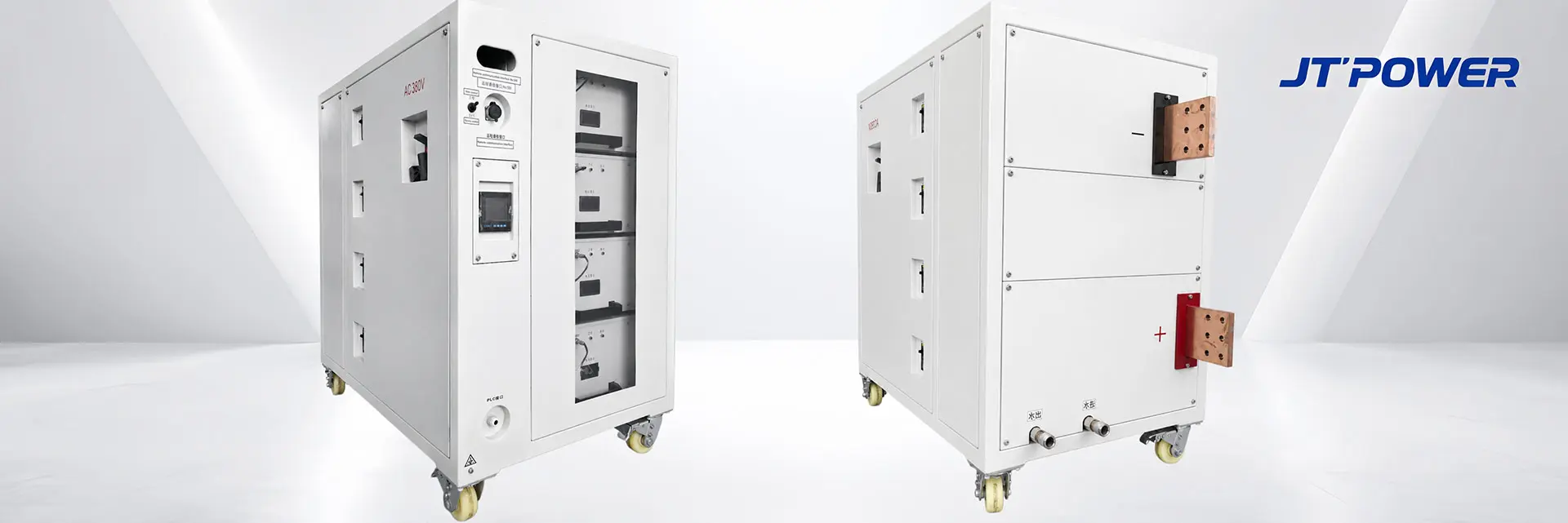

100% custom industrial DC rectifier systems and high power switching power supplies - JT-POWER

Technical Specifications & Engineering Matrix (Custom Industrial Design)

*All heavy-power engineering parameters are fully scalable and customizable based on plant blueprints.

Heavy-Capacity Scalability
Engineered to configure custom high-current topologies up to 100,000A+ per system. Fully adaptive to diverse international distribution networks including heavy-power industrial grids (3-Phase AC 380V / 415V / 480V).

Premium Micro-Hardness
Utilizes advanced multi-stage LC low-pass filter loops to regulate a stable Ripple Coefficient ≤ 1% RMS, maximizing uniform chromium thickness deposition and micro-hardness levels up to ≥ 1000 HV.

SiC Soft-Switching Topologies
Powered by ultra-rugged high-frequency Silicon Carbide (SiC) enhanced IGBT systems. Flexibly customized with dedicated forced-air duct isolation or severe industrial liquid cooling loops.

Industry 4.0 Factory Telemetry
Compliant with CE LVD (2014/35/EU) & EMC (2014/30/EU). Supports fully customized digital integration interfacing directly via Modbus, Profibus, or Profinet PLC communication frameworks.

Industrial Customization Matrix Standard Engineering Profile Custom Engineering Range / Compliance
Output Current Scale 5,000A – 30,000A Standard Base 100% Scalable up to 100,000A+ via cluster arrays
Output DC Voltage 12V / 15V / 24V Regular Base 6V up to 60V+ Tailored Tank Engineering Matching
International Certification CE Attestation of Conformity Fully Compliant with EU LVD (2014/35/EU) & EMC (2014/30/EU)
Rated Input Voltage 3-Phase AC 380V/415V/480V ±10%, 50Hz/60Hz Global standard industrial grid matching adaptive design
Ripple Coefficient ≤ 1% RMS (Full Load Range) LC low-pass multi-stage smooth wave filtration loops
Power Factor (COSΦ) ≥ 0.95 (At Full Rated Load) Minimizes reactive power losses on local plant grids
Cooling Framework Forced Air Cooling / Industrial Water-Cooling Dual CE certified profiles tailored to site conditions
Power Semiconductor Silicon Carbide (SiC) Enhanced IGBT Module High-frequency heavy industrial electronic switch-mode topologies
Operating Condition 100% Full-Load Continuous 24/7 Duty Cycle Engineered for aggressive heavy industrial tank environments

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Alt text: Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout Equipment Structure Diagram: A clear understanding of the internal structure and functional components of the equipment.

Alt text: Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Custom Blueprinting Framework

Blueprint Adaptive

Built From Your Schematics & Plant Blueprints

Deploying a new industrial plant or restructuring existing bays? Simply forward us your mechanical blueprints or station layouts, and our engineering team will build custom enclosures to fit perfectly.

Patent No

Proprietary High-Frequency Transformer (Patent No: ZL 2019 2 1905918.5)

Incorporating our elite magnetic core matrix engineering, the system directs massive energies with near-zero leakage inductance, heavily reducing continuous cabinet heat dissipation boundaries.

Patent No

Integrated Thermal Dissipation Base (Patent No: ZL 2019 3 0679510.X)

Utilizing our patented copper heavy cooling substrate arrays, critical junction thermal vectors route outward instantly, expanding equipment lifetime margins under constant 24/7 industrial loads.

Isolated Bus

Fully Galvanic Sealed Controller Vault

Our core microprocessor systems are completely sealed away from plant vapors, blocking aggressive common-mode noise and cross-talk ground feedback errors natively.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting back to the primary industrial PLC master grid.


Industrial Site Deployment & Global Logistics

1. Split-Modular Secure Shipping
To ensure maritime safety and facilitate crane-lifting within space-limited facilities, our heavy-duty 8000A systems utilize split-modular enclosure configurations. Units are encapsulated within ISPM-15 compliant sea-worthy wooden cases, lined with industrial moisture-proof membranes to guard against high-salinity marine corrosion.
2. International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering global industrial sea-freight solutions, compliant with international trade codes including FOB port, CIF seaport, and full DDP factory-integration processes.
3. Engineering Audit & Commissioning Support
We provide complete engineering blueprints, circuit schematics, internal component lists, and busbar configuration data to facilitate facility audits. Turnkey remote commissioning support, custom reverse-polarity programming loops, and complete device tracking arrays are provided for factory scalability.
Alt text: Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇

100% Custom Industrial Heavy-Duty DC Rectifier Systems for Hard Chrome Plating Lines

Engineered for extreme heavy-duty hard chrome electroplating tanks demanding absolute continuous reliability.

Reject off-the-shelf limits. Our Custom Industrial DC Rectifier Systems provide heavy-power engineering tailored precisely to your plant busbar layouts and chemical configurations. Built to survive long-cycle deposition workloads under aggressive ambient chromic acid mist environments.

✓ Tailored Voltage & Current Matrices: Supports flexible power engineering configurations spanning 5,000A to 100,000A+ to align with large industrial hydraulic shafts and heavy rolling mills.
✓ Zero-Downtime N+1 Redundancy: Hot-swappable modular architecture dynamically balances active current output, isolating module anomalies to eliminate catastrophic long-cycle plating batch failures.
✓ Severe Environmental Protection: Formulated with heavy hermetic isolation barriers to totally isolate critical switching electronics from highly corrosive chromic acid mists.

100% CUSTOM TAILORED
HEAVY-DUTY HIGH CURRENT
CHROMIC ACID MIST PROOF
100% custom industrial DC rectifier systems and high power switching power supplies - JT-POWER

Technical Specifications & Engineering Matrix (Custom Industrial Design)

*All heavy-power engineering parameters are fully scalable and customizable based on plant blueprints.

Heavy-Capacity Scalability
Engineered to configure custom high-current topologies up to 100,000A+ per system. Fully adaptive to diverse international distribution networks including heavy-power industrial grids (3-Phase AC 380V / 415V / 480V).

Premium Micro-Hardness
Utilizes advanced multi-stage LC low-pass filter loops to regulate a stable Ripple Coefficient ≤ 1% RMS, maximizing uniform chromium thickness deposition and micro-hardness levels up to ≥ 1000 HV.

SiC Soft-Switching Topologies
Powered by ultra-rugged high-frequency Silicon Carbide (SiC) enhanced IGBT systems. Flexibly customized with dedicated forced-air duct isolation or severe industrial liquid cooling loops.

Industry 4.0 Factory Telemetry
Compliant with CE LVD (2014/35/EU) & EMC (2014/30/EU). Supports fully customized digital integration interfacing directly via Modbus, Profibus, or Profinet PLC communication frameworks.

Output Current Scale
5,000A – 30,000A Standard Base
100% Scalable up to 100,000A+ via modular cluster arrays natively.

Output DC Voltage
12V / 15V / 24V Regular Base
6V up to 60V+ Custom Tank Engineering Matching to synchronize precise workflows.

International Certification
CE Attestation of Conformity
Fully Compliant with rigorous official EU LVD (2014/35/EU) & EMC (2014/30/EU) limits.

Rated Input Voltage
3-Phase AC 380V/415V/480V ±10%
Adaptive 50Hz/60Hz design matches global standard industrial grids effortlessly.

Ripple Coefficient
≤ 1% RMS (Full Load Range)
Utilizes advanced multi-stage LC low-pass smooth wave filtration topologies natively.

Power Factor (COSΦ)
≥ 0.95 (At Full Rated Load)
Minimizes reactive power overheads and stress parameters across heavy substation networks.

Cooling Framework
Forced Air Cooling / Liquid Water-Cooling
Dual premium certified thermal management architectures tailored precisely to site constraints.

Power Semiconductor
Silicon Carbide (SiC) Enhanced IGBT Module
High-frequency heavy industrial electronic switch-mode topologies for maximum longevity.

Operating Condition
100% Full-Load Continuous 24/7 Duty Cycle
Rugged structural encapsulation engineered flawlessly for hostile heavy industrial tank environments.

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout

System Topology Outline: Cross-sectional mapping of internal structural routing layouts and optimized functional power cell integration.

Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Blueprinting Matrix

Blueprint Adaptive
Built From Your Schematics & Plant Blueprints
Forward your mechanical blueprints or station layouts. Our engineering team will build custom enclosures to fit perfectly into your technical bays natively.
Patent No: ZL 2019 2 1905918.5
Proprietary High-Frequency Transformer Matrix
Incorporates elite magnetic core matrix engineering to direct massive energy with near-zero leakage inductance, heavily reducing heavy-power heat signatures.
Patent No: ZL 2019 3 0679510.X
Integrated Thermal Dissipation Copper Base
Patented copper heavy substrates route junction thermal vectors outward instantly, maximizing equipment system runtime parameters under constant continuous loads.
Isolated Bus
Fully Galvanic Sealed Controller Vault
Core microprocessor telemetry structures are entirely sealed away from plant vapors, blocking aggressive common-mode noise and ground loop feedback errors.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting.

Industrial rectifier centralized monitoring network system diagram with Master control and central server

Network Control System: Optical isolation hub with Modbus/Industrial Ethernet telemetry solution for centralized monitoring up to N≤32 clusters natively.

Industrial Site Deployment & Global Logistics

Step 01
Split-Modular Secure Shipping
Heavy-duty systems utilize split-modular configurations for limited site access. Units are sealed in ISPM-15 compliant sea-worthy wooden cases with moisture membranes to prevent maritime corrosion.
Step 02
International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering FOB port, CIF seaport, and global DDP factory-integration protocols.
Step 03
Engineering Audit & Commissioning Support
Complete engineering blueprints, circuit schematics, and busbar layouts are supplied for facility audits. Turnkey remote commissioning loops and tracking arrays are fully provided.
Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇
Back
JT-POWER heavy-duty custom industrial rectifier system for hard chrome plating, delivering scalable 10A to 10000A+ current and up to 1000V DC with advanced Silicon Carbide (SiC) topologies and CE certification
Leave Message

Related Products

Direct Engineering Hotline
+86-138-0268-7354
Global Sales Support
info@jt-rectifier.com
Technical Support Matrix
info@jt-rectifier.com
Proceed to Official Inquiry Page

Response within 24 hours

Section 1: Application & Plating Process FAQ 🛰️
How does your custom system engineering handle bespoke electrochemical voltage-current curves?
We don’t force your chemistry into standard boxes. Our blueprints match your exact electrolytic tank boundaries, optimizing power delivery profiles for complex operations via fully custom industrial DC rectifier systems built around your specific factory blueprints.
Can these custom rectifiers support heavy-duty reverse polarity switching profiles?
Yes. We integrate heavy-duty electronic or mechanical polarity reversing switches into the core configuration, enabling seamless dynamic switching cycles for complex reverse polarity electroplating power supplies.
How do you ensure deposit uniformity across massive chemical plating tanks?
By analyzing your multi-anode layouts, we calibrate internal multi-channel control loops that suppress localized current crowding, acting as highly uniform heavy duty industrial plating power supplies for aerospace and automotive giants.
What is the operational duty cycle rating for your tailormade rectifier setups?
Every single custom industrial rig is rated for continuous 100% full-load operation under severe conditions, proving their engineering integrity as robust continuous duty electroplating rectifiers across extreme shifts.
Do your custom builds provide necessary quality compliance logs for Nadcap or automotive audits?
Absolutely. We incorporate precision tracking nodes and deep internal registers that store ultra-accurate calibration data, matching the compliance frameworks of Nadcap compliant industrial rectifiers.
Section 2: Hardware Architecture & Enclosure FAQ 🔧
How do you approach extreme chassis dimensions and space restrictions in old facilities?
Our mechanical division designs fully custom enclosure shapes, optimizing footprint distributions through flexible multi-tier vertical or horizontal stacking to deliver a custom dimension benchtop industrial rectifier or floor cabinet.
What cooling technologies do you offer for hostile, corrosive acid mist environments?
Depending on your layout, we build either IP54 hermetically sealed water-cooled configurations or isolated-duct air-cooled assemblies, providing maximum protection as an anti-corrosion industrial power supply.
What transformer and magnetic topologies drive your ultra-high power custom units?
We employ heavy-duty EE130 nanocrystalline cores combined with multi-strand Litz wire windings to eliminate eddy current bottlenecks, creating a highly efficient high frequency transformer switching power supply block.
How are the heavy-current output busbars designed to handle up to 100,000A safely?
We custom-machine oversized, high-purity T2 red copper busbars with balanced drilling configurations, locking temperature rise within ΔT≤30°C for exceptional reliability in heavy duty copper busbar rectifiers.
Can your custom hardware design integrate an N+1 modular redundancy layout?
Yes. For high-priority production tracks, we deploy expandable modular designs where independent sub-modules hot-swap seamlessly, providing the extreme uptime of modular high power switching rectifiers.
Section 3: Digital Controls & Automation FAQ 🔬
Which hardware microcontroller architectures govern your custom control cards?
The computational core is driven by high-performance industrial chips, achieving zero phase-shift jitter and completely wiping out thermal drift seen in legacy microcontroller control electroplating rectifiers.
How do your custom systems communicate with legacy or modern factory PLC networks?
We map internal control states to your specific fieldbus choice, whether it demands isolated RS485 Modbus-RTU, Profinet, or Ethernet interfaces for seamless Profinet programmable industrial rectifiers integration.
What level of digital fine-tuning resolution do your custom HMIs support?
We calibrate our systems to match your operational granularity, offering precision adjustments down to 0.01V and 1A on our specialized precision digital industrial rectifiers interface networks.
How fast do your custom short-circuit protection matrices shield the tank from arcing?
The digital control card reads load deviations instantly, shutting down driving pulses in under 10 microseconds to establish a premium safety baseline for fast response protective rectifiers.
Can you embed specialized recipe storage and automated timeline ramp logic?
Yes, our firmware allows engineers to save and call up complex multi-step voltage, current, and time curves, functioning as high-end programmable recipe electroplating power supplies.
