Standard 12V 3000A Acid Copper Plating Power Supply | High Throwing Power

Specially engineered for high-aspect-ratio PCB via filling, complex hardware copper plating lines, and high-throwing-power decorative coating infrastructures.

This standard 12V 3000A SMPS Plating Rectifier platform incorporates an advanced modular IGBT switch mode electronic matrix, ensuring flawless DC wave purity and low-ripple output under continuous heavy loads. The entire electronic architecture is dynamically protected and fully isolated from aggressive ambient acid vapor tracks, ensuring premium void-free deposition scaling.

✓ Void-Free Filling Execution: High throwing power configuration forces standard copper ion distribution deep inside blind vias without common center pinch-offs.
✓ Ultra-Low Ripple Topologies: Limits harmonic ripple strictly to ≤ 1% RMS, driving optimized copper crystal textures and flawless layer geometries natively.
✓ Anti-Acid Mist Chassis Isolation: Premium multi-stage polyurethane coatings block dynamic chemical feedbacks, shielding modules safely against sulfuric/chloride solutions.
High Throwing Power PCB via Filling
12V / 3000A Full Scales
Ultra-Low Ripple ≤ 1% RMS

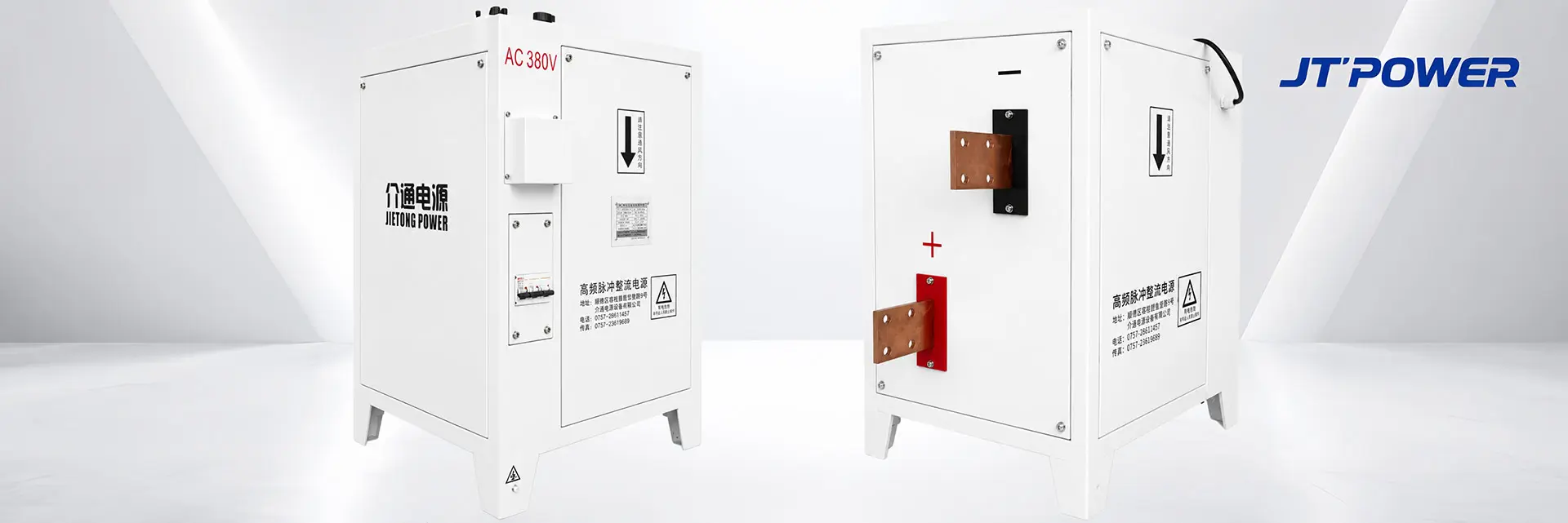

JT-POWER 12V 3000A high frequency switching power supply for industrial acid copper plating lines

Technical Specifications & Engineering Matrix (12V 3000A)

*All heavy-power engineering parameters are fully scalable and customizable based on plant blueprints.

Layer Uniformity Optimization
Microsecond electronic response loops clamp steady constant current precision within ≤ ±0.1%, terminating current crowding irregularities to protect uniform micron-level copper crystal deposition.
Polyurethane Anti-Acid Seal
All tracking logic nodes feature premium multi-layer industrial polyurethane lacquer defenses, blocking hostile sulfuric acid and high-chloride mist pathways to secure continuous workshop life cycles.
Ultra-Low Ripple Matrix
Forces high-frequency switching ripple factors strictly to ≤ 1% RMS via centralized LC low-pass matrices, native filtering boosts throwing power profiles inside high-density blind micro-vias.
Optically Isolated SCADA Node
Standard integrated RS485 Modbus RTU interface links are dynamically separated via optocouplers, bridging flawlessly with automated plant SCADA hubs without common-mode feedback noises.
Industrial Customization Matrix Standard Configuration Custom Engineering Range / Compliance
Output DC Current 3000 Amperes (Continuous Output) 500A — 10,000A+ (Flexible modular integration for dense plating tanks)
Output DC Voltage 12 Volts 6V / 8V / 15V / 24V Custom Options
International Certification CE Attestation of Conformity Fully Compliant with EU LVD (2014/35/EU) & EMC (2014/30/EU)
Rated Input Voltage 3-Phase AC 380V/415V/480V ±10%, 50Hz/60Hz Global standard industrial grid matching adaptive design
Ripple Coefficient ≤ 1% RMS (Full Load Range) LC low-pass multi-stage smooth wave filtration loops to guarantee grain structures
Power Factor (COSΦ) ≥ 0.95 (At Full Rated Load) Minimizes reactive power losses on local plant grids
Cooling Framework Forced Air Cooling / Industrial Water-Cooling Dual CE certified profiles (XLDF / XLDS Series 500A-30000A)
Power Semiconductor Silicon Carbide (SiC) Enhanced IGBT Module High-frequency electronic switch-mode topologies
Operating Condition 100% Full-Load Continuous 24/7 Duty Cycle Engineered for aggressive heavy industrial tank environments

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Alt text: Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout Equipment Structure Diagram: A clear understanding of the internal structure and functional components of the equipment.

Alt text: Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Custom Blueprinting Framework

Blueprint Adaptive

Built From Your Schematics & Plant Blueprints

Deploying a new industrial plant or restructuring existing bays? Simply forward us your mechanical blueprints or station layouts, and our engineering team will build custom enclosures to fit perfectly.

Patent No

Proprietary High-Frequency Transformer (Patent No: ZL 2019 2 1905918.5)

Incorporating our elite magnetic core matrix engineering, the system directs massive energies with near-zero leakage inductance, heavily reducing continuous cabinet heat dissipation boundaries.

Patent No

Integrated Thermal Dissipation Base (Patent No: ZL 2019 3 0679510.X)

Utilizing our patented copper heavy cooling substrate arrays, critical junction thermal vectors route outward instantly, expanding equipment lifetime margins under constant 24/7 industrial loads.

Isolated Bus

Fully Galvanic Sealed Controller Vault

Our core microprocessor systems are completely sealed away from plant vapors, blocking aggressive common-mode noise and cross-talk ground feedback errors natively.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting back to the primary industrial PLC master grid.


Industrial Site Deployment & Global Logistics

1. Split-Modular Secure Shipping
To ensure maritime safety and facilitate crane-lifting within space-limited facilities, our heavy-duty 8000A systems utilize split-modular enclosure configurations. Units are encapsulated within ISPM-15 compliant sea-worthy wooden cases, lined with industrial moisture-proof membranes to guard against high-salinity marine corrosion.
2. International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering global industrial sea-freight solutions, compliant with international trade codes including FOB port, CIF seaport, and full DDP factory-integration processes.
3. Engineering Audit & Commissioning Support
We provide complete engineering blueprints, circuit schematics, internal component lists, and busbar configuration data to facilitate facility audits. Turnkey remote commissioning support, custom reverse-polarity programming loops, and complete device tracking arrays are provided for factory scalability.
Alt text: Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇

Standard 12V 3000A Acid Copper Plating Power Supply | High Throwing Power

Specially engineered for high-aspect-ratio PCB via filling, complex hardware copper plating lines, and high-throwing-power decorative coating infrastructures.

This standard 12V 3000A SMPS Plating Rectifier platform incorporates an advanced modular IGBT switch mode electronic matrix, ensuring flawless DC wave purity and low-ripple output under continuous heavy loads. The entire electronic architecture is dynamically protected and fully isolated from aggressive ambient acid vapor tracks, ensuring premium void-free deposition scaling.

✓ Void-Free Filling Execution: High throwing power configuration forces standard copper ion distribution deep inside blind vias without common center pinch-offs.
✓ Ultra-Low Ripple Topologies: Limits harmonic ripple strictly to ≤ 1% RMS, driving optimized copper crystal textures and flawless layer geometries natively.
✓ Anti-Acid Mist Chassis Isolation: Premium multi-stage polyurethane coatings block dynamic chemical feedbacks, shielding modules safely against sulfuric/chloride solutions.

HIGH THROWING POWER VIA FILLING
12V / 3000A FULL SCALES
ULTRA-LOW RIPPLE ≤ 1% RMS
JT-POWER 12V 3000A high frequency switching power supply for industrial acid copper plating lines

Technical Specifications & Engineering Matrix (12V 3000A)

*All heavy-power engineering parameters are fully scalable and customizable based on plant blueprints.

Layer Uniformity Optimization
Microsecond electronic response loops clamp steady constant current precision within ≤ ±0.1%, terminating current crowding irregularities to protect uniform micron-level copper crystal deposition.

Polyurethane Anti-Acid Seal
All tracking logic control nodes feature premium multi-layer industrial polyurethane lacquer defenses, blocking hostile sulfuric acid and high-chloride mist pathways to secure continuous workshop life cycles.

Ultra-Low Ripple Matrix
Forces high-frequency switching ripple factors strictly to ≤ 1% RMS via centralized LC low-pass matrices, native filtering boosts throwing power profiles inside high-density blind micro-vias.

Optically Isolated SCADA Node
Standard embedded RS485 Modbus RTU interface protocols are fully isolated via high-speed optocouplers, linking effortlessly with centralized Siemens, Allen-Bradley, or Omron factory automation cells without electromagnetic feedbacks.

Industrial Customization Matrix
Output DC Current: 3000 Amperes (Continuous Output)
500A — 10,000A+ (Flexible modular integration for dense plating tanks).

Standard Configuration
Output DC Voltage: 12 Volts
6V / 8V / 15V / 24V Custom Engineering Options.

International Certification
CE Attestation of Conformity Standard
Fully Compliant with official EU LVD (2014/35/EU) & EMC (2014/30/EU) bounds.

Rated Input Voltage
3-Phase AC 380V/415V/480V ±10%
Global standard industrial grid matching adaptive design infrastructure natively (50Hz/60Hz).

Ripple Coefficient
≤ 1% RMS (Full Load Range Configuration)
LC low-pass multi-stage smooth wave filtration loops to completely guarantee micro crystal grain structures.

Power Factor (COSΦ)
≤ 0.95 (At Full Rated Load Limits)
Minimizes active power line reactive losses on local plant industrial grids seamlessly.

Cooling Framework
Forced Air Cooling / Industrial Water-Cooling
Dual certified profiles (including XLDF / XLDS Series fields spanning 500A-30000A profiles cleanly).

Power Semiconductor
Silicon Carbide (SiC) Enhanced IGBT Module
High-frequency electronic switch-mode power topologies tracking matrix blocks.

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout

System Topology Outline: Cross-sectional mapping of internal structural routing layouts and optimized functional power cell integration.

Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Blueprinting Matrix

Blueprint Adaptive
Built From Your Schematics & Plant Blueprints
Forward your mechanical blueprints or station layouts. Our engineering team will build custom enclosures to fit perfectly into your technical bays natively.
Patent No: ZL 2019 2 1905918.5
Proprietary High-Frequency Transformer Matrix
Incorporates elite magnetic core matrix engineering to direct massive energy with near-zero leakage inductance, heavily reducing heavy-power heat signatures.
Patent No: ZL 2019 3 0679510.X
Integrated Thermal Dissipation Copper Base
Patented copper heavy substrates route junction thermal vectors outward instantly, maximizing equipment system runtime parameters under constant continuous loads.
Isolated Bus
Fully Galvanic Sealed Controller Vault
Core microprocessor telemetry structures are entirely sealed away from plant vapors, blocking aggressive common-mode noise and ground loop feedback errors.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting.

Industrial rectifier centralized monitoring network system diagram with Master control and central server

Network Control System: Optical isolation hub with Modbus/Industrial Ethernet telemetry solution for centralized monitoring up to N≤32 clusters natively.

Industrial Site Deployment & Global Logistics

Step 01
Split-Modular Secure Shipping
Heavy-duty systems utilize split-modular configurations for limited site access. Units are sealed in ISPM-15 compliant sea-worthy wooden cases with moisture membranes to prevent maritime corrosion.
Step 02
International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering FOB port, CIF seaport, and global DDP factory-integration protocols.
Step 03
Engineering Audit & Commissioning Support
Complete engineering blueprints, circuit schematics, and busbar layouts are supplied for facility audits. Turnkey remote commissioning loops and tracking arrays are fully provided.
Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇
Back
JT-POWER 12V 3000A industrial acid copper plating DC rectifier system with heavy-duty enclosed chassis, AC 380V input breaker, and energy-saving SiC topologies for PCB and rotogravure cylinder plating.
Leave Message

Related Products

Direct Engineering Hotline
+86-138-0268-7354
Global Sales Support
info@jt-rectifier.com
Technical Support Matrix
info@jt-rectifier.com
Proceed to Official Inquiry Page

Response within 24 hours

Section 1: Application & Plating Process FAQ 🛰️
How does this 12V 3000A rectifier optimize copper thickness uniformity in acid copper tanks?
Acid copper baths require extremely precise current density management to achieve level, bright deposits without corner buildup or “burning.” Our system delivers ultra-fine voltage step control that ensures excellent throwing power across varied geometries, establishing itself as a premier acid copper plating power supply for automotive trim and hardware components.
What current ripple threshold does this unit guarantee, and how does it prevent dull plating deposits?
The current ripple factor is strictly capped at ≤1% RMS at full load. Minimizing ripple prevents micro-pulsations that disrupt copper brightener absorption, ensuring a mirror-like luster and preventing hazy or dull finishes standard in low ripple 3000A rectifiers lines.
Can this 12V power supply handle the high-acid, high-throw demands of heavy copper electroforming?
Yes, absolutely. Electroforming requires sustaining tight electrical tolerances over extensive multi-day runs. The integrated microsecond feedback loop dynamically counteracts bath impedance shifts, providing the precise current regulation demanded by modern heavy duty electroforming industrial rectifiers.
Is this 3000A rectifier engineered to sustain continuous 24/7 industrial shift cycles?
Engineered with a 100% continuous duty cycle rating, the entire internal power architecture utilizes conservative thermal safety margins to run at maximum output under non-stop production environments, qualifying as a highly reliable continuous duty electroplating rectifiers block.
Does this acid copper power supply comply with international Nadcap quality tracking audits?
Yes. Its ultra-precise sensor telemetry keeps voltage and current drift near zero, outputting the exact, uncorrupted data records required to pass strict aerospace and automotive Nadcap compliant industrial rectifiers auditing standards.
Section 2: Hardware Architecture & Enclosure FAQ 🔧
What are the hardware and efficiency benefits of moving from standard IGBTs to Silicon Carbide topology?
By incorporating premium Silicon Carbide (SiC) MOSFET switches operating at an elevated 100kHz frequency, the unit pushes conversion efficiency past 93%. This minimizes energy overhead and drastically reduces internal heat generation for high efficiency Silicon Carbide rectifiers.
How does the enclosure safeguard internal electronics from aggressive sulfuric acid fumes?
Acid copper lines emit severe, corrosive sulfuric acid vapors. The cabinet features an IP54-rated hermetically sealed internal compartment with isolated air ducts and specialized multi-layer conformal coatings, establishing an ultra-robust anti-corrosion acid copper plating rectifier chassis.
Are the 3000A internal output terminals robust enough to prevent thermal hotspots?
We custom-machine oversized, high-purity T2 red copper busbars finished with extensive silver plating. This eliminates contact resistance boundaries and locks full-load operating temperature delta to ΔT≤30°C for elite heavy duty copper busbar rectifiers.
What transformer core technology manages the continuous 36kW high-frequency output?
The transformer utilizes advanced nanocrystalline EE130 cores wound with multi-strand Litz wire. This configuration eliminates skin effect bottlenecks and core saturation common during continuous switching in this high frequency transformer switching power supply block.
Can this 3000A power supply be integrated into an N+1 modular redundancy configuration?
Yes, absolutely. The 3000A output can be shared across parallelized modular blocks. If a single module encounters a fault, the remaining blocks adjust automatically to sustain continuous production, delivering true modular high power switching rectifiers reliability.
Section 3: Digital Controls & Automation FAQ 🔬
Which digital communication protocols are supported for automated plating line PLC integration?
The control board natively features isolated RS485 Modbus-RTU links and can be upgraded to Profinet or Ethernet nodes, ensuring low-latency communication with central control rooms over a Profinet programmable industrial rectifiers network.
What hardware processor core drives the high-speed loop regulation?
The computational core is governed by a high-speed industrial microcontroller chip, executing fast regulation commands with zero thermal drift compared to old analog microcontroller control electroplating rectifiers cards.
How fast does the short-circuit protection matrix react to accidental tank shorts or arcing?
The digital control loop senses load deviations instantly and executes an electronic pulse shutdown in under 10 microseconds upon detecting dead shorts or tank faults, delivering elite safety standard in fast response pulse switching rectifiers.
Is the rectifier ready for complete factory-wide centralized SCADA tracking and logging?
Yes. All electrical parameters, historical error logs, and runtime curves are completely mapped to accessible internal registers, optimizing data syncing across automated SCADA compatible smart rectifiers architectures.
Will powering up a 3000A 12V rectifier cause dangerous voltage drops in the facility grid?
Not at all. The automated digital control system executes a smooth, programmable soft-start sequence that completely limits initial current inrush spikes, fulfilling the grid protection promises of our soft start high current rectifiers.
