12V 5000A Trivalent Chrome Plating Rectifier | Standard Eco-Friendly SMPS DC Power Supply

Engineered specifically for automated trivalent chromium (Cr3+) decorative and hard chrome alternative deposition draglines.

At JIETONG POWER (JT-POWER), we manufacture high-stability standardized rectifier systems meeting rigorous environmental compliance limits. This heavy-duty 5000A 12V Trivalent Chrome Plating Rectifier provides flat low-ripple wave outputs to totally eliminate bare-spotting or dark hazing, guaranteeing exquisite crystalline chrome deposition across massive workloads.

✓ Cr3+ Optimized Low Ripple (≤ 1% RMS): High-density multi-stage low-pass LC filter choke topologies smooth out high-frequency harmonics, optimizing throwing power profiles and preventing edge burnt-marks completely.
✓ Anti-Chloride & Sulfate Mist Isolation: Main drive boards feature complete multi-layer polyurethane lacquer seals, isolating sensitive logic chips from hostile wetting agents and aggressive trivalent acid vapors.
✓ Relentless Constant Current Deadlock: Closed-loop micro-stepped digital tracking blocks output drift mode variants down to ≤ ±0.1% thresholds, eliminating microscopic layer internal stress and skipping flaws.
Trivalent Chromium Cr3+ Ready
12V / 5000A Heavy Duty
Ultra-Low Ripple ≤1% RMS
JT-POWER 12V 5000A high frequency switching rectifier for trivalent chrome plating lines

Technical Specifications & Standard Operational Matrix (12V 5000A Base)

*Heavy industrial performance attributes verified under full-load continuous factory testing limits.

Deterministic Constant Current
Microsecond digital processor tracking anchors steady state precision within ≤ ±0.1% thresholds, ensuring perfect current density distributions on complex shapes without skip flaws.
Pure Smooth Wave Filtration
Forces high-frequency switching ripple factors strictly ≤ 1% RMS via centralized multi-stage LC low-pass choke paths, fully optimizing throwing power across high-density batch racks.
Polyurethane Anti-Acid Lacquer
All drive tracking networks feature thick military-grade polyurethane varnish coatings, completely locking delicate drive logic zones away from toxic organic additives or acid vapors.
Optically Isolated SCADA Hub
Natively compliant with international CE standards. Integrates an optically isolated terminal block supporting Modbus RTU (RS485) or standard Profinet loops for central master PLC layouts.
Technical Parameter Grid Standard Industrial Specification Engineering Compliance Bounds
Rated DC Amperage 5000 Amperes (Continuous Full-Load Output) Flexible parallel cabinet clustering supports setups up to 20,000A+
Rated DC Voltage 12 Volts DC Maximum Linear range tracking spanning smoothly from 0V up to full 12V head
Ripple Coefficient ≤ 1% RMS (Across Full Output Boundaries) Integrated heavy low-pass choke filtration topologies embedded
Regulation Precision ≤ ±0.1% Constant Current Limits Locks fine current density limits despite intensive anode spacing alterations
Input Main Line 3-Phase AC 380V / 415V / 480V, 50Hz/60Hz Universal plant mains adaptive connection with embedded soft-starts
International Standard CE Attestation of Conformity Fully compliant with official EU LVD (2014/35/EU) & EMC (2014/30/EU) loops
Chassis Protection IP54 Sealed Control Compartment Housing Isolates inner tracking logic cards from aggressive chemical vapor loops

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Alt text: Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout Equipment Structure Diagram: A clear understanding of the internal structure and functional components of the equipment.

Alt text: Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Custom Blueprinting Framework

Blueprint Adaptive

Built From Your Schematics & Plant Blueprints

Deploying a new industrial plant or restructuring existing bays? Simply forward us your mechanical blueprints or station layouts, and our engineering team will build custom enclosures to fit perfectly.

Patent No

Proprietary High-Frequency Transformer (Patent No: ZL 2019 2 1905918.5)

Incorporating our elite magnetic core matrix engineering, the system directs massive energies with near-zero leakage inductance, heavily reducing continuous cabinet heat dissipation boundaries.

Patent No

Integrated Thermal Dissipation Base (Patent No: ZL 2019 3 0679510.X)

Utilizing our patented copper heavy cooling substrate arrays, critical junction thermal vectors route outward instantly, expanding equipment lifetime margins under constant 24/7 industrial loads.

Isolated Bus

Fully Galvanic Sealed Controller Vault

Our core microprocessor systems are completely sealed away from plant vapors, blocking aggressive common-mode noise and cross-talk ground feedback errors natively.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting back to the primary industrial PLC master grid.


Industrial Site Deployment & Global Logistics

1. Split-Modular Secure Shipping
To ensure maritime safety and facilitate crane-lifting within space-limited facilities, our heavy-duty 8000A systems utilize split-modular enclosure configurations. Units are encapsulated within ISPM-15 compliant sea-worthy wooden cases, lined with industrial moisture-proof membranes to guard against high-salinity marine corrosion.
2. International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering global industrial sea-freight solutions, compliant with international trade codes including FOB port, CIF seaport, and full DDP factory-integration processes.
3. Engineering Audit & Commissioning Support
We provide complete engineering blueprints, circuit schematics, internal component lists, and busbar configuration data to facilitate facility audits. Turnkey remote commissioning support, custom reverse-polarity programming loops, and complete device tracking arrays are provided for factory scalability.
Alt text: Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇

12V 5000A Trivalent Chrome Plating Rectifier | Standard Eco-Friendly SMPS DC Power Supply

Engineered specifically for automated trivalent chromium (Cr3+) decorative and hard chrome alternative deposition draglines.

At JIETONG POWER (JT-POWER), we manufacture high-stability standardized rectifier systems meeting rigorous environmental compliance limits. This heavy-duty 5000A 12V Trivalent Chrome Plating Rectifier provides flat low-ripple wave outputs to totally eliminate bare-spotting or dark hazing, guaranteeing exquisite crystalline chrome deposition across massive workloads.

✓ Cr3+ Optimized Low Ripple (≤ 1% RMS): High-density multi-stage low-pass LC filter choke topologies smooth out high-frequency harmonics, optimizing throwing power profiles and preventing edge burnt-marks completely.
✓ Anti-Chloride & Sulfate Mist Isolation: Main drive boards feature complete multi-layer polyurethane lacquer seals, isolating sensitive logic chips from hostile wetting agents and aggressive trivalent acid vapors.
✓ Relentless Constant Current Deadlock: Closed-loop micro-stepped digital tracking blocks output drift mode variants down to ≤ ±0.1% thresholds, eliminating microscopic layer internal stress and skipping flaws.

Trivalent Chromium Cr3+ Ready
12V / 5000A Heavy Duty
Ultra-Low Ripple ≤1% RMS

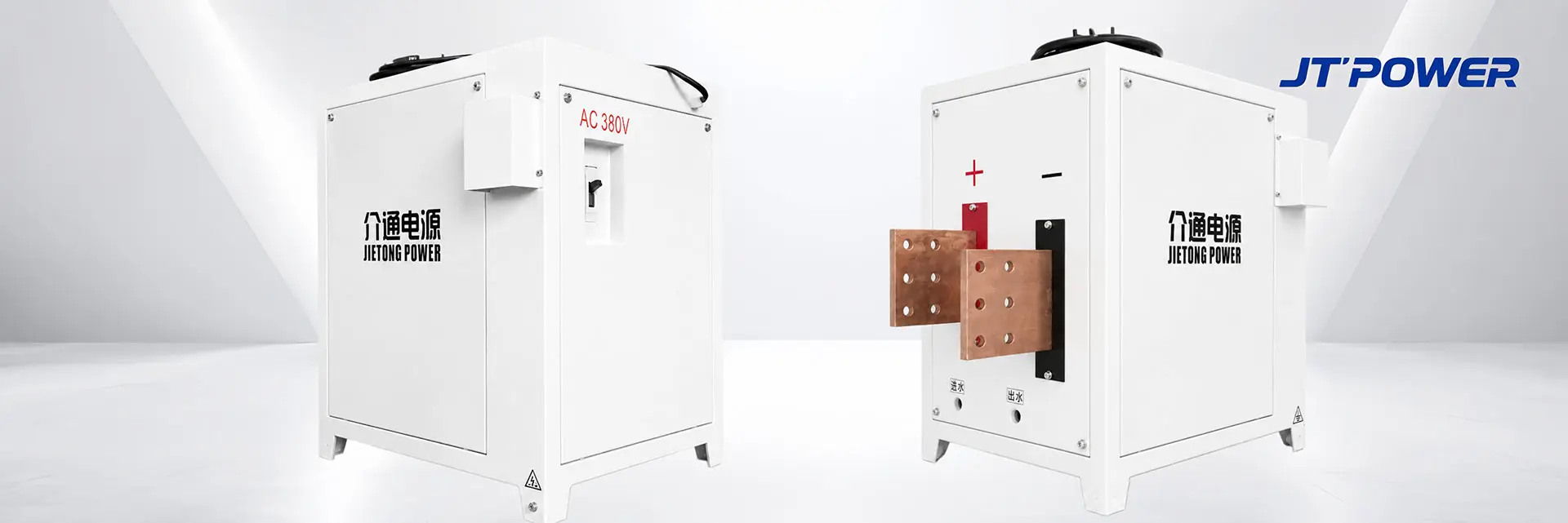

JT-POWER 12V 5000A high frequency switching rectifier for trivalent chrome plating lines

Technical Specifications & Standard Operational Matrix (12V 5000A Base)

*Heavy industrial performance attributes verified under full-load continuous factory testing limits.

Deterministic Constant Current
Microsecond digital processor tracking anchors steady state precision within ≤ ±0.1% thresholds, ensuring perfect current density distributions on complex shapes without skip flaws.

Pure Smooth Wave Filtration
Forces high-frequency switching ripple factors strictly ≤ 1% RMS via centralized multi-stage LC low-pass choke paths, fully optimizing throwing power across high-density batch racks.

Polyurethane Anti-Acid Lacquer
All drive tracking networks feature thick military-grade polyurethane varnish coatings, completely locking delicate drive logic zones away from toxic organic additives or acid vapors.

Optically Isolated SCADA Hub
Natively compliant with international CE standards. Integrates an optically isolated terminal block supporting Modbus RTU (RS485) or standard Profinet loops for central master PLC layouts.

Rated DC Amperage
5000 Amperes (Continuous Full-Load Output)
Flexible parallel cabinet clustering supports setups up to 20,000A+ for large processing cells.

Rated DC Voltage
12 Volts DC Maximum
Linear range tracking spanning smoothly from 0V up to full 12V headroom.

Ripple Coefficient
≤ 1% RMS (Across Full Output Boundaries)
Integrated heavy low-pass choke filtration topologies embedded to dampen harmonics.

Regulation Precision
≤ ±0.1% Constant Current Limits
Locks fine current density limits despite intensive anode spacing alterations natively.

Input Main Line
3-Phase AC 380V / 415V / 480V, 50Hz/60Hz
Universal plant mains adaptive connection with embedded pre-charging soft-starts.

International Certification
CE Attestation of Conformity
Fully compliant with official European LVD (2014/35/EU) & EMC (2014/30/EU) loops directives.

Chassis Protection
IP54 Sealed Control Compartment Housing
Isolates inner tracking logic cards completely from aggressive chemical vapor loops.

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

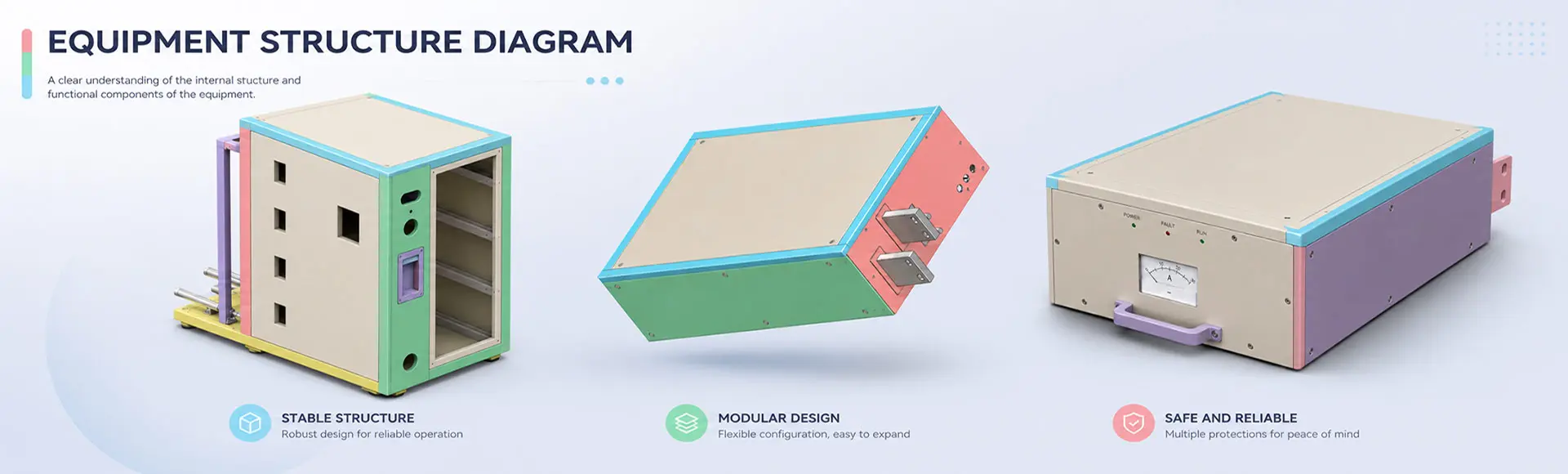

Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout

System Topology Outline: Cross-sectional mapping of internal structural routing layouts and optimized functional power cell integration.

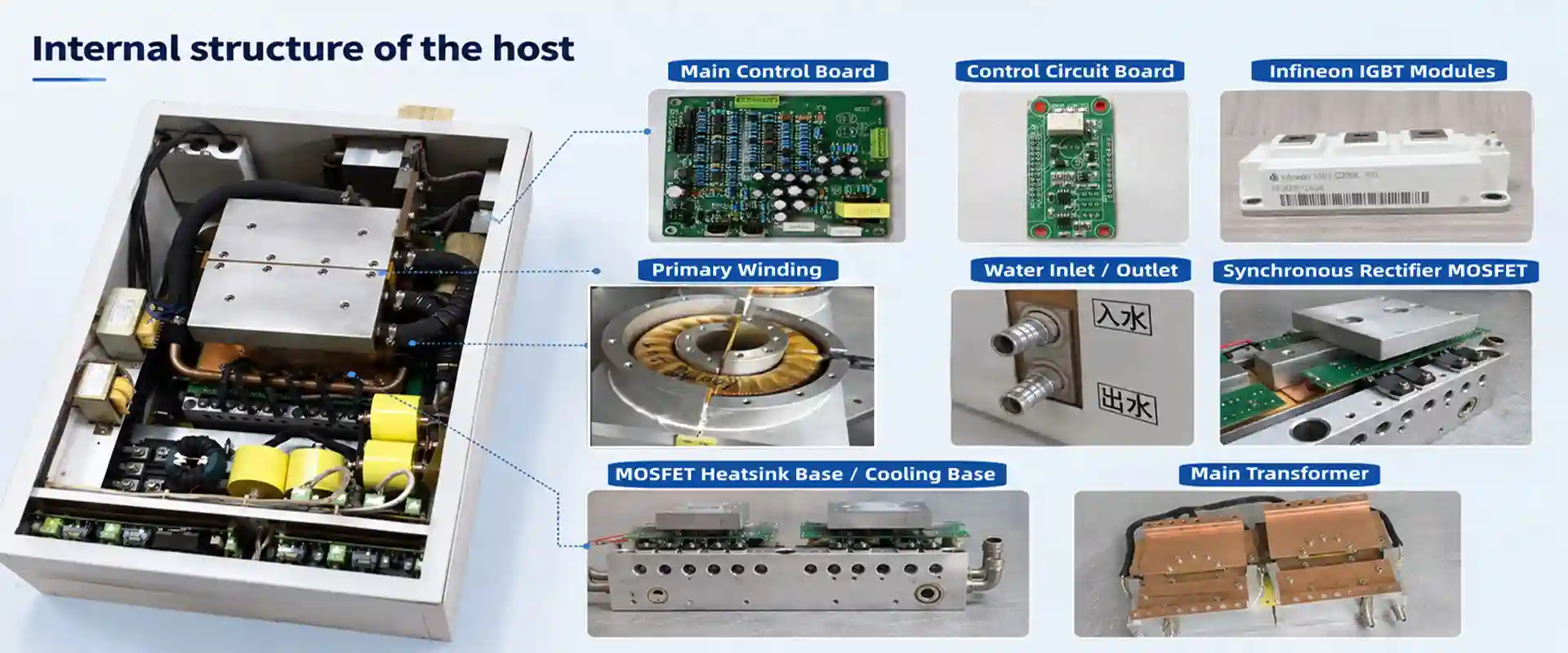

Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Blueprinting Matrix

Blueprint Adaptive
Built From Your Schematics & Plant Blueprints
Forward your mechanical blueprints or station layouts. Our engineering team will build custom enclosures to fit perfectly into your technical bays natively.
Patent No: ZL 2019 2 1905918.5
Proprietary High-Frequency Transformer Matrix
Incorporates elite magnetic core matrix engineering to direct massive energy with near-zero leakage inductance, heavily reducing heavy-power heat signatures.
Patent No: ZL 2019 3 0679510.X
Integrated Thermal Dissipation Copper Base
Patented copper heavy substrates route junction thermal vectors outward instantly, maximizing equipment system runtime parameters under constant continuous loads.
Isolated Bus
Fully Galvanic Sealed Controller Vault
Core microprocessor telemetry structures are entirely sealed away from plant vapors, blocking aggressive common-mode noise and ground loop feedback errors.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting.

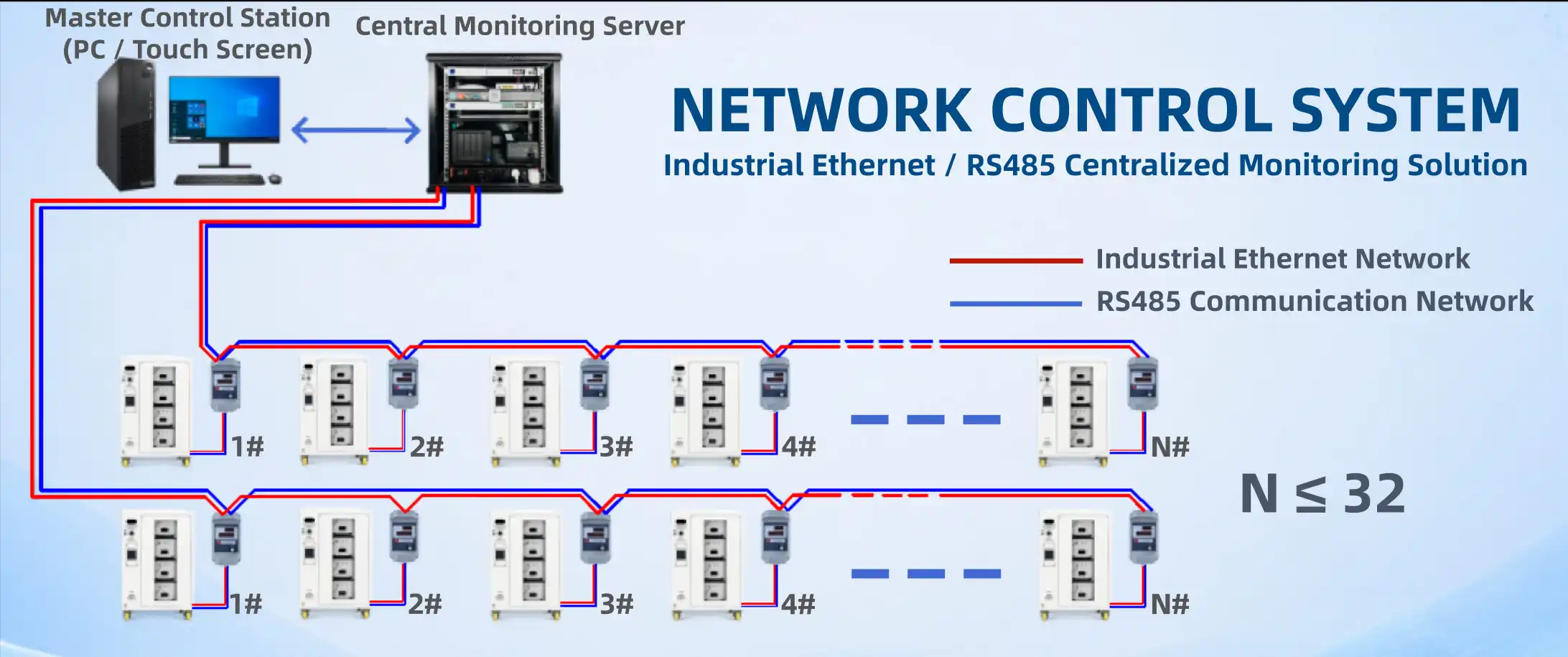

Industrial rectifier centralized monitoring network system diagram with Master control and central server

Network Control System: Optical isolation hub with Modbus/Industrial Ethernet telemetry solution for centralized monitoring up to N≤32 clusters natively.

Industrial Site Deployment & Global Logistics

Step 01
Split-Modular Secure Shipping
Heavy-duty systems utilize split-modular configurations for limited site access. Units are sealed in ISPM-15 compliant sea-worthy wooden cases with moisture membranes to prevent maritime corrosion.
Step 02
International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering FOB port, CIF seaport, and global DDP factory-integration protocols.
Step 03
Engineering Audit & Commissioning Support
Complete engineering blueprints, circuit schematics, and busbar layouts are supplied for facility audits. Turnkey remote commissioning loops and tracking arrays are fully provided.

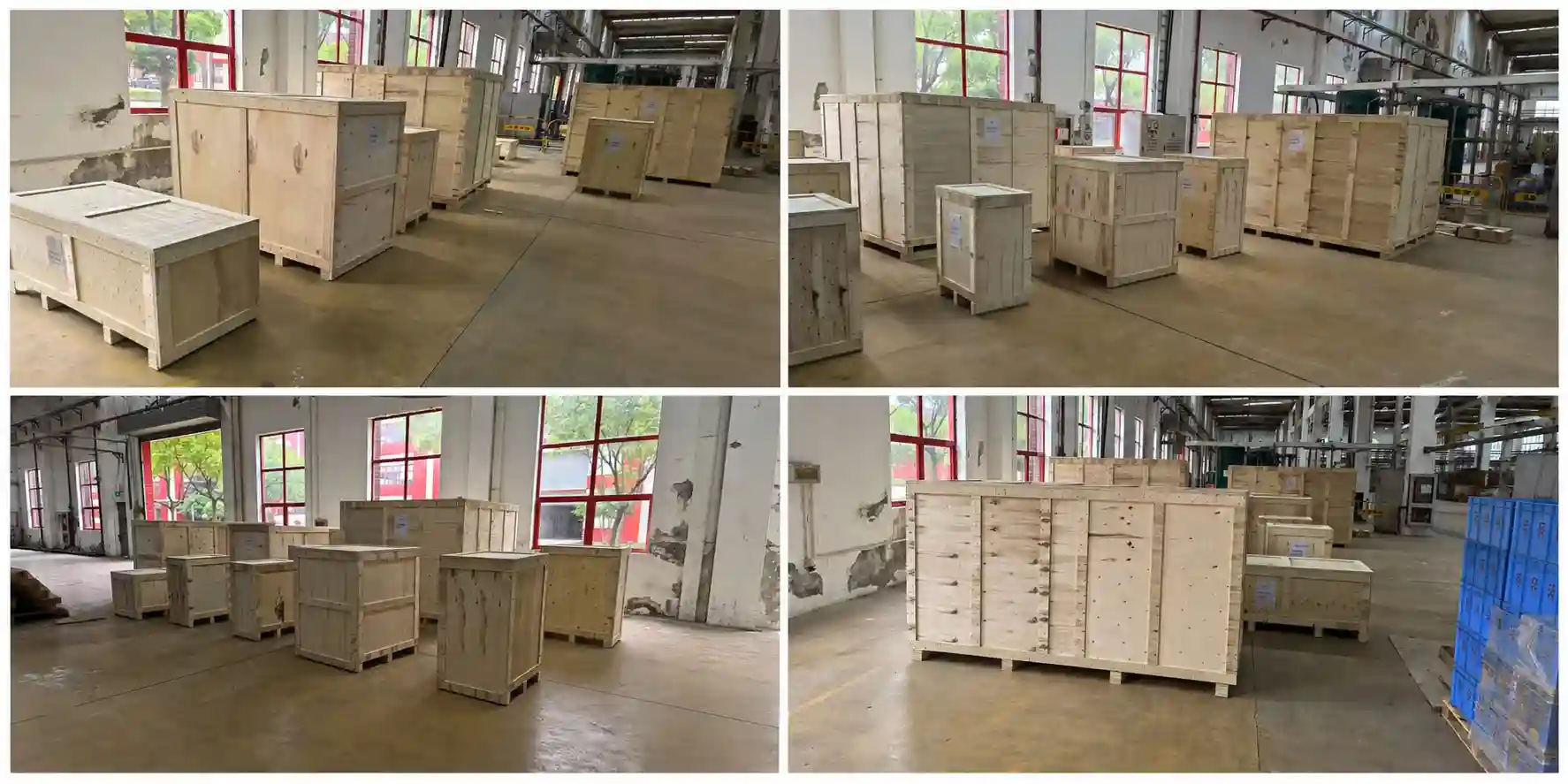

Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇
