100% Custom Anodizing & Electrophoresis Power Systems | Bespoke Heavy-Duty DC Rectifiers

Are standard rectifiers burning your aluminum extrusion profiles or failing to yield high throwing power on complex internal cavity surfaces?

At JIETONG POWER (JT-POWER), we understand that advanced architectural finishes and E-coat lines demand non-standard electrical profiles. We design Custom Anodizing Power Supply platforms engineered 100% from your workshop floorplans, integrating intelligent automation matrices to guarantee flawless coating thickness deposition.

✓ Programmable Ramp-Up Process Control: Features smart multi-stage programmable voltage curves (stepped and linear ramp presets) to fundamentally prevent initial over-current burning at hang contact points.
✓ High-Voltage Headroom for Hard Anodizing: Delivers robust power topologies customized up to 100V+ fields alongside continuous heavy currents, accelerating thickness deposition while minimizing bath thermal load.
✓ Maximized E-Coat Throwing Power: Ultra-precise constant voltage/current tracking stability holds ripple ≤ 1% RMS, yielding pristine, crack-free electrophoresis paint layers to reduce raw material loss.

📐 Programmable Ramp Curves
⚡ High Voltage Headroom
🛡️ Acid-Alkali Proof Vault

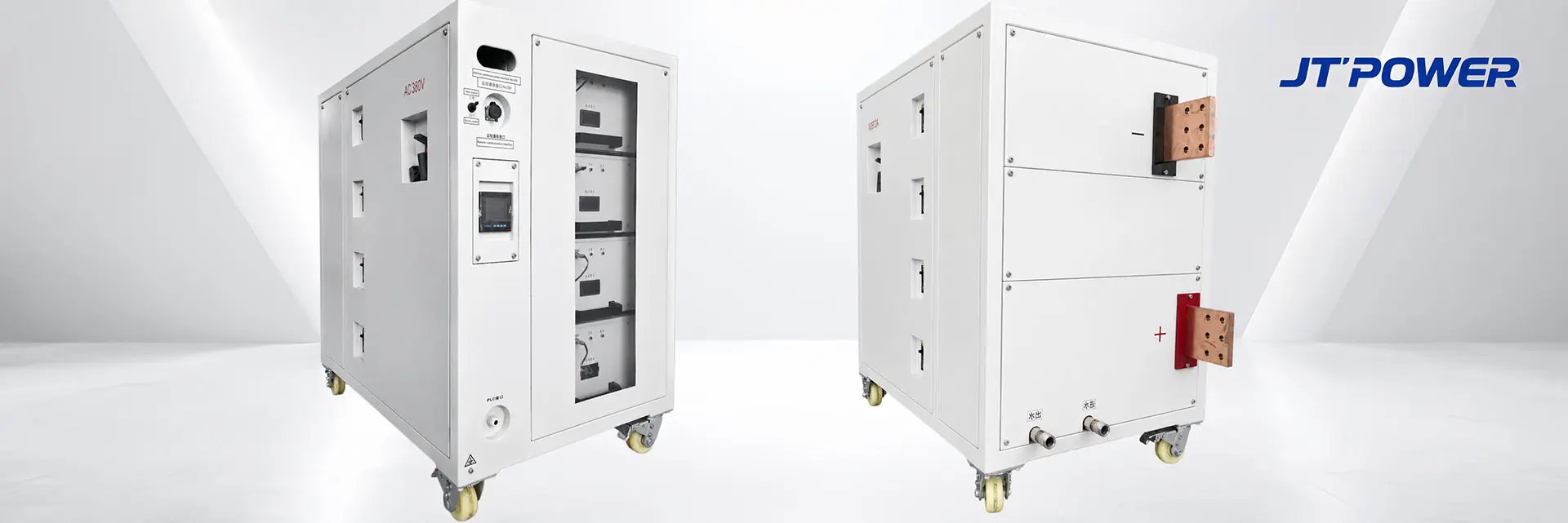

100% custom anodizing and electrophoresis power systems for industrial surface treatment lines - JT-POWER

Technical Specifications & Customization Scope (Surface Treatment Engineering)

*All electronic configurations, multi-segment recipe automation profiles, and cooling modes are 100% tailored based on your plant blueprints.

Bespoke Process Curve Automation
Ditch rigid analog limits. We build flexible, digital microchip controllers that support multiple custom electro-chemical profiles, allowing workers to execute multi-stage stepped voltage tracks with absolute recipe continuity.

Heavy-Duty Waveform Options
Engineered for precision output. Supports specialized high-frequency overlaid pulse anodizing options, minimizing internal coating stressors to create highly uniform micro-pores across technical aerospace substrates.

Optimized Electro-Coating Feed
Engineered via high-frequency switch-mode SMPS configurations to maintain steady ripple boundaries ≤ 1% RMS, dramatically advancing micro-level paint distribution while compressing overall power consumption.

Isolated Severe-Environment Enclosure
To survive intensive local acid/alkali mist environments, driving log cards are encapsulated inside isolated clear circuits enclosures or configured with fully sealed liquid heat exchange matrices natively.

Industrial Customization Matrix Standard Engineering Profile Custom Engineering Range / Compliance
Output Amperage Scale 500A — 10,000A Standard Base Scalable up to 50,000 Amperes+ via parallel module arrays
Output DC Voltage 15V / 18V / 24V DC Baseline Bespoke topologies customized from high-voltage 60V up to specialized 150V+ fields
Control Resolution ≤ ±1% Steady-State Precision High-precision ≤ ±0.5% configuration options with independent tracking
Telemetry Interface Modbus RTU / Isolated 4-20mA Board-level non-standard adaptions for native Profinet, Profibus, or EtherCAT systems
International Standard CE Attestation of Conformity Fully Compliant with official EU LVD (2014/35/EU) & EMC (2014/30/EU) parameters
Input Line Synchronization 3-Phase AC 380V/415V/480V ±10% Bespoke embedded soft-start buffer relays, holding PF ≥ 0.95 at peak load limits (50Hz/60Hz)
Cooling Method Forced Independent Air Cooling Bespoke profiles: high-velocity isolated forced air or total water cooling setups

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Alt text: Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout Equipment Structure Diagram: A clear understanding of the internal structure and functional components of the equipment.

Alt text: Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Custom Blueprinting Framework

Blueprint Adaptive

Built From Your Schematics & Plant Blueprints

Deploying a new industrial plant or restructuring existing bays? Simply forward us your mechanical blueprints or station layouts, and our engineering team will build custom enclosures to fit perfectly.

Patent No

Proprietary High-Frequency Transformer (Patent No: ZL 2019 2 1905918.5)

Incorporating our elite magnetic core matrix engineering, the system directs massive energies with near-zero leakage inductance, heavily reducing continuous cabinet heat dissipation boundaries.

Patent No

Integrated Thermal Dissipation Base (Patent No: ZL 2019 3 0679510.X)

Utilizing our patented copper heavy cooling substrate arrays, critical junction thermal vectors route outward instantly, expanding equipment lifetime margins under constant 24/7 industrial loads.

Isolated Bus

Fully Galvanic Sealed Controller Vault

Our core microprocessor systems are completely sealed away from plant vapors, blocking aggressive common-mode noise and cross-talk ground feedback errors natively.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting back to the primary industrial PLC master grid.


Industrial Site Deployment & Global Logistics

1. Split-Modular Secure Shipping
To ensure maritime safety and facilitate crane-lifting within space-limited facilities, our heavy-duty 8000A systems utilize split-modular enclosure configurations. Units are encapsulated within ISPM-15 compliant sea-worthy wooden cases, lined with industrial moisture-proof membranes to guard against high-salinity marine corrosion.
2. International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering global industrial sea-freight solutions, compliant with international trade codes including FOB port, CIF seaport, and full DDP factory-integration processes.
3. Engineering Audit & Commissioning Support
We provide complete engineering blueprints, circuit schematics, internal component lists, and busbar configuration data to facilitate facility audits. Turnkey remote commissioning support, custom reverse-polarity programming loops, and complete device tracking arrays are provided for factory scalability.
Alt text: Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇

100% Custom Anodizing & Electrophoresis Power Systems | Bespoke Heavy-Duty DC Rectifiers

Are standard rectifiers burning your aluminum extrusion profiles or failing to yield high throwing power on complex internal cavity surfaces?

At JIETONG POWER (JT-POWER), we understand that advanced architectural finishes and E-coat lines demand non-standard electrical profiles. We design Custom Anodizing Power Supply platforms engineered 100% from your workshop floorplans, integrating intelligent automation matrices to guarantee flawless coating thickness deposition.

✓ Programmable Ramp-Up Process Control: Features smart multi-stage programmable voltage curves (stepped and linear ramp presets) to fundamentally prevent initial over-current burning at hang contact points.
✓ High-Voltage Headroom for Hard Anodizing: Delivers robust power topologies customized up to 100V+ fields alongside continuous heavy currents, accelerating thickness deposition while minimizing bath thermal load.
✓ Maximized E-Coat Throwing Power: Ultra-precise constant voltage/current tracking stability holds ripple ≤ 1% RMS, yielding pristine, crack-free electrophoresis paint layers to reduce raw material loss.

📐 PROGRAMMABLE CURVES
⚡ HIGH VOLTAGE HEADROOM
🛡️ ACID-ALKALI VAULT
100% custom anodizing and electrophoresis power systems for industrial surface treatment lines - JT-POWER

Technical Specifications & Customization Scope (Surface Treatment Engineering)

*All electronic configurations, multi-segment recipe automation profiles, and cooling modes are 100% tailored based on your plant blueprints.

Bespoke Process Curve Automation
Ditch rigid analog limits. We build flexible, digital microchip controllers that support multiple custom electro-chemical profiles, allowing workers to execute multi-stage stepped voltage tracks with absolute recipe continuity.

Heavy-Duty Waveform Options
Engineered for precision output. Supports specialized high-frequency overlaid pulse anodizing options, minimizing internal coating stressors to create highly uniform micro-pores across technical aerospace substrates.

Optimized Electro-Coating Feed
Engineered via high-frequency switch-mode SMPS configurations to maintain steady ripple boundaries ≤ 1% RMS, dramatically advancing micro-level paint distribution while compressing overall power consumption.

Isolated Severe-Environment Enclosure
To survive intensive local acid/alkali mist environments, driving log cards are encapsulated inside isolated clear circuits enclosures or configured with fully sealed liquid heat exchange matrices natively.

Output Amperage Scale
500A — 10,000A Standard Base
Scalable up to 50,000 Amperes+ via parallel high-power cluster module arrays cleanly.

Output DC Voltage
15V / 18V / 24V DC Baseline
Bespoke topologies customized from high-voltage 60V up to specialized 150V+ fields safely.

Control Resolution
≤ ±1% Steady-State Precision
High-precision ≤ ±0.5% configuration choices incorporating independent execution tracking loops.

Telemetry Interface
Modbus RTU / Isolated 4-20mA
Board-level non-standard adaptions for native Profinet, Profibus, or EtherCAT control systems.

International Standard
CE Attestation of Conformity
Fully Compliant with official EU LVD (2014/35/EU) & EMC (2014/30/EU) parameter boundaries.

Input Line Synchronization
3-Phase AC 380V/415V/480V ±10%
Bespoke embedded soft-start buffer relays, holding PF ≥ 0.95 at peak load limits (50Hz/60Hz).

Cooling Method
Forced Independent Air Cooling
Bespoke profiles: high-velocity isolated forced air or total heavy liquid water cooling setups.

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout

System Topology Outline: Cross-sectional mapping of internal structural routing layouts and optimized functional power cell integration.

Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Blueprinting Matrix

Blueprint Adaptive
Built From Your Schematics & Plant Blueprints
Forward your mechanical blueprints or station layouts. Our engineering team will build custom enclosures to fit perfectly into your technical bays natively.
Patent No: ZL 2019 2 1905918.5
Proprietary High-Frequency Transformer Matrix
Incorporates elite magnetic core matrix engineering to direct massive energy with near-zero leakage inductance, heavily reducing heavy-power heat signatures.
Patent No: ZL 2019 3 0679510.X
Integrated Thermal Dissipation Copper Base
Patented copper heavy substrates route junction thermal vectors outward instantly, maximizing equipment system runtime parameters under constant continuous loads.
Isolated Bus
Fully Galvanic Sealed Controller Vault
Core microprocessor telemetry structures are entirely sealed away from plant vapors, blocking aggressive common-mode noise and ground loop feedback errors.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting.

Industrial rectifier centralized monitoring network system diagram with Master control and central server

Network Control System: Optical isolation hub with Modbus/Industrial Ethernet telemetry solution for centralized monitoring up to N≤32 clusters natively.

Industrial Site Deployment & Global Logistics

Step 01
Split-Modular Secure Shipping
Heavy-duty systems utilize split-modular configurations for limited site access. Units are sealed in ISPM-15 compliant sea-worthy wooden cases with moisture membranes to prevent maritime corrosion.
Step 02
International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering FOB port, CIF seaport, and global DDP factory-integration protocols.
Step 03
Engineering Audit & Commissioning Support
Complete engineering blueprints, circuit schematics, and busbar layouts are supplied for facility audits. Turnkey remote commissioning loops and tracking arrays are fully provided.
Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇
Back
JT-POWER 100% custom DC rectifier systems for anodizing and electrophoresis, featuring SiC topologies, Modbus RTU, and flexible cooling options for 10A to 10000A industrial processes.
Leave Message

Related Products

Direct Engineering Hotline
+86-138-0268-7354
Global Sales Support
info@jt-rectifier.com
Technical Support Matrix
info@jt-rectifier.com
Proceed to Official Inquiry Page

Response within 24 hours

Section 1: Application & Plating Process FAQ 🛰️
How do your custom topologies optimize oxide layer thickness in Type III hardcoat anodizing?
Hardcoat anodizing requires severe current density under close-to-freezing electrolyte conditions. We engineer custom voltage-current ramp paths that penetrate structural resistance boundaries smoothly, maximizing cell building speed and film micro-hardness for heavy-duty custom anodizing power systems.
Can these custom rectifiers handle the complex multi-stage voltage profiling required by advanced E-coating?
Yes, seamlessly. Precision electrophoretic deposition (E-coat/KTL) requires strict voltage adjustment during the initial micelle deposition phase to prevent film ruptures. Our custom firmware executes multi-step tracking configurations, delivering a highly adaptive custom electrophoresis power supply.
How do your designs counteract orange peel and pinhole defects across massive e-coat tanks?
Instant current spikes during part submergence cause heavy localized film stress. We integrate microsecond constant-current and constant-voltage crossover algorithms that ensure uniform micelle migration, acting as premium low ripple e-coating rectifiers for high-volume automotive tracks.
What operational duty cycle is guaranteed for your tailormade anodizing lines?
Every custom power grid we assemble is rated for continuous 100% full-load operation under severe, non-stop industrial shift cycles, ensuring total hardware endurance as robust continuous duty anodizing rectifiers.
Do your custom builds provide necessary tracking telemetry to satisfy strict aerospace and automotive audits?
Absolutely. We embed precision tracking nodes and deep internal registers that store ultra-accurate calibration data, matching the reporting frameworks required by Nadcap compliant industrial rectifiers.
Section 2: Hardware Architecture & Enclosure FAQ 🔧
What cooling technologies do you offer to protect custom rectifiers from aggressive acid mist and solvent fumes?
Depending on your plant layout, we build either IP54 hermetically sealed water-cooled configurations or isolated-duct air-cooled assemblies, providing maximum component shielding as a dedicated anti-corrosion industrial power supply.
What are the hardware and efficiency advantages of migrating from legacy SCRs to Silicon Carbide topology?
By adapting high-frequency Silicon Carbide (SiC) MOSFET switches running at 100kHz, our custom assemblies push conversion efficiency past 93%. This cuts energy waste and drastically drops cabinet heat generation, defining a true high efficiency Silicon Carbide rectifiers block.
How are the heavy-current output busbars engineered to prevent thermal hotspots over long shifts?
We custom-machine oversized, high-purity T2 red copper busbars finished with extensive silver plating. This eliminates contact resistance boundaries and locks full-load operating temperature delta within ΔT≤30°C, a cornerstone standard of our heavy duty copper busbar rectifiers.
What transformer and magnetic topologies drive your high-frequency custom units?
We employ heavy-duty EE130 nanocrystalline cores combined with multi-strand Litz wire windings to eliminate eddy current bottlenecks and skin effect losses, creating a highly efficient high frequency transformer switching power supply block.
Can your custom hardware design accommodate an N+1 modular redundancy layout?
Yes. For high-priority production tracks, we deploy expandable modular designs where independent sub-modules hot-swap seamlessly, providing the extreme uptime of modular high power switching rectifiers.
Section 3: Digital Controls & Automation FAQ 🔬
Which hardware microcontroller architectures govern your custom control cards?
The computational core is driven by high-performance industrial chips, achieving zero phase-shift jitter and completely wiping out thermal drift seen in legacy microcontroller control electroplating rectifiers cards.
How do your custom systems communicate with centralized factory PLC and SCADA networks?
We map internal control states to your specific fieldbus choice, whether it demands isolated RS485 Modbus-RTU, Profinet, or Ethernet interfaces for seamless Profinet programmable industrial rectifiers integration.
What level of digital fine-tuning resolution do your custom HMIs support?
We calibrate our systems to match your operational granularity, offering precision adjustments down to 0.01V and 1A on our specialized precision digital industrial rectifiers interface networks.
How fast do your custom short-circuit protection matrices shield the tank from arcing?
The digital control card reads load deviations instantly, shutting down driving pulses in under 10 microseconds to establish a premium safety baseline for fast response protective rectifiers.
Can you embed specialized recipe storage and automated timeline ramp logic into the firmware?
Yes, our firmware allows engineers to save and call up complex multi-step voltage, current, and time curves, functioning as high-end programmable recipe electroplating power supplies for diverse automated coating workflows.
