Standard 250V 3000A Heavy-Duty EPD Rectifier | Industrial Model

Engineered for heavy industrial profile coating, large structural steel framing arrays, and automated high-capacity aluminum finishing lines.

This standard 250V 3000A Heavy-Duty EPD Rectifier System delivers relentless multi-step recipe control, combining premium high-voltage power electronics with centralized telemetry scaling to maintain unyielding 24/7 fleet uptime limits.

✓ Pre-Charging Soft-Start Interlock: High-power turn-ons can stress infrastructure grids severely. Our standard pre-charging soft-start matrix suppresses massive inrush lines seamlessly, protecting nearby instrumentation tracks completely.
✓ Flexible Power Framework Configuration: Available configurations built with high-durability German Infineon IGBT module configurations or premium low-loss high-frequency Silicon Carbide (SiC) MOSFET platforms.
✓ High-Capacity Dissipation Options: Features optimized high-velocity forced vertical air-ducted paths to bypass logic cards, or 100% hermetically sealed liquid-to-water heat exchangers for heavy sulfuric acid environments.
⚡ Safe Soft-Start System
📐 Selectable IGBT / SiC
💧 Air / Water Cooling Options

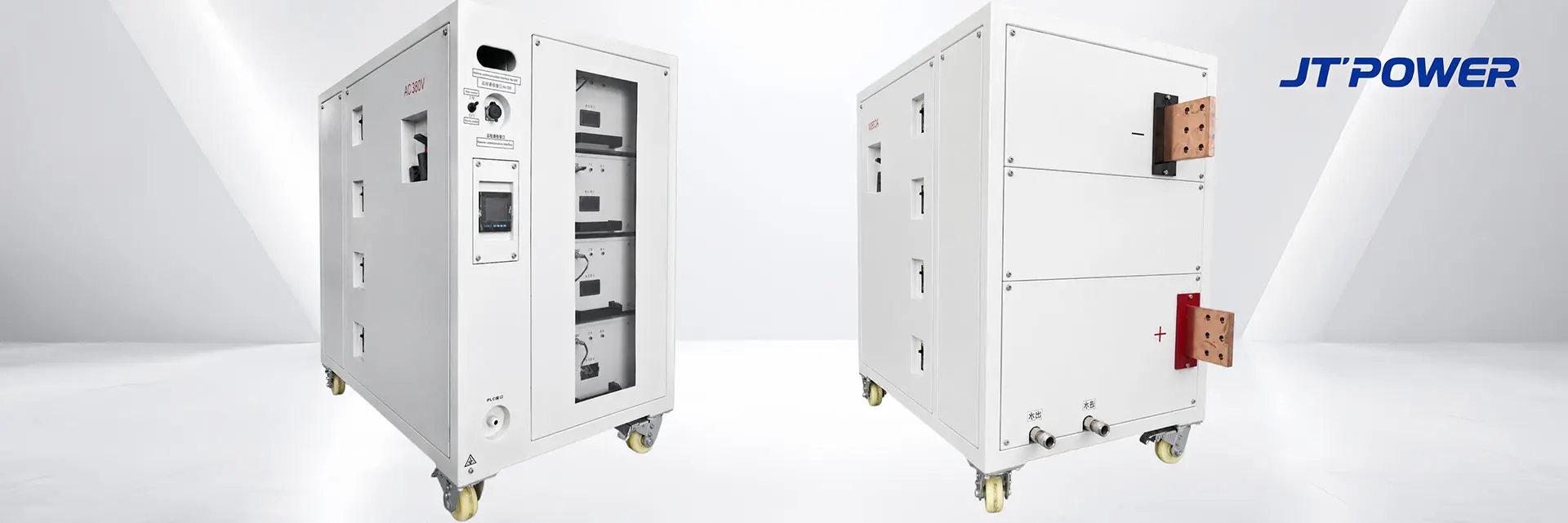

JT-POWER 250V 3000A heavy-duty EPD rectifier for industrial electrophoretic deposition and e-coating lines

Technical Specifications & Standard Parametric Matrix (250V 3000A)

*Mature mass-produced industrial configurations optimized for 24/7 continuous industrial processing lines.

Grid Buffer Soft-Start
The integrated pre-charging network automatically throttles startup inrush transients seamlessly, protecting factory sub-stations from severe voltage dips.
Film Thickness Lock
Microprocessor digital logic gates track active chemical outputs up to a precise ≤ ±0.1% control stability, achieving absolute layer uniformity across complex matrices.
Advanced Semiconductor Core
Incorporates standard high-voltage German Infineon IGBT brick arrays or premium energy-saving Silicon Carbide (SiC) MOSFET switching topologies seamlessly.
Optically Isolated SCADA Hub
The native RS485 Modbus RTU interface layers are completely isolated via high-speed digital optocouplers, blocking common-mode electrical noise loops natively.
Standard Parameters Technical Rated Values Engineering Parametric Scope
Rated Output Amperage Scope 0 — 3000 Amperes (3KA Full Output) Continuous heavy-duty output loading continuous line parameters
Rated Output Voltage Scope 0 — 250 Volts DC High-Voltage Window High-precision micro-stepped operational headroom limits
Inrush Surge Suppression Intelligent Soft-Start System Enabled 0 — 10 seconds programmable linear ramp to shield local grids
International Certification CE Attestation of Conformity Fully Compliant with EU LVD (2014/35/EU) & EMC (2014/30/EU)
Regulation Tracking Precision ≤ ±0.1% Constant Current / Constant Voltage Microprocessor closed-loop automatic monitoring configurations
Core Switching Semiconductors Selectable Heavy IGBT / Discrete SiC MOSFET High-Frequency Switch-Mode (SMPS) power module topologies
Power Factor Efficiency (COSΦ) ≥ 0.95 (At Full Rated Load Limits) High conversion tech minimizing reactive loss on plant grids
Thermal Cooling Framework Forced Air Cooling / Sealed Water Heat Exchanging Dual certified engineering paths matching cleanroom layouts

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Alt text: Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout Equipment Structure Diagram: A clear understanding of the internal structure and functional components of the equipment.

Alt text: Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Custom Blueprinting Framework

Blueprint Adaptive

Built From Your Schematics & Plant Blueprints

Deploying a new industrial plant or restructuring existing bays? Simply forward us your mechanical blueprints or station layouts, and our engineering team will build custom enclosures to fit perfectly.

Patent No

Proprietary High-Frequency Transformer (Patent No: ZL 2019 2 1905918.5)

Incorporating our elite magnetic core matrix engineering, the system directs massive energies with near-zero leakage inductance, heavily reducing continuous cabinet heat dissipation boundaries.

Patent No

Integrated Thermal Dissipation Base (Patent No: ZL 2019 3 0679510.X)

Utilizing our patented copper heavy cooling substrate arrays, critical junction thermal vectors route outward instantly, expanding equipment lifetime margins under constant 24/7 industrial loads.

Isolated Bus

Fully Galvanic Sealed Controller Vault

Our core microprocessor systems are completely sealed away from plant vapors, blocking aggressive common-mode noise and cross-talk ground feedback errors natively.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting back to the primary industrial PLC master grid.


Industrial Site Deployment & Global Logistics

1. Split-Modular Secure Shipping
To ensure maritime safety and facilitate crane-lifting within space-limited facilities, our heavy-duty 8000A systems utilize split-modular enclosure configurations. Units are encapsulated within ISPM-15 compliant sea-worthy wooden cases, lined with industrial moisture-proof membranes to guard against high-salinity marine corrosion.
2. International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering global industrial sea-freight solutions, compliant with international trade codes including FOB port, CIF seaport, and full DDP factory-integration processes.
3. Engineering Audit & Commissioning Support
We provide complete engineering blueprints, circuit schematics, internal component lists, and busbar configuration data to facilitate facility audits. Turnkey remote commissioning support, custom reverse-polarity programming loops, and complete device tracking arrays are provided for factory scalability.
Alt text: Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇

Standard 250V 3000A Heavy-Duty EPD Rectifier | Industrial Model

Engineered for heavy industrial profile coating, large structural steel framing arrays, and automated high-capacity aluminum finishing lines.

This standard 250V 3000A Heavy-Duty EPD Rectifier System delivers relentless multi-step recipe control, combining premium high-voltage power electronics with centralized telemetry scaling to maintain unyielding 24/7 fleet uptime limits.

✓ Pre-Charging Soft-Start Interlock: High-power turn-ons can stress infrastructure grids severely. Our standard pre-charging soft-start matrix suppresses massive inrush lines seamlessly, protecting nearby instrumentation tracks completely.
✓ Flexible Power Framework Configuration: Available configurations built with high-durability German Infineon IGBT module configurations or premium low-loss high-frequency Silicon Carbide (SiC) MOSFET platforms.
✓ High-Capacity Dissipation Options: Features optimized high-velocity forced vertical air-ducted paths to bypass logic cards, or 100% hermetically sealed liquid-to-water heat exchangers for heavy sulfuric acid environments.

⚡ SAFE SOFT-START SYSTEM
📐 SELECTABLE IGBT / SIC
💧 AIR / WATER COOLING
JT-POWER 250V 3000A heavy-duty EPD rectifier for industrial electrophoretic deposition and e-coating lines

Technical Specifications & Standard Parametric Matrix (250V 3000A)

*Mature mass-produced industrial configurations optimized for 24/7 continuous industrial processing lines.

Grid Buffer Soft-Start
The integrated pre-charging network automatically throttles startup inrush transients seamlessly, protecting factory sub-stations from severe voltage dips.

Film Thickness Lock
Microprocessor digital logic gates track active chemical outputs up to a precise ≤ ±0.1% control stability, achieving absolute layer uniformity across complex matrices.

Advanced Semiconductor Core
Incorporates standard high-voltage German Infineon IGBT brick arrays or premium energy-saving Silicon Carbide (SiC) MOSFET switching topologies seamlessly.

Optically Isolated SCADA Hub
The native RS485 Modbus RTU interface layers are completely isolated via high-speed digital optocouplers, blocking common-mode electrical noise loops natively.

Rated Output Amperage Scope
0 — 3000 Amperes (3KA Full Output)
Continuous heavy-duty output loading continuous line parameters safely.

Rated Output Voltage Scope
0 — 250 Volts DC High-Voltage Window
High-precision micro-stepped operational headroom limits dynamic match.

Inrush Surge Suppression
Intelligent Soft-Start System Enabled
0 — 10 seconds programmable linear ramp to shield local plant grids.

International Certification
CE Attestation of Conformity
Fully Compliant with rigorous official EU LVD (2014/35/EU) & EMC (2014/30/EU) specifications.

Regulation Tracking Precision
≤ ±0.1% Constant Current / Voltage
Microprocessor closed-loop automatic monitoring and telemetry loops architectures natively.

Core Switching Semiconductors
Selectable Heavy IGBT / Discrete SiC MOSFET
High-Frequency Switch-Mode (SMPS) power semiconductor module topologies.

Power Factor Efficiency (COSΦ)
≥ 0.95 (At Full Rated Load Limits)
High conversion technology infrastructure minimizing reactive loss loops on local plant grids cleanly.

Thermal Framework
Forced Air Cooling / Water Heat Exchanging
Dual certified engineering paths matching factory cleanroom tank layouts natively.

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout

System Topology Outline: Cross-sectional mapping of internal structural routing layouts and optimized functional power cell integration.

Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Blueprinting Matrix

Blueprint Adaptive
Built From Your Schematics & Plant Blueprints
Forward your mechanical blueprints or station layouts. Our engineering team will build custom enclosures to fit perfectly into your technical bays natively.
Patent No: ZL 2019 2 1905918.5
Proprietary High-Frequency Transformer Matrix
Incorporates elite magnetic core matrix engineering to direct massive energy with near-zero leakage inductance, heavily reducing heavy-power heat signatures.
Patent No: ZL 2019 3 0679510.X
Integrated Thermal Dissipation Copper Base
Patented copper heavy substrates route junction thermal vectors outward instantly, maximizing equipment system runtime parameters under constant continuous loads.
Isolated Bus
Fully Galvanic Sealed Controller Vault
Core microprocessor telemetry structures are entirely sealed away from plant vapors, blocking aggressive common-mode noise and ground loop feedback errors.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting.

Industrial rectifier centralized monitoring network system diagram with Master control and central server

Network Control System: Optical isolation hub with Modbus/Industrial Ethernet telemetry solution for centralized monitoring up to N≤32 clusters natively.

Industrial Site Deployment & Global Logistics

Step 01
Split-Modular Secure Shipping
Heavy-duty systems utilize split-modular configurations for limited site access. Units are sealed in ISPM-15 compliant sea-worthy wooden cases with moisture membranes to prevent maritime corrosion.
Step 02
International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering FOB port, CIF seaport, and global DDP factory-integration protocols.
Step 03
Engineering Audit & Commissioning Support
Complete engineering blueprints, circuit schematics, and busbar layouts are supplied for facility audits. Turnkey remote commissioning loops and tracking arrays are fully provided.
Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇
Back
JT-POWER 250V 3000A heavy-duty EPD rectifier system for electrophoretic deposition, featuring multi-module parallel scaling, smart energy-saving control, and SiC power topologies.
Leave Message

Related Products

Direct Engineering Hotline
+86-138-0268-7354
Global Sales Support
info@jt-rectifier.com
Technical Support Matrix
info@jt-rectifier.com
Proceed to Official Inquiry Page

Response within 24 hours

Section 1: Application & Plating Process FAQ 🛰️
How does this 250V 3000A rectifier optimize film thickness uniformity in heavy Electrophoretic Deposition (EPD)?
Heavy-duty electrophoretic deposition (e-coat/KTL) requires a substantial voltage ceiling to overcome the rising electrical resistance of the accumulating organic paint film. Our system delivers ultra-precise high-voltage step regulation to secure a perfectly uniform, pinhole-free coating layer across massive automotive bodies and structural steel, setting the standard for heavy-duty EPD rectifier systems.
Can this 250V power supply handle the sudden current surges when massive parts submerge into the EPD tank?
Yes, absolutely. The instant a large grounded workpiece enters the charging zone, resistance collapses, creating a massive current surge threat. The integrated microsecond feedback loop dynamically cross-regulates constant current and constant voltage thresholds, functioning as a highly resilient industrial e-coat DC power supply terminal.
What current ripple threshold does this unit guarantee, and why is it critical for paint appearance?
The current ripple is strictly locked at ≤1% RMS at a full 250V 3000A output. Excessive ripple disrupts the linear migration of charged paint micelles, causing surface micro-roughness, orange peel defects, or dull coatings, making our ultra-flat filtration essential for low ripple high-voltage rectifiers.
Is this 750kW custom rectifier rated for continuous 24/7 automotive-grade multi-shift lines?
Engineered for a 100% continuous duty cycle, the power assembly utilizes oversized thermal safety margins to deliver maximum rated current under non-stop workshop conditions, establishing itself as a robust continuous duty industrial rectifier framework.
Does this heavy-duty EPD rectifier meet strict automotive and aerospace quality audits?
Yes, through its integrated precision sensor loops and microsecond data logging capabilities, all electrical telemetry is accurately tracked, easily satisfying the strict reporting and calibration monitoring mandates expected from high-capacity Nadcap compliant industrial rectifiers.
Section 2: Hardware Architecture & Enclosure FAQ 🔧
What are the hardware and efficiency benefits of utilizing Silicon Carbide (SiC) switches in a 750kW EPD rig?
By adapting high-frequency Silicon Carbide (SiC) MOSFET switches operating at 100kHz, the unit pushes conversion efficiency past 93%. This minimizes energy overhead and drastically reduces internal heat generation compared to legacy systems, defining a true high efficiency Silicon Carbide rectifiers architecture.
Why is a pure water-cooled or isolated air-duct enclosure preferred for electrophoretic coating bays?
EPD lines generate intense, aggressive chemical humidity and solvent vapors. The chassis isolates sensitive electronics behind an IP54-rated hermetic barrier with dedicated cooling paths, protecting internal modules better than standard fans as a dedicated heavy-duty anti-corrosion EPD rectifier.
How do the oversized copper busbars manage a continuous 3000A current safely at 250V?
We incorporate massive, high-purity T2 red copper busbars finished with extensive silver plating. This restricts contact resistance and locks full-load operating temperature delta within ΔT≤30°C, a cornerstone standard of our heavy duty copper busbar rectifiers.
What transformer core technology manages the continuous high-voltage power output blocks?
The transformer utilizes advanced nanocrystalline EE130 cores wound with multi-strand Litz wire. This configuration eliminates skin effect bottlenecks and core saturation common during continuous switching in this high frequency transformer switching power supply block.
Can this 750kW system incorporate an N+1 modular redundancy layout to ensure zero downtime?
Yes. The 3000A maximum output can be shared across parallelized modular blocks. If a single module encounters a fault, the remaining blocks adjust automatically to sustain continuous production, delivering true modular high power switching rectifiers reliability.
Section 3: Digital Controls & Automation FAQ 🔬
Which digital communication protocols are supported for automated e-coat PLC integration?
The control board natively features isolated RS485 Modbus-RTU links and can be upgraded to Profinet or Ethernet nodes, allowing lag-free integration into central Profinet programmable industrial rectifiers networks.
What hardware processor architecture drives the high-speed loop regulation?
The computational core is governed by a dedicated high-speed industrial microcontroller chip, eliminating phase-shift jitter and completely avoiding the thermal component drift found in legacy microcontroller control electroplating rectifiers cards.
How fast does the short-circuit protection matrix react to accidental tank shorts or arcing?
The digital control loop senses load deviations instantly and executes an electronic pulse shutdown in under 10 microseconds upon detecting dead shorts or tank faults, delivering elite safety standard in fast response pulse switching rectifiers.
Is the rectifier ready for complete factory-wide centralized SCADA tracking and logging?
Yes. All electrical parameters, historical error logs, and runtime curves are completely mapped to accessible internal registers, optimizing data syncing across automated SCADA compatible smart rectifiers architectures.
Will powering up a 750kW EPD rectifier cause dangerous inrush voltage drops in the facility grid?
Not at all. The automated digital control system executes a smooth, programmable soft-start sequence that completely limits initial current inrush spikes, fulfilling the grid protection promises of our soft start high current rectifiers.
