Standard 30V 300A High-Frequency E-Coating Rectifier | Low-Ripple

Engineered for precision electrophoretic deposition, hardware finishing lines, laboratory R&D processing, and high-purity coating tracks.

This standard 30V 300A E-Coating Power Supply integrates advanced high-frequency phase-shift full-bridge configurations driven by heavy-duty IGBT matrices or discrete Silicon Carbide (SiC) MOSFET elements, delivering flawless thickness uniformity while isolating electronics from aggressive vapor infiltration.

✓ Microstepping Voltage Ramp Automation: Programmed logic tracks step up execution potentials smoothly upon initial tank entry, preventing current crowding anomalies and edge burnt-marks.
✓ Pure Smooth Wave Pattern (≤ 0.5% RMS): High-frequency filtration structures smooth switching harmonic distributions, eliminating localized coating internal stress and orange peel surface defects.
✓ Standard Isolated Chassis Architecture: Heavy-duty sealed enclosure blocks acid-base ambient gas tracks, guaranteeing absolute component integrity during constant 24/7 continuous duty cycles.
⚙️ Accuracy ≤±0.1% Full Scale
⚡ 30V / 300A Standard Model
📦 IP54 Sealed Enclosure

Technical Specifications & Core Performance Matrix (30V 300A)

*Standardized high-frequency parametric frameworks built for rigorous industrial station operations.

Deterministic Regulation Tracking
High-resolution closed-loop control microprocessors achieve an elite regulation stabilization of ≤ ±0.1% Full Scale, guaranteeing flawless tracking curves down to micro-ampere boundaries.
Pure Smooth Wave Matrix
Integrated multi-stage LC filtering channels effectively dampen high-frequency switching noise down to ≤ 0.5% RMS, securing optimum cathode film deposition boundaries.
Advanced Semiconductor Core
Driven by standard high-frequency industrial IGBT module networks or discrete Silicon Carbide (SiC) MOSFET elements, achieving exceptional dynamic response parameters.
Galvanically Isolated Gateway
Equipped with native RS485 Modbus RTU telemetry node setups, completely isolated via digital optocouplers to block common-mode noise feedbacks loops seamlessly.
Technical Parameters Standard Configuration Engineering Compliance Range
Output DC Current Scope 0 — 300 Amperes (Fully Adjustable) High-resolution step micro-current scaling matching
Output DC Voltage Scope 0 — 30 Volts (Constant Voltage / Current) Precision closed-loop microprocessor automatic switching
Inrush Surge Protection Intelligent Soft-Start Matrix Enabled 0 — 10 seconds programmable software ramp timelines
International Certification CE Attestation of Conformity Fully Compliant with EU LVD (2014/35/EU) & EMC (2014/30/EU)
Steady State Accuracy ≤ ±0.1% Full Scale Calibrated tracking thresholds preventing current crowding
Ripple Coefficient (RMS) ≤ 0.5% at Full Rated Load Multi-stage low-pass filtering limits switching noise
AC Input Windows 3-Phase 380V / 415V / 480V AC ±10% Adaptive connection matching global factory mains layouts
Core Semiconductor Topology Selectable Heavy IGBT / Discrete SiC MOSFET High-frequency switch-mode execution power module matrix
Thermal Framework Forced Air Cooling (Isolated Ducts) Hermetically sealed water-to-liquid loop options ready

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Alt text: Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout Equipment Structure Diagram: A clear understanding of the internal structure and functional components of the equipment.

Alt text: Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Custom Blueprinting Framework

Blueprint Adaptive

Built From Your Schematics & Plant Blueprints

Deploying a new industrial plant or restructuring existing bays? Simply forward us your mechanical blueprints or station layouts, and our engineering team will build custom enclosures to fit perfectly.

Patent No

Proprietary High-Frequency Transformer (Patent No: ZL 2019 2 1905918.5)

Incorporating our elite magnetic core matrix engineering, the system directs massive energies with near-zero leakage inductance, heavily reducing continuous cabinet heat dissipation boundaries.

Patent No

Integrated Thermal Dissipation Base (Patent No: ZL 2019 3 0679510.X)

Utilizing our patented copper heavy cooling substrate arrays, critical junction thermal vectors route outward instantly, expanding equipment lifetime margins under constant 24/7 industrial loads.

Isolated Bus

Fully Galvanic Sealed Controller Vault

Our core microprocessor systems are completely sealed away from plant vapors, blocking aggressive common-mode noise and cross-talk ground feedback errors natively.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting back to the primary industrial PLC master grid.


Industrial Site Deployment & Global Logistics

1. Split-Modular Secure Shipping
To ensure maritime safety and facilitate crane-lifting within space-limited facilities, our heavy-duty 8000A systems utilize split-modular enclosure configurations. Units are encapsulated within ISPM-15 compliant sea-worthy wooden cases, lined with industrial moisture-proof membranes to guard against high-salinity marine corrosion.
2. International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering global industrial sea-freight solutions, compliant with international trade codes including FOB port, CIF seaport, and full DDP factory-integration processes.
3. Engineering Audit & Commissioning Support
We provide complete engineering blueprints, circuit schematics, internal component lists, and busbar configuration data to facilitate facility audits. Turnkey remote commissioning support, custom reverse-polarity programming loops, and complete device tracking arrays are provided for factory scalability.
Alt text: Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇

Standard 30V 300A High-Frequency E-Coating Rectifier | Low-Ripple

Engineered for precision electrophoretic deposition, hardware finishing lines, laboratory R&D processing, and high-purity coating tracks.

This standard 30V 300A E-Coating Power Supply integrates advanced high-frequency phase-shift full-bridge configurations driven by heavy-duty IGBT matrices or discrete Silicon Carbide (SiC) MOSFET elements, delivering flawless thickness uniformity while isolating electronics from aggressive vapor infiltration.

✓ Microstepping Voltage Ramp Automation: Programmed logic tracks step up execution potentials smoothly upon initial tank entry, preventing current crowding anomalies and edge burnt-marks.
✓ Pure Smooth Wave Pattern (≤ 0.5% RMS): High-frequency filtration structures smooth switching harmonic distributions, eliminating localized coating internal stress and orange peel surface defects.
✓ Standard Isolated Chassis Architecture: Heavy-duty sealed enclosure blocks acid-base ambient gas tracks, guaranteeing absolute component integrity during constant 24/7 continuous duty cycles.

⚙️ ACCURACY ≤±0.1% FS
⚡ 30V / 300A STANDARD
📦 IP54 SEALED BOX
JT-POWER 30V 300A high-precision switching rectifier for electrophoretic deposition and e-coating lines

Technical Specifications & Core Performance Matrix (30V 300A)

*Standardized high-frequency parametric frameworks built for rigorous industrial station operations.

Deterministic Regulation Tracking
High-resolution closed-loop control microprocessors achieve an elite regulation stabilization of ≤ ±0.1% Full Scale, guaranteeing flawless tracking curves down to micro-ampere boundaries.

Pure Smooth Wave Matrix
Integrated multi-stage LC filtering channels effectively dampen high-frequency switching noise down to ≤ 0.5% RMS, securing optimum cathode film deposition boundaries.

Advanced Semiconductor Core
Driven by standard high-frequency industrial IGBT module networks or discrete Silicon Carbide (SiC) MOSFET elements, achieving exceptional dynamic response parameters.

Galvanically Isolated Gateway
Equipped with native RS485 Modbus RTU telemetry node setups, completely isolated via digital optocouplers to block common-mode noise feedbacks loops seamlessly.

Output DC Current Scope
0 — 300 Amperes (Fully Adjustable)
High-resolution step micro-current scaling matching natively.

Output DC Voltage Scope
0 — 30 Volts (Constant Voltage / Current)
Precision closed-loop microprocessor automatic switching matching parameters cleanly.

Inrush Surge Protection
Intelligent Soft-Start Matrix Enabled
0 — 10 seconds programmable software ramp timelines to block line drops safely.

International Certification
CE Attestation of Conformity
Fully Compliant with regular European LVD (2014/35/EU) & EMC (2014/30/EU) performance boundaries.

Steady State Accuracy
≤ ±0.1% Full Scale Output
Calibrated tracking thresholds preventing current crowding across delicate sub-assemblies.

Ripple Coefficient (RMS)
≤ 0.5% at Full Rated Load Limits
Multi-stage low-pass filtering limits switching noise and removes orange peel defects curves.

AC Input Windows
3-Phase 380V / 415V / 480V AC ±10%
Adaptive connection matching global factory mains and high-power grid distribution layouts (50Hz/60Hz).

Core Semiconductor Topology
Heavy IGBT / Discrete SiC MOSFET Option
High-frequency switch-mode execution power module topologies matrix loop.

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout

System Topology Outline: Cross-sectional mapping of internal structural routing layouts and optimized functional power cell integration.

Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Blueprinting Matrix

Blueprint Adaptive
Built From Your Schematics & Plant Blueprints
Forward your mechanical blueprints or station layouts. Our engineering team will build custom enclosures to fit perfectly into your technical bays natively.
Patent No: ZL 2019 2 1905918.5
Proprietary High-Frequency Transformer Matrix
Incorporates elite magnetic core matrix engineering to direct massive energy with near-zero leakage inductance, heavily reducing heavy-power heat signatures.
Patent No: ZL 2019 3 0679510.X
Integrated Thermal Dissipation Copper Base
Patented copper heavy substrates route junction thermal vectors outward instantly, maximizing equipment system runtime parameters under constant continuous loads.
Isolated Bus
Fully Galvanic Sealed Controller Vault
Core microprocessor telemetry structures are entirely sealed away from plant vapors, blocking aggressive common-mode noise and ground loop feedback errors.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting.

Industrial rectifier centralized monitoring network system diagram with Master control and central server

Network Control System: Optical isolation hub with Modbus/Industrial Ethernet telemetry solution for centralized monitoring up to N≤32 clusters natively.

Industrial Site Deployment & Global Logistics

Step 01
Split-Modular Secure Shipping
Heavy-duty systems utilize split-modular configurations for limited site access. Units are sealed in ISPM-15 compliant sea-worthy wooden cases with moisture membranes to prevent maritime corrosion.
Step 02
International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering FOB port, CIF seaport, and global DDP factory-integration protocols.
Step 03
Engineering Audit & Commissioning Support
Complete engineering blueprints, circuit schematics, and busbar layouts are supplied for facility audits. Turnkey remote commissioning loops and tracking arrays are fully provided.
Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇
Back

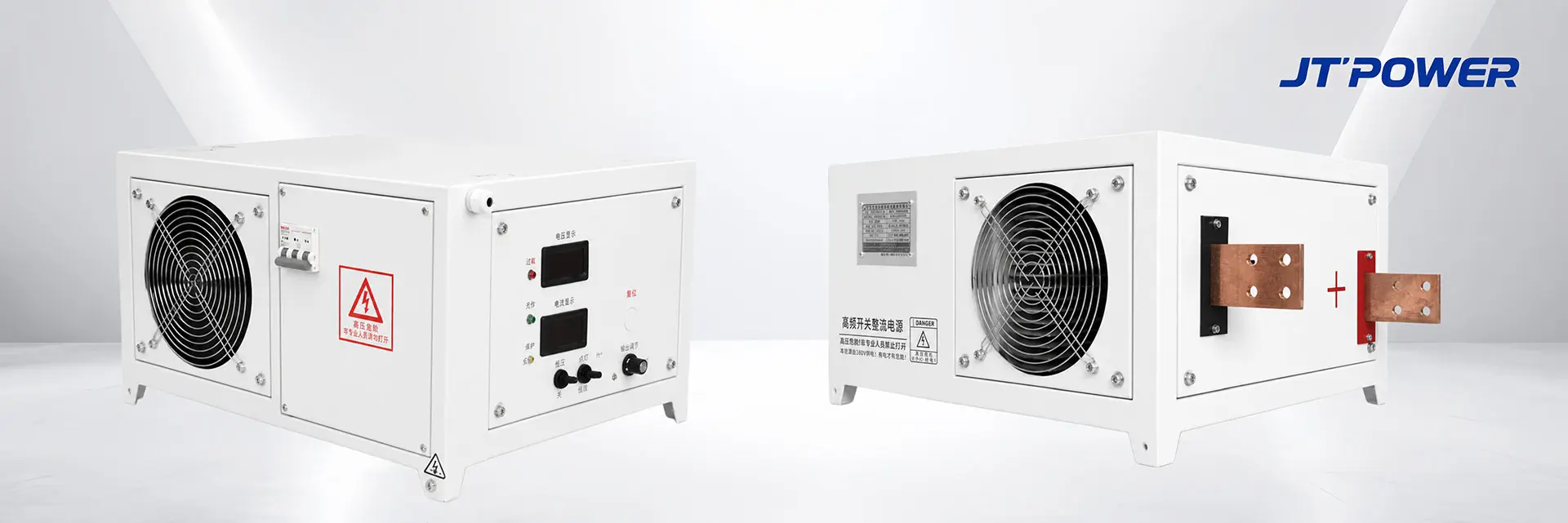

JT-POWER 30V 300A energy-saving SiC MOSFET E-coating rectifier system with integrated front control panel, AC 380V breaker, and ultra-low ripple output for automotive parts electrophoretic deposition.
Leave Message

Related Products

Direct Engineering Hotline
+86-138-0268-7354
Global Sales Support
info@jt-rectifier.com
Technical Support Matrix
info@jt-rectifier.com
Proceed to Official Inquiry Page

Response within 24 hours

Section 1: Application & Plating Process FAQ 🛰️
How does this 30V 300A SiC MOSFET rectifier optimize film thickness uniformity in precision E-coating?
Precision electrophoretic coating (E-coat/KTL) requires strict voltage adjustment during the initial micelle deposition phase. This system delivers ultra-fine step voltage control, preventing film ruptures and securing an exceptionally uniform, pinhole-free primer layer for high-end automotive brackets and electronic enclosures via advanced SiC MOSFET E-coating rectifier systems.
What current ripple factor does this unit guarantee, and how does it prevent orange peel defects?
The current ripple factor is strictly controlled within ≤0.5% RMS at full load. Minimizing ripple prevents high-frequency micro-pulsations that disrupt the smooth, linear migration of charged paint particles, ensuring an ultra-smooth finish and completely eliminating orange peel defects common in standard low ripple E-coat power supplies.
Can this 30V power supply handle rapid tank impedance shifts as the paint film builds up?
Yes, seamlessly. As the insulating paint layer accumulates on the workpiece, the electrical resistance inside the tank climbs rapidly. Our integrated microsecond feedback loop dynamically adjusts the regulation curves to maintain perfect deposition speeds, outperforming standard precision electrophoretic deposition rectifiers under shifting loads.
Is this compact 300A unit engineered to sustain continuous full-load workshop production?
Engineered for a 100% continuous duty cycle, the entire internal topology utilizes conservative thermal margins to run at non-stop maximum output under harsh workshop environments, establishing itself as a highly reliable continuous duty compact E-coating rectifier.
Does this precision rectifier meet strict quality tracking compliance for automotive component sourcing?
Yes, with its high-accuracy calibration tracking and real-time register logging, it outputs the precise, uncorrupted electrical telemetry required to satisfy the strict reporting and auditing mandates expected from modern Nadcap compliant industrial rectifiers.
Section 2: Hardware Architecture & Enclosure FAQ 🔧
What are the hardware operational benefits of migrating from standard IGBTs to Silicon Carbide topology?
By incorporating premium Silicon Carbide (SiC) MOSFET switches operating at an elevated 100kHz frequency, the unit cuts switching energy losses drastically and pushes peak conversion efficiency past 93%, defining a benchmarking high efficiency Silicon Carbide rectifiers architecture.
How does the enclosure safeguard internal electronics from aggressive paint room solvent vapors?
E-coating bays release intense humidity and solvent vapors. The chassis seals sensitive components within an independent air-duct zone treated with multi-layer conformal barrier coatings, outlasting standard boxes as a dedicated anti-corrosion compact plating rectifier enclosure.
What transformer core technology manages the 100kHz high-frequency switching frequency?
We employ premium nanocrystalline EE130 cores paired with high-grade multi-strand Litz wire windings. This configuration eliminates skin effect bottlenecks and eddy current heat, producing a highly durable high frequency transformer switching power supply block.
Are the 300A internal output terminals robust enough to prevent thermal drifting over long shifts?
Yes, the output is terminated via high-purity heavily silver-plated solid copper blocks, eliminating contact resistance and keeping the full-load operating temperature delta strictly at ΔT≤30°C for elite heavy duty copper busbar rectifiers.
What are the size and space benefits of this precision compact enclosure design?
We utilize a high-density compact chassis layout that slashes traditional workspace footprints by up to 40%, making it an ideal, space-efficient compact size benchtop industrial rectifier for modern streamlined paint lines.
Section 3: Digital Controls & Automation FAQ 🔬
Which hardware processor core drives the high-speed loop regulation loops?
The hardware loop is orchestrated by an advanced industrial microcontroller chip core, suppressing phase shifts and delivering zero thermal drift compared to primitive analog microcontroller control electroplating rectifiers cards.
Can this 300A unit interface directly with remote automated PLC monitoring networks?
Natively. The system is equipped with an isolated RS485 interface running standard Modbus-RTU protocol and can be upgraded to Profinet, allowing seamless remote deployment via modern Profinet programmable industrial rectifiers networks.
What is the actual digital setting and display resolution on the front control panel?
The high-contrast digital display panel provides extreme tuning granularity down to 0.01V and 0.1A, offering the exact parameter management required for high-tech precision digital industrial rectifiers setups.
How fast does the self-protection routine mitigate accidental tank short circuits or arcing?
The integrated digital firmware evaluates feedback loops in under 10 microseconds, shutting down gating signals instantly upon detecting arc patterns to act as a highly responsive fast response protective rectifier.
Does the control system support saved coating recipe automation timelines?
Yes, the internal digital memory storage allows engineers to pre-program and execute complex multi-step voltage/current timeline recipes for modern automated programmable recipe electroplating power supplies runs.
