12V 500A High-Frequency Compact Switching Rectifier for Precision Electroplating

Specially engineered for specialized precious metal plating, semiconductor wireframes, electronic connector sub-assemblies, and high-purity laboratory R&D lines.

This benchtop 500A Precision Electroplating Rectifier balances an ultra-compact footprint with high accuracy. Discrete SiC MOSFET switching soft topologies operate at optimized frequencies to eliminate current concentration errors, fully isolating logic channels from harsh ambient vapors.

✓ Steady Regulation Accuracy (≤ ±0.1%): Closed-loop tracking networks stabilize micro-current limits instantly to guarantee zero deposit thickness deviations on expensive gold and silver baths.
✓ Low Harmonic Wave Matrix (≤ 1% RMS): Multi-stage low-pass filtering limits high-frequency switching noise, targeting steady cathode film behavior to refine uniform grain structures.
✓ Patented Vapour Isolation Enclosure: Safeguarded by proprietary enclosure structures (Patent No: ZL 2025 2 0867629.X and ZL 2020 3 0249984.3) to isolate electronics from acid-base ambient tracks.

Accuracy ≤ ±0.1%
12V / 500A Benchtop Scales
IP54 Compact Chassis

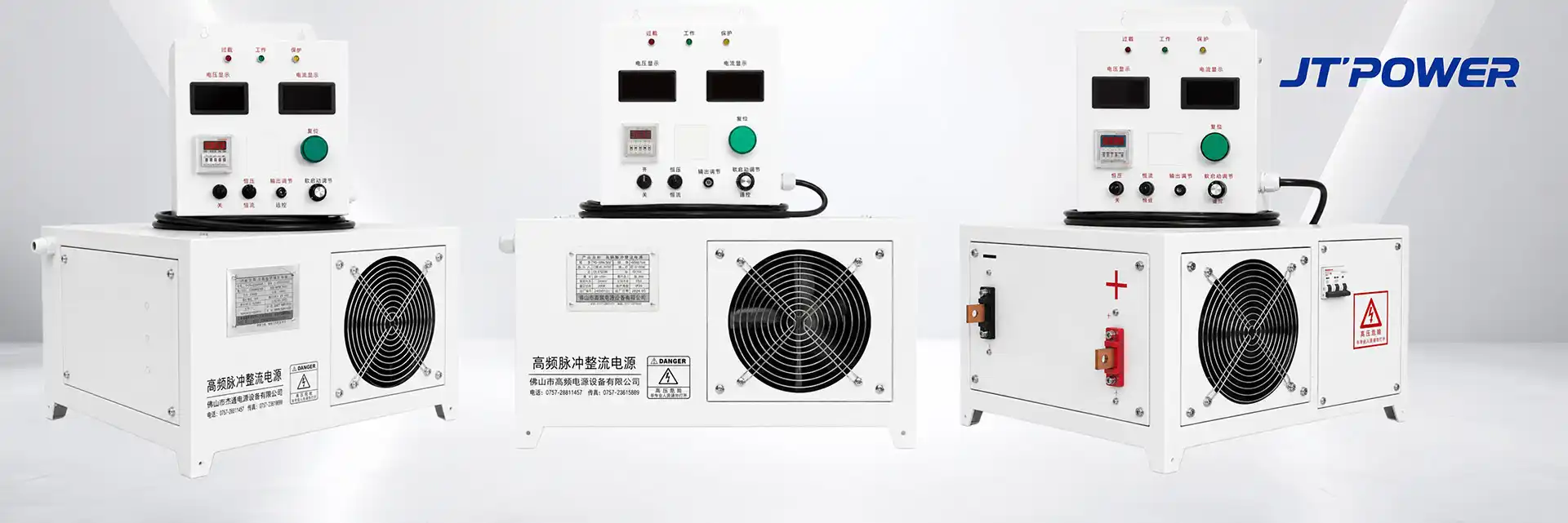

JT-POWER high-precision compact rectifier 12V 500A for laboratory testing and small scale electroplating

Technical Specifications & Core Performance Matrix (12V 500A)

*All compact-frame parameters are fully scalable to individual laboratory station and line layouts.

Steady Regulation Accuracy
Maintains calibrated tracking thresholds down to micro-current layers, delivering a regulation lock of ≤ ±0.1% to guarantee zero thickness deviation when running highly expensive gold and silver baths.

Low Harmonic Wave Matrix
Integrated low-pass filter arrays smooth out high-frequency switching noise (Ripple ≤ 1% RMS). This consistent wave behavior targets cathode film stabilization to secure perfect micro-faceted grain structures.

Advanced SiC MOSFET Base
Driven by discrete ultra-fast switching Silicon Carbide (SiC) MOSFET topologies. Delivers outstanding thermal ruggedness within small envelopes, available in flexible high-velocity forced air or liquid loops.

Isolated Telemetry Hub
Equipped with an optically isolated RS485 Modbus RTU communication bus. Integrates seamlessly into automated PLC cell structures and centralized smart workstation networks without signal interference.

Technical Parameters Standard Configuration Engineering Parametric Range
Rated Output Current Scope 0 — 500 Amperes (Fully Adjustable) High-resolution text analog or digital micro-step tracking adjustments
Rated Output Voltage Scope 0 — 12 Volts (Constant Voltage / Current) 6V / 15V / 24V Precise Output Layouts
International Certification CE Attestation of Conformity Fully Compliant with EU LVD (2014/35/EU) & EMC (2014/30/EU)
Steady Regulation Accuracy ≤ ±0.1% Full Scale Maintains ultra-precise density boundaries down to micro-currents
Ripple Coefficient (RMS) ≤ 1% at Full Rated Load Advanced multi-stage filtering options available
Thermal Framework Forced Air Cooling / Industrial Water Cooling Dual certified designs (XLDF Forced-Air / XLDS Liquid-Cooled)
Automation Interface Standard Isolated RS485 Modbus RTU Port 4-20mA / 0-10V Analog industrial host signal compatible
Power Factor Efficiency ≥ 0.95 (At Full Rated Load) Optimized switch-mode energy tracking loops

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Alt text: Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout Equipment Structure Diagram: A clear understanding of the internal structure and functional components of the equipment.

Alt text: Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Custom Blueprinting Framework

Blueprint Adaptive

Built From Your Schematics & Plant Blueprints

Deploying a new industrial plant or restructuring existing bays? Simply forward us your mechanical blueprints or station layouts, and our engineering team will build custom enclosures to fit perfectly.

Patent No

Proprietary High-Frequency Transformer (Patent No: ZL 2019 2 1905918.5)

Incorporating our elite magnetic core matrix engineering, the system directs massive energies with near-zero leakage inductance, heavily reducing continuous cabinet heat dissipation boundaries.

Patent No

Integrated Thermal Dissipation Base (Patent No: ZL 2019 3 0679510.X)

Utilizing our patented copper heavy cooling substrate arrays, critical junction thermal vectors route outward instantly, expanding equipment lifetime margins under constant 24/7 industrial loads.

Isolated Bus

Fully Galvanic Sealed Controller Vault

Our core microprocessor systems are completely sealed away from plant vapors, blocking aggressive common-mode noise and cross-talk ground feedback errors natively.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting back to the primary industrial PLC master grid.


Industrial Site Deployment & Global Logistics

1. Split-Modular Secure Shipping
To ensure maritime safety and facilitate crane-lifting within space-limited facilities, our heavy-duty 8000A systems utilize split-modular enclosure configurations. Units are encapsulated within ISPM-15 compliant sea-worthy wooden cases, lined with industrial moisture-proof membranes to guard against high-salinity marine corrosion.
2. International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering global industrial sea-freight solutions, compliant with international trade codes including FOB port, CIF seaport, and full DDP factory-integration processes.
3. Engineering Audit & Commissioning Support
We provide complete engineering blueprints, circuit schematics, internal component lists, and busbar configuration data to facilitate facility audits. Turnkey remote commissioning support, custom reverse-polarity programming loops, and complete device tracking arrays are provided for factory scalability.
Alt text: Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇

12V 500A High-Frequency Compact Switching Rectifier for Precision Electroplating

Specially engineered for specialized precious metal plating, semiconductor wireframes, electronic connector sub-assemblies, and high-purity laboratory R&D lines.

This benchtop 500A Precision Electroplating Rectifier balances an ultra-compact footprint with high accuracy. Discrete SiC MOSFET switching soft topologies operate at optimized frequencies to eliminate current concentration errors, fully isolating logic channels from harsh ambient vapors.

✓ Steady Regulation Accuracy (≤ ±0.1%): Closed-loop tracking networks stabilize micro-current limits instantly to guarantee zero deposit thickness deviations on expensive gold and silver baths.
✓ Low Harmonic Wave Matrix (≤ 1% RMS): Multi-stage low-pass filtering limits high-frequency switching noise, targeting steady cathode film behavior to refine uniform grain structures.
✓ Patented Vapour Isolation Enclosure: Safeguarded by proprietary enclosure structures (Patent No: ZL 2025 2 0867629.X and ZL 2020 3 0249984.3) to isolate electronics from acid-base ambient tracks.

ACCURACY ≤ ±0.1%
12V / 500A BENCHTOP
IP54 COMPACT CHASSIS
JT-POWER high-precision compact rectifier 12V 500A for laboratory testing and small scale electroplating

Technical Specifications & Core Performance Matrix (12V 500A)

*All compact-frame parameters are fully scalable to individual laboratory station and line layouts.

Steady Regulation Accuracy
Maintains calibrated tracking thresholds down to micro-current layers, delivering a regulation lock of ≤ ±0.1% to guarantee zero thickness deviation when running highly expensive gold and silver baths.

Low Harmonic Wave Matrix
Integrated low-pass filter arrays smooth out high-frequency switching noise (Ripple ≤ 1% RMS). This consistent wave behavior targets cathode film stabilization to secure perfect micro-faceted grain structures.

Advanced SiC MOSFET Base
Driven by discrete ultra-fast switching Silicon Carbide (SiC) MOSFET topologies. Delivers outstanding thermal ruggedness within small envelopes, available in flexible high-velocity forced air or liquid loops.

Isolated Telemetry Hub
Equipped with an optically isolated RS485 Modbus RTU communication bus. Integrates seamlessly into automated PLC cell structures and centralized smart workstation networks without signal interference.

Rated Output Current Scope
0 — 500 Amperes (Fully Adjustable)
High-resolution text analog or digital micro-step tracking adjustments loops cleanly.

Rated Output Voltage Scope
0 — 12 Volts (Constant Voltage / Current)
6V / 15V / 24V Precise Output Layouts synchronized to laboratory stations.

International Certification
CE Attestation of Conformity
Fully Compliant with official EU LVD (2014/35/EU) & EMC (2014/30/EU) performance criteria.

Steady Regulation Accuracy
≤ ±0.1% Full Scale Lock
Maintains ultra-precise thickness density boundaries down to micro-current layers cleanly.

Ripple Coefficient (RMS)
≤ 1% at Full Rated Load
Advanced multi-stage smooth wave filtration loops options available natively.

Thermal Framework
Forced Air Cooling / Industrial Water Cooling
Dual certified designs incorporating XLDF Forced-Air or XLDS Liquid-Cooled options.

Automation Interface
Standard Isolated RS485 Modbus RTU Port
4-20mA / 0-10V Analog industrial host signal compatible design pathways.

Power Factor Efficiency
≥ 0.95 (At Full Rated Load Matrix)
Optimized high frequency switch-mode energy tracking loops to suppress reactive losses.

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout

System Topology Outline: Cross-sectional mapping of internal structural routing layouts and optimized functional power cell integration.

Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Blueprinting Matrix

Blueprint Adaptive
Built From Your Schematics & Plant Blueprints
Forward your mechanical blueprints or station layouts. Our engineering team will build custom enclosures to fit perfectly into your technical bays natively.
Patent No: ZL 2019 2 1905918.5
Proprietary High-Frequency Transformer Matrix
Incorporates elite magnetic core matrix engineering to direct massive energy with near-zero leakage inductance, heavily reducing heavy-power heat signatures.
Patent No: ZL 2019 3 0679510.X
Integrated Thermal Dissipation Copper Base
Patented copper heavy substrates route junction thermal vectors outward instantly, maximizing equipment system runtime parameters under constant continuous loads.
Isolated Bus
Fully Galvanic Sealed Controller Vault
Core microprocessor telemetry structures are entirely sealed away from plant vapors, blocking aggressive common-mode noise and ground loop feedback errors.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting.

Industrial rectifier centralized monitoring network system diagram with Master control and central server

Network Control System: Optical isolation hub with Modbus/Industrial Ethernet telemetry solution for centralized monitoring up to N≤32 clusters natively.

Industrial Site Deployment & Global Logistics

Step 01
Split-Modular Secure Shipping
Heavy-duty systems utilize split-modular configurations for limited site access. Units are sealed in ISPM-15 compliant sea-worthy wooden cases with moisture membranes to prevent maritime corrosion.
Step 02
International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering FOB port, CIF seaport, and global DDP factory-integration protocols.
Step 03
Engineering Audit & Commissioning Support
Complete engineering blueprints, circuit schematics, and busbar layouts are supplied for facility audits. Turnkey remote commissioning loops and tracking arrays are fully provided.
Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇
Back
JT-POWER 12V 500A precision compact DC rectifier system with remote control box and Silicon Carbide SiC topologies for precious metal plating.
Leave Message

Related Products

Direct Engineering Hotline
+86-138-0268-7354
Global Sales Support
info@jt-rectifier.com
Technical Support Matrix
info@jt-rectifier.com
Proceed to Official Inquiry Page

Response within 24 hours

Section 1: Application & Plating Process FAQ 🛰️
Is this 12V 500A rectifier precise enough for precious metal electroplating?
Yes, with its ultra-stable voltage stability and high regulation resolution, this unit is engineered exactly for gold, silver, and platinum deposition, acting as a premier precious metal electroplating power supply for high-end jewelry and electronics.
How does the low ripple output benefit micro-pitting control on electronic components?
By keeping the current ripple factor at ≤0.5% RMS, this system prevents localized overheating and micro-defects during electrolysis, establishing its reputation as one of the best low ripple high frequency rectifiers available.
Can this compact power supply be deployed for laboratory test plating tanks?
Absolutely. Its linear-like output accuracy combined with a minimal benchtop footprint makes it an ideal laboratory precision dc power supply for R&D centers running chemical recipe trials.
Does the system support high-frequency pulse waveforms for precision plating?
Our optimized gating algorithms deliver clean, sharp duty-cycle pulses that reduce internal stress in the plating layer, providing top efficiency for a compact pulse electroplating rectifier configuration.
How does the rectifier handle high-accuracy thickness controls for semiconductor leads?
The embedded high-speed PID control loop fine-tunes current steps instantly, ensuring flawless micron-level plating thickness uniformity across dense semiconductor plating power supply operations.
Section 2: Hardware Architecture & Enclosure FAQ 🔧
What are the dimension benefits of this precision compact enclosure design?
We utilize a high-density 19-inch rack-mountable chassis layout. It dramatically slashes traditional workspace footprints by up to 40%, serving as a highly space-efficient compact size benchtop industrial rectifier.
How does this 500A rectifier protect its internal electronics from corrosive gases?
Even in its compact housing, sensitive circuits are shielded behind nano-scale conformal coatings and isolated air ducts, outlasting standard air-cooled boxes as an anti-corrosion compact plating rectifier.
What high-frequency topology is used to achieve such a high power density?
The architecture features premium Silicon Carbide (SiC) switches operating at an elevated 100kHz frequency, which shrinks magnetic components while maintaining elite high density switching power supply metrics.
How does the internal cooling architecture ensure reliable thermal dissipation?
By matching smart, variable-speed low-noise cooling fans with oversized aluminum heatsinks, the unit keeps internal hot-spots tightly controlled, delivering a reliable fan cooled industrial rectifier platform.
Are the internal output terminals robust enough for continuous full-load 500A runs?
Yes, the output is terminated via high-purity heavily silver-plated solid copper blocks, eliminating contact resistance and thermal drifting common in standard 500A electroplating rectifiers.
Section 3: Digital Controls & Automation FAQ 🔬
What microcontroller chip core drives the high-precision regulation loops?
The hardware loop is orchestrated by the advanced PIC16F1829 microcontroller, suppressing phase shifts and delivering zero thermal drift compared to primitive analog microcontroller control electroplating rectifiers.
Can this 500A unit interface directly with remote PLC monitoring platforms?
Natively. The system is equipped with an isolated RS485 interface running standard Modbus-RTU protocol, making it ready out-of-the-box as a Modbus programmable digital power supply block.
What is the actual digital setting and display resolution on the front panel?
The premium digital HMI panel displays precision readings down to 0.01V and 0.1A, offering the tight control granularity required by high-tech precision digital industrial rectifiers.
How does the self-protection routine mitigate accidental tank arc faults?
The integrated firmware evaluates feedback loops in under 10 microseconds. It shuts down gating signals instantly upon detecting arc patterns, acting as a highly responsive fast response protective rectifier.
Does the control system support saved plating recipe automation routines?
Yes, the internal digital memory storage allows engineers to pre-program and execute complex multi-step voltage/current timeline recipes for modern automated programmable recipe electroplating power supplies.
