Custom Precision PCB & Precious Metal Rectifier | Bespoke High-Frequency DC Power Systems

Are standard off-the-shelf power supplies failing to meet your high-density micro-via copper filling requirements or precision gold finger tolerances?

At JIETONG POWER (JT-POWER), we deliver unyielding tracking accuracy for critical electronic manufacturing tracks. Our Custom PCB Plating Rectifier systems provide 100% Blueprint-Adaptive solutions engineered straight from your factory blueprints, safeguarding expensive precious metal plating formulations from burn defects.

✓ Reverse Pulse Plating for HDI Vias: Custom programmable forward/reverse pulse waveform modulations eliminate deep-via gaps and “dog-bone” copper deposition anomalies natively.
✓ Multi-Channel Plating Control Matrix: Supports discrete, synchronized dual-channel or multi-output configurations to balance asymmetrical current density across Top and Bottom cathode paths.
✓ Premium Zero-Burn Suppressor Array: Highly isolated regulation topologies hold an ultra-precise output window to block current transients, conserving expensive gold salt chemistry parameters.

100% Blueprint Adaptive
Multi-Channel Output
Low Ripple ≤ 0.5% RMS
JT-POWER custom precision rectifier for high-end PCB plating and precious metal electrodeposition applications

Technical Specifications & Customization Scope (Precision Electronics Class)

*All physical topologies, enclosure shapes, and multi-bus control configurations are 100% tailored based on your facility blueprints.

Bespoke Pulse Modulation
Engineered far beyond standard industrial DC profiles. We tailor periodic reverse pulse rectifiers and high-frequency wave modulations explicitly configured to match premium high-density interconnect (HDI) requirements.

Multi-Channel Power Arrays
Custom-engineered independent multi-output matrices clustered inside a single tight cabinet footprint. Perfect for high-precision vertical continuous plating (VCP) lines needing precise dual-surface balancing.

Advanced Low-Ripple Filter
Integrated with proprietary multi-stage microsecond smoothing filters to suppress output ripple down to ≤ 0.5% RMS options, securing exceptional metallic crystalline growth patterns and precise deposition density.

Galvanic Bus Integration
Optically isolated Industry 4.0 telemetry interfaces configured directly for Modbus RTU RS485, Profinet, or EtherCAT protocols, providing seamless SCADA network master control room synchronization.

Technical Parameters Standard Configuration Engineering Parametric Range
Rated Output Current Scope 100A — 5,000A DC Scaling Scalable up to 30,000 Amperes+ via multi-channel matrix parallel arrays
Rated Output Voltage Scope 0 — 12V / 15V DC Base Custom tailored from micro-precision 6V up to high-voltage 150V+ fields
Inrush Surge Protection Intelligent Soft-Start Module Enabled 0 — 10 seconds programmable linear ramp to shield local grids
International Certification CE Attestation of Conformity Fully Compliant with EU LVD (2014/35/EU) & EMC (2014/30/EU)
Form Factor Layout Standard Industrial Floor Cabinet Ultra-thin 19-inch rack enclosures, wall-hung boxes, or custom split modules
Core Power Semiconductor Selectable Heavy IGBT / Discrete SiC MOSFET High-frequency switch-mode topologies customized to facility power budgets
Power Factor (COSΦ) ≥ 0.95 (At Full Rated Load Limits) High efficiency architecture minimizing reactive loss indicators
Thermal Framework Forced Independent Air-Ducting Dual certified frameworks with isolated internal independent ducts
Chassis Protection Sealed Control Vault Housing Encapsulated anti-acid protection isolating critical cards from acid vapors

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Alt text: Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout Equipment Structure Diagram: A clear understanding of the internal structure and functional components of the equipment.

Alt text: Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Custom Blueprinting Framework

Blueprint Adaptive

Built From Your Schematics & Plant Blueprints

Deploying a new industrial plant or restructuring existing bays? Simply forward us your mechanical blueprints or station layouts, and our engineering team will build custom enclosures to fit perfectly.

Patent No

Proprietary High-Frequency Transformer (Patent No: ZL 2019 2 1905918.5)

Incorporating our elite magnetic core matrix engineering, the system directs massive energies with near-zero leakage inductance, heavily reducing continuous cabinet heat dissipation boundaries.

Patent No

Integrated Thermal Dissipation Base (Patent No: ZL 2019 3 0679510.X)

Utilizing our patented copper heavy cooling substrate arrays, critical junction thermal vectors route outward instantly, expanding equipment lifetime margins under constant 24/7 industrial loads.

Isolated Bus

Fully Galvanic Sealed Controller Vault

Our core microprocessor systems are completely sealed away from plant vapors, blocking aggressive common-mode noise and cross-talk ground feedback errors natively.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting back to the primary industrial PLC master grid.


Industrial Site Deployment & Global Logistics

1. Split-Modular Secure Shipping
To ensure maritime safety and facilitate crane-lifting within space-limited facilities, our heavy-duty 8000A systems utilize split-modular enclosure configurations. Units are encapsulated within ISPM-15 compliant sea-worthy wooden cases, lined with industrial moisture-proof membranes to guard against high-salinity marine corrosion.
2. International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering global industrial sea-freight solutions, compliant with international trade codes including FOB port, CIF seaport, and full DDP factory-integration processes.
3. Engineering Audit & Commissioning Support
We provide complete engineering blueprints, circuit schematics, internal component lists, and busbar configuration data to facilitate facility audits. Turnkey remote commissioning support, custom reverse-polarity programming loops, and complete device tracking arrays are provided for factory scalability.
Alt text: Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇

Custom Precision PCB & Precious Metal Rectifier | Bespoke High-Frequency DC Power Systems

Are standard off-the-shelf power supplies failing to meet your high-density micro-via copper filling requirements or precision gold finger tolerances?

At JIETONG POWER (JT-POWER), we deliver unyielding tracking accuracy for critical electronic manufacturing tracks. Our Custom PCB Plating Rectifier systems provide 100% Blueprint-Adaptive solutions engineered straight from your factory blueprints, safeguarding expensive precious metal plating formulations from burn defects.

✓ Reverse Pulse Plating for HDI Vias: Custom programmable forward/reverse pulse waveform modulations eliminate deep-via gaps and “dog-bone” copper deposition anomalies natively.
✓ Multi-Channel Plating Control Matrix: Supports discrete, synchronized dual-channel or multi-output configurations to balance asymmetrical current density across Top and Bottom cathode paths.
✓ Premium Zero-Burn Suppressor Array: Highly isolated regulation topologies hold an ultra-precise output window to block current transients, conserving expensive gold salt chemistry parameters.

100% BLUEPRINT ADAPTIVE
MULTI-CHANNEL OUTPUT
LOW RIPPLE ≤ 0.5% RMS

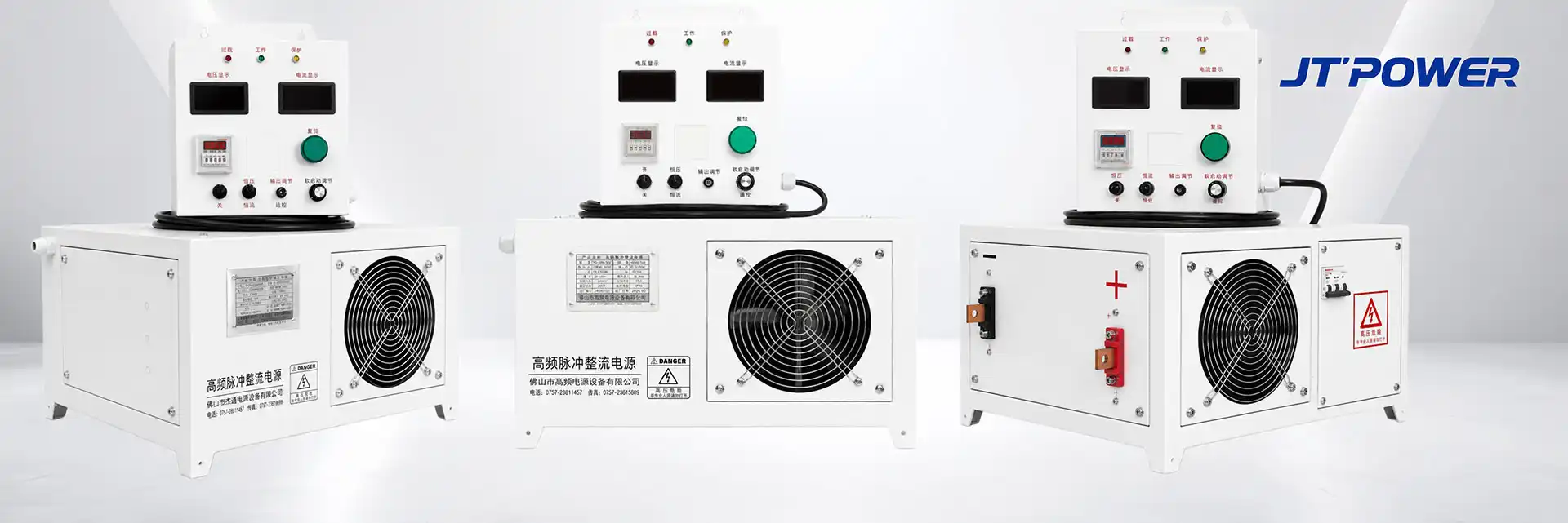

JT-POWER custom precision rectifier for high-end PCB plating and precious metal electrodeposition applications

Technical Specifications & Customization Scope (Precision Electronics Class)

*All physical topologies, enclosure shapes, and multi-bus control configurations are 100% tailored based on your facility blueprints.

Bespoke Pulse Modulation
Engineered far beyond standard industrial DC profiles. We tailor periodic reverse pulse rectifiers and high-frequency wave modulations explicitly configured to match premium high-density interconnect (HDI) requirements.

Multi-Channel Power Arrays
Custom-engineered independent multi-output matrices clustered inside a single tight cabinet footprint. Perfect for high-precision vertical continuous plating (VCP) lines needing precise dual-surface balancing.

Advanced Low-Ripple Filter
Integrated with proprietary multi-stage microsecond smoothing filters to suppress output ripple down to ≤ 0.5% RMS options, securing exceptional metallic crystalline growth patterns and precise deposition density.

Galvanic Bus Integration
Optically isolated Industry 4.0 telemetry interfaces configured directly for Modbus RTU RS485, Profinet, or EtherCAT protocols, providing seamless SCADA network master control room synchronization.

Rated Output Current Scope
100A — 5,000A DC Scaling ベース
100% Scalable up to 30,000 Amperes+ via integrated multi-channel matrix parallel cluster arrays.

Rated Output Voltage Scope
0 — 12V / 15V DC Base
Custom tailored from micro-precision 6V up to high-voltage 150V+ fields smoothly.

Inrush Surge Protection
Intelligent Soft-Start Module Enabled
0 — 10 seconds programmable linear ramp parameters to fully shield local plant grids natively.

International Certification
CE Attestation of Conformity
Fully Compliant with rigid official EU LVD (2014/35/EU) & EMC (2014/30/EU) limits.

Form Factor Layout
Standard Industrial Floor Cabinet
Ultra-thin 19-inch rack enclosures, wall-hung automation boxes, or custom split control modules.

Core Power Semiconductor
Heavy IGBT / Discrete SiC MOSFET Option
High-frequency switch-mode topologies customized precisely to facility operational power budgets.

Power Factor (COSΦ)
≥ 0.95 (At Full Rated Load Limits)
High efficiency switch-mode architecture systematically minimizes active power loss indicators.

Thermal Framework
Forced Independent Air-Ducting Base
Dual certified thermal management frameworks incorporating fully isolated internal cooling zones.

Chassis Protection
Sealed Control Vault Housing
Hermetically encapsulated anti-acid protection completely shields micro-control cards from volatile mists.

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout

System Topology Outline: Cross-sectional mapping of internal structural routing layouts and optimized functional power cell integration.

Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Blueprinting Matrix

Blueprint Adaptive
Built From Your Schematics & Plant Blueprints
Forward your mechanical blueprints or station layouts. Our engineering team will build custom enclosures to fit perfectly into your technical bays natively.
Patent No: ZL 2019 2 1905918.5
Proprietary High-Frequency Transformer Matrix
Incorporates elite magnetic core matrix engineering to direct massive energy with near-zero leakage inductance, heavily reducing heavy-power heat signatures.
Patent No: ZL 2019 3 0679510.X
Integrated Thermal Dissipation Copper Base
Patented copper heavy substrates route junction thermal vectors outward instantly, maximizing equipment system runtime parameters under constant continuous loads.
Isolated Bus
Fully Galvanic Sealed Controller Vault
Core microprocessor telemetry structures are entirely sealed away from plant vapors, blocking aggressive common-mode noise and ground loop feedback errors.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting.

Industrial rectifier centralized monitoring network system diagram with Master control and central server

Network Control System: Optical isolation hub with Modbus/Industrial Ethernet telemetry solution for centralized monitoring up to N≤32 clusters natively.

Industrial Site Deployment & Global Logistics

Step 01
Split-Modular Secure Shipping
Heavy-duty systems utilize split-modular configurations for limited site access. Units are sealed in ISPM-15 compliant sea-worthy wooden cases with moisture membranes to prevent maritime corrosion.
Step 02
International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering FOB port, CIF seaport, and global DDP factory-integration protocols.
Step 03
Engineering Audit & Commissioning Support
Complete engineering blueprints, circuit schematics, and busbar layouts are supplied for facility audits. Turnkey remote commissioning loops and tracking arrays are fully provided.
Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇
Back
JT-POWER 10A to 10000A+ custom precision plating rectifier system main image for PCB and precious metal lines, featuring Silicon Carbide (SiC) topologies, CE certification, and Modbus RTU telemetry.
Leave Message

Related Products

Direct Engineering Hotline
+86-138-0268-7354
Global Sales Support
info@jt-rectifier.com
Technical Support Matrix
info@jt-rectifier.com
Proceed to Official Inquiry Page

Response within 24 hours

Section 1: Application & Plating Process FAQ 🛰️
How does this custom rectifier enhance uniform copper deposition in fine-line PCB patterns?
By incorporating high-frequency switching regulation and dynamic ripple attenuation, the unit eliminates localized current crowding across dense patterns, proving its efficiency for HDI PCB electroplating rectifiers in high-yield fabrication plants.
Can this system run complex Pulse Reverse Plating profiles for blind via filling?
Yes. The core architecture supports ultra-fast polarity switching configurations, allowing engineers to program precise forward-to-reverse time cycles required by a modern pulse reverse copper plating power supply block.
Is this rectifier stable enough for continuous high-speed reel-to-reel gold plating lines?
Absolutely. The system executes real-time voltage and current balancing to prevent expensive metal over-plating or thickness dropouts, acting as a rock-solid reel to reel precious metal rectifier for electronic terminals.
What ripple factor does this system guarantee, and how does it prevent deposit brittleness?
Our advanced filtering choke layout forces the current ripple down to ≤0.5% RMS. This eliminates structural micro-voids and enhances copper elongation properties standard in low ripple PCB plating rectifiers lines.
Does the control system adapt to low-current gold-flash or IC substrate micro-bumping?
Yes, the hardware loop maintains high linear accuracy even when dialed down to single-digit currents, fulfilling the rigorous stability metrics expected from high-end semiconductor IC substrate power supplies.
Section 2: Hardware Architecture & Enclosure FAQ 🔧
How does the custom enclosure protect internal circuits from harsh acid and cyanide mist?
We isolate sensitive electronic firing cards within an independent, sealed cooling channel. All circuit tracks are coated with premium anti-corrosion barriers, establishing a superior anti corrosion PCB plating power supply frame.
What are the hardware benefits of migrating from standard IGBTs to high-frequency Silicon Carbide?
Leveraging Silicon Carbide (SiC) MOSFET configurations at an elevated 100kHz switching profile reduces transformer volume while cutting response lag, making it perfect for high frequency SiC rectifiers deployments.
How are the output busbars engineered to manage continuous full-load currents safely?
The system utilizes oversized, heavy-duty T2 red copper busbars finished with extensive silver plating. This cuts contact resistance and restricts thermal generation, a hallmark of our heavy duty copper busbar rectifiers.
Can this precision custom rectifier be integrated directly into a standard 19-inch server rack layout?
Yes. Our structural design offers highly space-efficient, high-density cabinet stacking configurations, providing the convenience of a space-saving rack mountable industrial rectifier block.
How does the high-frequency main transformer handle continuous pulse switching cycles?
The main block utilizes premium nanocrystalline magnetic cores wound with high-grade multi-strand Litz wire to minimize skin effect and eddy current fatigue on our high switching transformer power supply modules.
Section 3: Digital Controls & Automation FAQ 🔬
Which microcontroller hardware core executes the core synchronization and PWM loop?
The control board is driven by an industrial high-speed microcontroller core, guaranteeing precise gating alignments and eliminating the phase-shifting typical of analog microcontroller programmable PCB rectifier assemblies.
How does the system interface with automated VCP line controllers and SCADA systems?
The system features fully isolated RS485 Modbus-RTU channels as standard, and supports seamless upgrades to Profinet or Ethernet nodes for reliable tracking on a Profinet compatible digital rectifier link.
What level of setting and readback resolution is provided on the digital HMI panel?
The calibration architecture allows fine adjustments down to 0.01V and 0.1A. This gives operators the micro-tuning capabilities necessary for an elite precision digital precious metal rectifier terminal.
How fast does the short-circuit protection matrix execute if a board touches an anode basket?
The electronic shutdown routine evaluates load parameters constantly and clamps gating signals in under 10 microseconds, delivering unmatched protection compared to slow fast response fault protected rectifiers.
Is there an embedded Ampere-Hour tracking feature for real-time additive and dosing management?
Yes, a high-precision digital Ampere-Hour meter is integrated into the core firmware, allowing automated chemical dosing triggers through smart ampere hour control rectifiers data lines.
