Electro-Catalytic Oxidation 4000A 24V Wastewater Rectifier

Heavy industrial high-frequency DC rectifier engineered for refractory organic wastewater decomposition and electro-catalytic treatment plants.

At JIETONG POWER (JT-POWER), we manufacture standardized high-efficiency switching power frameworks for aggressive environmental protection applications. This heavy-duty 4000A 24V Electro-Catalytic Oxidation Rectifier maintains relentless constant current precision, designed natively to catalyze hydroxyl radicals (•OH) efficiently while absorbing extreme water conductivity fluctuations.

✓ Rigid Constant Current Deadlock: Microprocessor-driven tracking infrastructure sustains an unyielding 4000A output, optimizing electrochemical oxidation pathways regardless of heavy metal or electrolyte density loading variances.
✓ Conductivity Flash Buffering: High-velocity internal sensors instantly throttle current spikes when high-concentration COD/BOD pharmaceutical or textile wastewater flushes enter the reaction cell.
✓ Hermetic Anti-Corrosion Enclosure: Heavy-duty sealed enclosure barriers keep all logic drive tracking boards completely isolated from ambient chemical vapors, eliminating airborne cross-talk faults.
Constant Current Lock
4000A / 24V Full Range
Sealed IP54 Protection

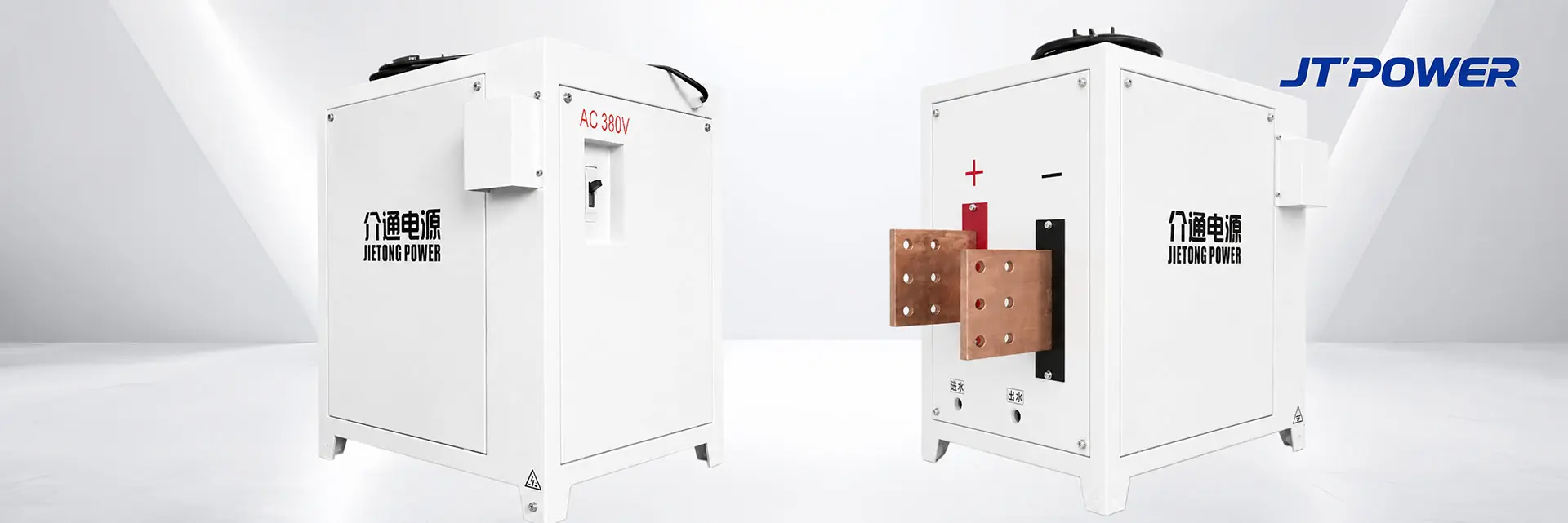

JT-POWER 4000A 24V electro-catalytic oxidation rectifier for industrial wastewater and water treatment systems - main product view

Technical Specifications & Operational Matrix (24V 4000A Base)

*Heavy industrial performance attributes verified under full-load continuous factory testing limits.

Constant Current Regulation
Pre-programmed with strict steady constant current parameters. Keeps the full 4000 Amperes output tracking cleanly down to low-resistance margins, preventing dynamic deposition variations.
Fluid Impedance Resiliency
Equipped with high-speed DSP sensing microchips to counteract volatile electrical conductivity shocks instantly. Eliminates common over-current or accidental line breaker trip loops natively.
SMPS High Frequency Core
Engineered around standardized switch-mode power topologies, guaranteeing a premium Ripple Coefficient ≤ 1% RMS under max load. Compresses system reactive dissipation loss across plant lines.
Standard Industrial Automation
Compliant with CE LVD & EMC frameworks. Integrates an optically isolated bus framework supporting Modbus RTU (RS485) or native Profinet for quick linking to automated chemical dosing networks.
Technical Parameter Grid Standard Industrial Specification Engineering Compliance Bounds
Rated DC Amperage 4000 Amperes (Continuous Output Capacity) Standard modular parallel arrays scalable up to 20,000A+
Rated DC Voltage 24 Volts DC Linear scale adjustment from 0V to full 24V head smoothly
Tracking Accuracy ≤ ±1% Constant Current Regulation Locks output amperage boundaries steady against reactive waste variations
Ripple Coefficient ≤ 1% RMS (Full Rated Load Limits) Multi-stage integrated filter low-pass choke paths embedded
Input Main Line 3-Phase AC 380V / 415V / 480V, 50Hz/60Hz Universal industrial grid synchronization with soft-start circuits
Chassis Protection IP54 Sealed Control Compartment Housing Isolates sensitive logic control cards from harsh humid chemical air
Cooling Method Forced Independent Air Ducting System High-velocity isolated cooling loops to optimize semiconductor lifespans

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Alt text: Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout Equipment Structure Diagram: A clear understanding of the internal structure and functional components of the equipment.

Alt text: Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Custom Blueprinting Framework

Blueprint Adaptive

Built From Your Schematics & Plant Blueprints

Deploying a new industrial plant or restructuring existing bays? Simply forward us your mechanical blueprints or station layouts, and our engineering team will build custom enclosures to fit perfectly.

Patent No

Proprietary High-Frequency Transformer (Patent No: ZL 2019 2 1905918.5)

Incorporating our elite magnetic core matrix engineering, the system directs massive energies with near-zero leakage inductance, heavily reducing continuous cabinet heat dissipation boundaries.

Patent No

Integrated Thermal Dissipation Base (Patent No: ZL 2019 3 0679510.X)

Utilizing our patented copper heavy cooling substrate arrays, critical junction thermal vectors route outward instantly, expanding equipment lifetime margins under constant 24/7 industrial loads.

Isolated Bus

Fully Galvanic Sealed Controller Vault

Our core microprocessor systems are completely sealed away from plant vapors, blocking aggressive common-mode noise and cross-talk ground feedback errors natively.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting back to the primary industrial PLC master grid.


Industrial Site Deployment & Global Logistics

1. Split-Modular Secure Shipping
To ensure maritime safety and facilitate crane-lifting within space-limited facilities, our heavy-duty 8000A systems utilize split-modular enclosure configurations. Units are encapsulated within ISPM-15 compliant sea-worthy wooden cases, lined with industrial moisture-proof membranes to guard against high-salinity marine corrosion.
2. International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering global industrial sea-freight solutions, compliant with international trade codes including FOB port, CIF seaport, and full DDP factory-integration processes.
3. Engineering Audit & Commissioning Support
We provide complete engineering blueprints, circuit schematics, internal component lists, and busbar configuration data to facilitate facility audits. Turnkey remote commissioning support, custom reverse-polarity programming loops, and complete device tracking arrays are provided for factory scalability.
Alt text: Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇



Electro-Catalytic Oxidation 4000A 24V Wastewater Rectifier

Heavy industrial high-current DC rectifier engineered for refractory organic wastewater decomposition and electro-catalytic treatment plants.

At JIETONG POWER (JT-POWER), we manufacture standardized high-efficiency switching power frameworks for aggressive environmental protection applications. This heavy-duty 4000A 24V Electro-Catalytic Oxidation Rectifier maintains relentless constant current precision, designed natively to catalyze hydroxyl radicals (•OH) efficiently while absorbing extreme water conductivity fluctuations.

✓ Rigid Constant Current Deadlock: Microprocessor-driven tracking infrastructure sustains an unyielding 4000A output, optimizing electrochemical oxidation pathways regardless of heavy metal or electrolyte density loading variances.
✓ Conductivity Flash Buffering: High-velocity internal sensors instantly throttle current spikes when high-concentration COD/BOD pharmaceutical or textile wastewater flushes enter the reaction cell.
✓ Hermetic Anti-Corrosion Enclosure: Heavy-duty sealed enclosure barriers keep all logic drive tracking boards completely isolated from ambient chemical vapors, eliminating airborne cross-talk faults.

Constant Current Lock
4000A / 24V Full Range
Sealed IP54 Protection
JT-POWER 4000A 24V electro-catalytic oxidation rectifier for industrial wastewater and water treatment systems - main product view

Technical Specifications & Operational Matrix (24V 4000A Base)

*Heavy industrial performance attributes verified under full-load continuous factory testing limits.

Constant Current Regulation
Pre-programmed with strict steady constant current parameters. Keeps the full 4000 Amperes output tracking cleanly down to low-resistance margins, preventing dynamic deposition variations.

Fluid Impedance Resiliency
Equipped with high-speed DSP sensing microchips to counteract volatile electrical conductivity shocks instantly. Eliminates common over-current or accidental line breaker trip loops natively.

SMPS High Frequency Core
Engineered around standardized switch-mode power topologies, guaranteeing a premium Ripple Coefficient ≤ 1% RMS under max load. Compresses system reactive dissipation loss across plant lines.

Standard Industrial Automation
Compliant with CE LVD & EMC frameworks. Integrates an optically isolated bus framework supporting Modbus RTU (RS485) or native Profinet for quick linking to automated chemical dosing networks.

Technical Parameter Grid
Rated DC Amperage: 4000 Amperes (Continuous Output Capacity)
Standard modular parallel arrays scalable flawlessly up to 20,000A+ limits.

Standard Industrial Specification
Rated DC Voltage: 24 Volts DC
Linear scale adjustment from 0V to full 24V head smoothly options.

Engineering Compliance Bounds
Tracking Accuracy: ≤ ±1% Constant Current Regulation
Locks output amperage boundaries steady against reactive waste variations.

Ripple Threshold
≤ 1% RMS (Full Rated Load Limits)
Multi-stage integrated filter low-pass choke paths embedded natively within layout.

Input Main Line
3-Phase AC 380V / 415V / 480V, 50Hz/60Hz
Universal industrial grid synchronization with pre-charging soft-start relays layout.

Chassis Protection
IP54 Sealed Control Compartment Housing
Isolates sensitive logic control cards completely from harsh humid chemical air loops.

Cooling Method
Forced Independent Air Ducting System
High-velocity isolated cooling loops engineered cleanly to maximize semiconductor lifespans.

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout

System Topology Outline: Cross-sectional mapping of internal structural routing layouts and optimized functional power cell integration.

Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Blueprinting Matrix

Blueprint Adaptive
Built From Your Schematics & Plant Blueprints
Forward your mechanical blueprints or station layouts. Our engineering team will build custom enclosures to fit perfectly into your technical bays natively.
Patent No: ZL 2019 2 1905918.5
Proprietary High-Frequency Transformer Matrix
Incorporates elite magnetic core matrix engineering to direct massive energy with near-zero leakage inductance, heavily reducing heavy-power heat signatures.
Patent No: ZL 2019 3 0679510.X
Integrated Thermal Dissipation Copper Base
Patented copper heavy substrates route junction thermal vectors outward instantly, maximizing equipment system runtime parameters under constant continuous loads.
Isolated Bus
Fully Galvanic Sealed Controller Vault
Core microprocessor telemetry structures are entirely sealed away from plant vapors, blocking aggressive common-mode noise and ground loop feedback errors.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting.

Industrial rectifier centralized monitoring network system diagram with Master control and central server

Network Control System: Optical isolation hub with Modbus/Industrial Ethernet telemetry solution for centralized monitoring up to N≤32 clusters natively.

Industrial Site Deployment & Global Logistics

Step 01
Split-Modular Secure Shipping
Heavy-duty systems utilize split-modular configurations for limited site access. Units are sealed in ISPM-15 compliant sea-worthy wooden cases with moisture membranes to prevent maritime corrosion.
Step 02
International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering FOB port, CIF seaport, and global DDP factory-integration protocols.
Step 03
Engineering Audit & Commissioning Support
Complete engineering blueprints, circuit schematics, and busbar layouts are supplied for facility audits. Turnkey remote commissioning loops and tracking arrays are fully provided.
Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇
