Zinc Electrolysis 30000A 6V Industrial Metal Rectifier

High-capacity industrial switch-mode DC rectifier engineered for continuous non-ferrous hydrometallurgy and zinc electrowinning tank houses.

At JIETONG POWER (JT-POWER), we manufacture standardized heavy-power electrical systems built for maximum tonnage throughput. This standardized 30,000A 6V Zinc Electrolysis Rectifier delivers relentless constant current accuracy, utilizing robust structural isolation barriers to completely withstand aggressive ambient acid mists and high thermal loads.

✓ Ultimate SMPS Energy Conservation: High-frequency switch-mode matrix limits local dissipation parameters, driving an advanced Power Factor ≥ 0.95 at peak load to systematically reduce power overheads.
✓ Low-Impedance Copper Busbars: Premium heavy copper routing topologies optimize terminal conductivity, compressing heat signatures under continuous 30,000A full-load smelter workloads.
✓ Hermetic Acid Vapor Blockade: Encapsulated driver compartments shield critical microprocessor logic boards from airborne zinc sulfate or sulfuric acid droplets natively.
30000A Heavy Smelter Feed
High Efficiency PF ≥ 0.95
Acid Enclosure Shielded
Alt text: Heavy-duty rear copper busbars of JT-POWER 20000A high-current rectifier for copper electrowinning

Technical Specifications & Operational Matrix (6V 30000A Base)

*Heavy industrial performance attributes verified under full-load continuous factory testing limits.

Continuous Mass Amperage
Sustains a flat full-load continuous output of 30,000 Amperes and 6 Volts DC. Standardized framework supports parallel multi-cabinet synchronization to feed immense electrochemical potlines cleanly.
Advanced Power Factor Lock
Utilizes high-frequency switch-mode conversion matrices, keeping Power Factor ≥ 0.95 at max rated outputs. Drastically mitigates reactive line losses and overhead line stress on substation filters.
Stable Constant Waveforms
Regulates stable ripple coefficient thresholds ≤ 1% RMS across full operation scales, guaranteeing highly uniform zinc cathode crystalline growth metrics to drive up final deposit purity.
Central Room SCADA Link
Fully compliant with official CE standards. Integrates high-speed optically isolated communication ports supporting standard Modbus RTU or native Profinet protocols for smooth PLC linking.
Technical Parameter Grid Standard Industrial Specification Engineering Compliance Bounds
Rated DC Amperage 30000 Amperes (Continuous Load Output) Standardized parallel array scaling links up to 100,000A+
Rated DC Voltage 6 Volts DC Base Linear range tracking spanning smoothly from 0V to full 6V head
Power Factor (COSΦ) ≥ 0.95 (At Full Rated Continuous Output) Compresses system reactive burdens across heavy plant substations
Regulation Precision ≤ ±1% Constant Current Regulation Locks steady amperage densities against volatile anode distance shifts
Input Voltage Grid 3-Phase AC 380V / 415V / 480V, 50Hz/60Hz Standard universal line adaptation with pre-installed soft-starts
International Standard CE Attestation of Conformity Fully compliant with official EU LVD (2014/35/EU) & EMC (2014/30/EU)
Operating Cycle 100% Full-Load Continuous 24/7 Duty Engineered meticulously to run flawlessly inside heavy tank houses

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Alt text: Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout Equipment Structure Diagram: A clear understanding of the internal structure and functional components of the equipment.

Alt text: Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Custom Blueprinting Framework

Blueprint Adaptive

Built From Your Schematics & Plant Blueprints

Deploying a new industrial plant or restructuring existing bays? Simply forward us your mechanical blueprints or station layouts, and our engineering team will build custom enclosures to fit perfectly.

Patent No

Proprietary High-Frequency Transformer (Patent No: ZL 2019 2 1905918.5)

Incorporating our elite magnetic core matrix engineering, the system directs massive energies with near-zero leakage inductance, heavily reducing continuous cabinet heat dissipation boundaries.

Patent No

Integrated Thermal Dissipation Base (Patent No: ZL 2019 3 0679510.X)

Utilizing our patented copper heavy cooling substrate arrays, critical junction thermal vectors route outward instantly, expanding equipment lifetime margins under constant 24/7 industrial loads.

Isolated Bus

Fully Galvanic Sealed Controller Vault

Our core microprocessor systems are completely sealed away from plant vapors, blocking aggressive common-mode noise and cross-talk ground feedback errors natively.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting back to the primary industrial PLC master grid.


Industrial Site Deployment & Global Logistics

1. Split-Modular Secure Shipping
To ensure maritime safety and facilitate crane-lifting within space-limited facilities, our heavy-duty 8000A systems utilize split-modular enclosure configurations. Units are encapsulated within ISPM-15 compliant sea-worthy wooden cases, lined with industrial moisture-proof membranes to guard against high-salinity marine corrosion.
2. International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering global industrial sea-freight solutions, compliant with international trade codes including FOB port, CIF seaport, and full DDP factory-integration processes.
3. Engineering Audit & Commissioning Support
We provide complete engineering blueprints, circuit schematics, internal component lists, and busbar configuration data to facilitate facility audits. Turnkey remote commissioning support, custom reverse-polarity programming loops, and complete device tracking arrays are provided for factory scalability.
Alt text: Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇

Zinc Electrolysis 30000A 6V Industrial Metal Rectifier

High-capacity industrial switch-mode DC rectifier engineered for continuous non-ferrous hydrometallurgy and zinc electrowinning tank houses.

At JIETONG POWER (JT-POWER), we manufacture standardized heavy-power electrical systems built for maximum tonnage throughput. This standardized 30,000A 6V Zinc Electrolysis Rectifier delivers relentless constant current accuracy, utilizing robust structural isolation barriers to completely withstand aggressive ambient acid mists and high thermal loads.

✓ Ultimate SMPS Energy Conservation: High-frequency switch-mode matrix limits local dissipation parameters, driving an advanced Power Factor ≥ 0.95 at peak load to systematically reduce power overheads.
✓ Low-Impedance Copper Busbars: Premium heavy copper routing topologies optimize terminal conductivity, compressing heat signatures under continuous 30,000A full-load smelter workloads.
✓ Hermetic Acid Vapor Blockade: Encapsulated driver compartments shield critical microprocessor logic boards from airborne zinc sulfate or sulfuric acid droplets natively.

30000A HEAVY SMELTER FEED
HIGH EFFICIENCY PF ≥ 0.95
ACID ENCLOSURE SHIELDED

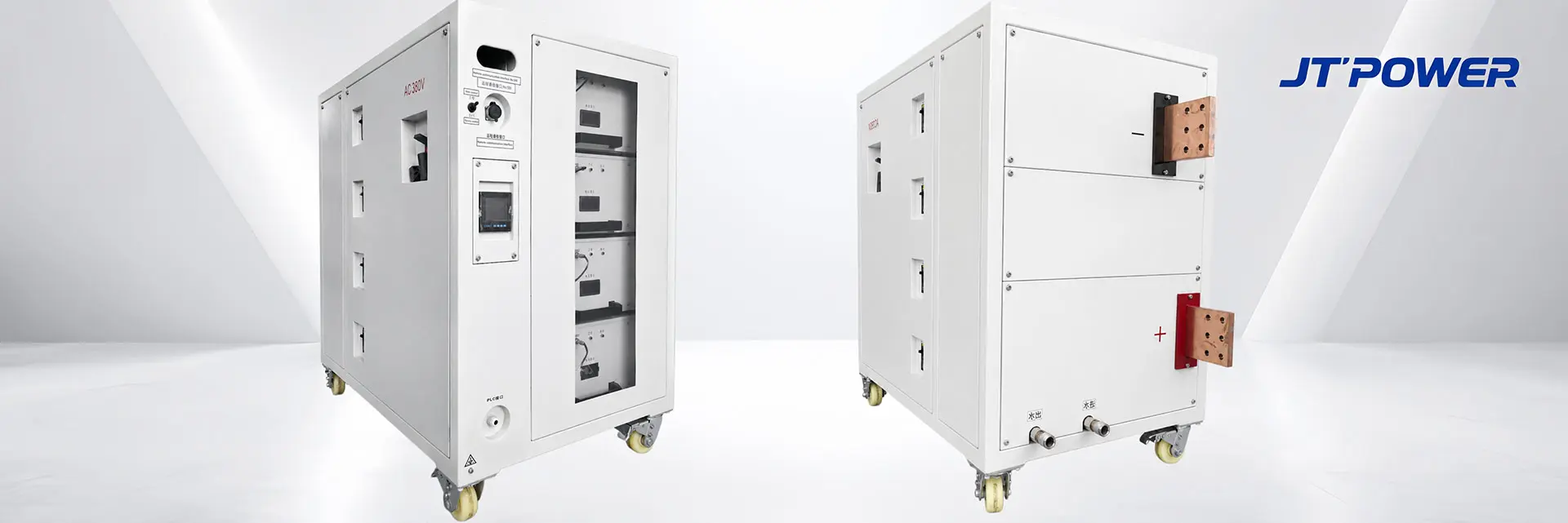

Heavy-duty rear copper busbars of JT-POWER 20000A high-current rectifier for copper electrowinning

Technical Specifications & Operational Matrix (6V 30000A Base)

*Heavy industrial performance attributes verified under full-load continuous factory testing limits.

Continuous Mass Amperage
Sustains a flat full-load continuous output of 30,000 Amperes and 6 Volts DC. Standardized framework supports parallel multi-cabinet synchronization to feed immense electrochemical potlines cleanly.

Advanced Power Factor Lock
Utilizes high-frequency switch-mode conversion matrices, keeping Power Factor ≥ 0.95 at max rated outputs. Drastically mitigates reactive line losses and overhead line stress on substation filters.

Stable Constant Waveforms
Regulates stable ripple coefficient thresholds ≤ 1% RMS across full operation scales, guaranteeing highly uniform zinc cathode crystalline growth metrics to drive up final deposit purity.

Central Room SCADA Link
Fully compliant with official CE standards. Integrates high-speed optically isolated communication ports supporting standard Modbus RTU or native Profinet protocols for smooth PLC linking.

Rated DC Amperage
30000 Amperes (Continuous Output)
Standardized parallel array scaling accommodates extensive zinc electrowinning smelting line topologies directly.

Rated DC Voltage
6 Volts DC (Constant Load Regulation)
Engineered precise operational window optimized perfectly for automated zinc tankhouse cellhouse deposition chemistry.

Input Voltage Boundary
380V / 415V / 480V AC (±10%, 3-Phase)
Universal heavy grid compliance thresholds built cleanly for overseas smelting facility connectivity.

Target Conversion Efficiency
≥ 92% at Max Rated Power Scale
High-frequency switch-mode matrix topology minimizes local thermal dissipation parameters flawlessly.

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout

System Topology Outline: Cross-sectional mapping of internal structural routing layouts and optimized functional power cell integration.

Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Blueprinting Matrix

Blueprint Adaptive
Built From Your Schematics & Plant Blueprints
Forward your mechanical blueprints or station layouts. Our engineering team will build custom enclosures to fit perfectly into your technical bays natively.
Patent No: ZL 2019 2 1905918.5
Proprietary High-Frequency Transformer Matrix
Incorporates elite magnetic core matrix engineering to direct massive energy with near-zero leakage inductance, heavily reducing heavy-power heat signatures.
Patent No: ZL 2019 3 0679510.X
Integrated Thermal Dissipation Copper Base
Patented copper heavy substrates route junction thermal vectors outward instantly, maximizing equipment system runtime parameters under constant continuous loads.
Isolated Bus
Fully Galvanic Sealed Controller Vault
Core microprocessor telemetry structures are entirely sealed away from plant vapors, blocking aggressive common-mode noise and ground loop feedback errors.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting.

Industrial rectifier centralized monitoring network system diagram with Master control and central server

Network Control System: Optical isolation hub with Modbus/Industrial Ethernet telemetry solution for centralized monitoring up to N≤32 clusters natively.

Industrial Site Deployment & Global Logistics

Step 01
Split-Modular Secure Shipping
Heavy-duty systems utilize split-modular configurations for limited site access. Units are sealed in ISPM-15 compliant sea-worthy wooden cases with moisture membranes to prevent maritime corrosion.
Step 02
International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering FOB port, CIF seaport, and global DDP factory-integration protocols.
Step 03
Engineering Audit & Commissioning Support
Complete engineering blueprints, circuit schematics, and busbar layouts are supplied for facility audits. Turnkey remote commissioning loops and tracking arrays are fully provided.
Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇
Back
JT-POWER 6V 30000A high-current zinc electrolysis DC rectifier system with synchronous power supply control, enclosed vertical cabinet, and energy-saving SiC topologies for metal refining.
Leave Message

Related Products

Direct Engineering Hotline
+86-138-0268-7354
Global Sales Support
info@jt-rectifier.com
Technical Support Matrix
info@jt-rectifier.com
Proceed to Official Inquiry Page

Response within 24 hours
