Gold Refining 500A 150V High Precision DC Power

High-precision high-voltage standard SMPS DC power supply engineered for gold electro-refining and precious metal electrolysis cells.

At JIETONG POWER (JT-POWER), we manufacture high-accuracy stabilized power systems for critical precious metal separation tracks. This standardized 500A 150V Gold Refining DC System locks down constant current boundaries with micro-level ripple filtering, fundamentally securing uniform crystalline gold powder growth and maximizing Au recovery metrics up to 99.99% purity.

✓ Micro-Ripple Waveform Suppression: Integrated multi-stage LC smooth filtration loops push ripple thresholds ≤ 0.5% RMS, preventing anode slime peeling flaws and secondary electrolyte side reactions.
✓ Rigid ±0.1% Current Tracking: Advanced microprocessor constant current deadlock logic blocks output drifting modes despite dramatic concentration variations or aqua regia resistance shifts.
✓ 150V High Voltage Security Layout: Standardized with extensive optical isolation barriers, lightning-fast over-voltage surge clamps, and active short-circuit protection circuits to secure operation lines safely.

±0.1% High Precision CC
Ultra-Low Ripple ≤ 0.5%
150V High Voltage Safe

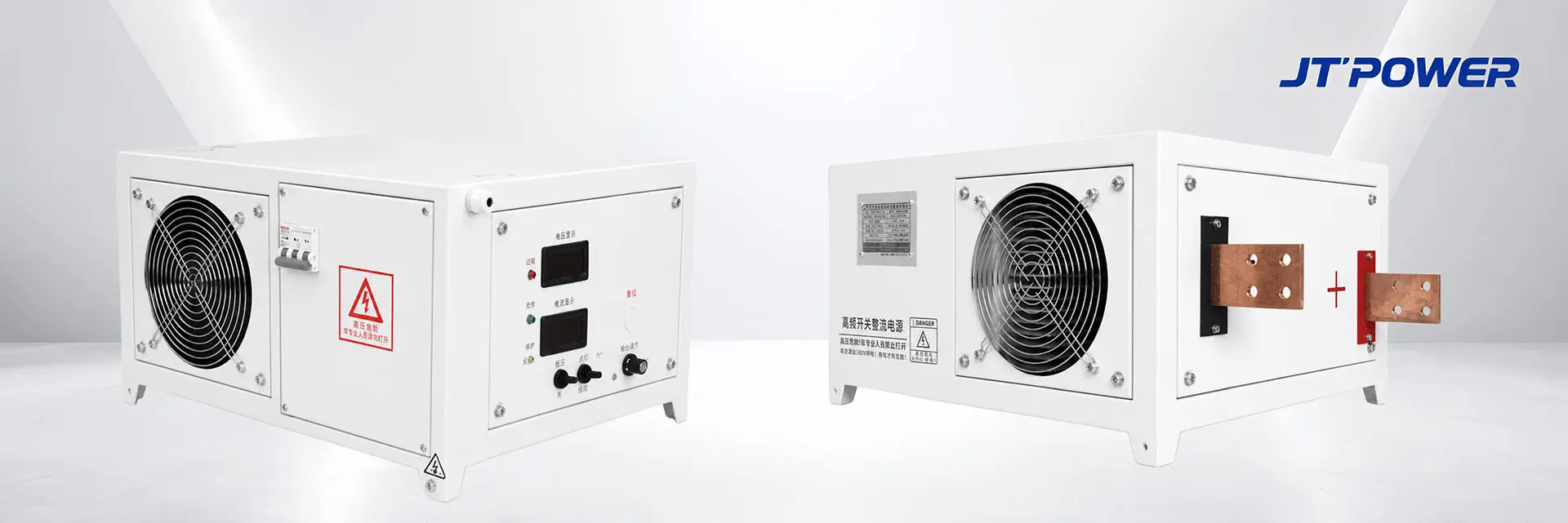

Alt text: Rear copper busbars of JT-POWER 500A power supply for precision gold refining electroform applications

Technical Specifications & Operational Matrix (150V 500A Base)

*Heavy industrial performance attributes verified under full-load continuous factory testing limits.

High-Precision Microprocessor Core
Equipped with heavy steady constant current tracking parameters, holding an unyielding tracking precision threshold ≤ ±0.1% to guarantee smooth electrochemical metal grain formation loops.

Micro-Ripple Smoothing Filters
Constructed with multi-stage low-pass LC choke filter topologies, restricting ripples ≤ 0.5% RMS across all continuous loads, safeguarding chemical concentration layers from accidental breakdown modes.

High Voltage Transient Resilience
Sustains robust switch-mode linear power parameters up to 150V DC headroom. Natively cushions dynamic input spikes or sudden cell tank loading alterations without inducing system trips.

SCADA Network Digitalization
Fully certified under official CE LVD & EMC directives. Integrates an optically isolated communication interface supporting Modbus RTU (RS485) or standard Profinet for quick linking to automated PLC boards.

Technical Parameter Grid Standard Industrial Specification Engineering Compliance Bounds
Rated DC Voltage 150 Volts DC Maximum Linear scale regulation spanning from 0V up to full 150V head
Rated DC Amperage 500 Amperes (Continuous Load Output) Standard modular parallel scaling matching multi-tank potlines
Steady Precision ≤ ±0.1% Constant Current Regulation Blocks macro electrical fluctuations across aqua regia tracks
Ripple Coefficient ≤ 0.5% RMS (Across Full Rated Load) Multi-stage precision LC low-pass smoothing filters integrated
Input Main Line 3-Phase AC 380V / 415V / 480V, 50Hz/60Hz Standard universal grid adaptation with pre-installed soft-starts
International Standard CE Attestation of Conformity Fully compliant with official EU LVD (2014/35/EU) & EMC (2014/30/EU)
Chassis Protection IP54 Sealed Control Compartment Housing Isolates sensitive logic components from airborne noise cross-talk

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Alt text: Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout Equipment Structure Diagram: A clear understanding of the internal structure and functional components of the equipment.

Alt text: Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Custom Blueprinting Framework

Blueprint Adaptive

Built From Your Schematics & Plant Blueprints

Deploying a new industrial plant or restructuring existing bays? Simply forward us your mechanical blueprints or station layouts, and our engineering team will build custom enclosures to fit perfectly.

Patent No

Proprietary High-Frequency Transformer (Patent No: ZL 2019 2 1905918.5)

Incorporating our elite magnetic core matrix engineering, the system directs massive energies with near-zero leakage inductance, heavily reducing continuous cabinet heat dissipation boundaries.

Patent No

Integrated Thermal Dissipation Base (Patent No: ZL 2019 3 0679510.X)

Utilizing our patented copper heavy cooling substrate arrays, critical junction thermal vectors route outward instantly, expanding equipment lifetime margins under constant 24/7 industrial loads.

Isolated Bus

Fully Galvanic Sealed Controller Vault

Our core microprocessor systems are completely sealed away from plant vapors, blocking aggressive common-mode noise and cross-talk ground feedback errors natively.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting back to the primary industrial PLC master grid.


Industrial Site Deployment & Global Logistics

1. Split-Modular Secure Shipping
To ensure maritime safety and facilitate crane-lifting within space-limited facilities, our heavy-duty 8000A systems utilize split-modular enclosure configurations. Units are encapsulated within ISPM-15 compliant sea-worthy wooden cases, lined with industrial moisture-proof membranes to guard against high-salinity marine corrosion.
2. International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering global industrial sea-freight solutions, compliant with international trade codes including FOB port, CIF seaport, and full DDP factory-integration processes.
3. Engineering Audit & Commissioning Support
We provide complete engineering blueprints, circuit schematics, internal component lists, and busbar configuration data to facilitate facility audits. Turnkey remote commissioning support, custom reverse-polarity programming loops, and complete device tracking arrays are provided for factory scalability.
Alt text: Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇

Gold Refining 500A 150V High Precision DC Power

High-precision high-voltage standard SMPS DC power supply engineered for gold electro-refining and precious metal electrolysis cells.

At JIETONG POWER (JT-POWER), we manufacture high-accuracy stabilized power systems for critical precious metal separation tracks. This standardized 500A 150V Gold Refining DC System locks down constant current boundaries with micro-level ripple filtering, fundamentally securing uniform crystalline gold powder growth and maximizing Au recovery metrics up to 99.99% purity.

✓ Micro-Ripple Waveform Suppression: Integrated multi-stage LC smooth filtration loops push ripple thresholds ≤ 0.5% RMS, preventing anode slime peeling flaws and secondary electrolyte side reactions.
✓ Rigid ±0.1% Current Tracking: Advanced microprocessor constant current deadlock logic blocks output drifting modes despite dramatic concentration variations or aqua regia resistance shifts.
✓ 150V High Voltage Security Layout: Standardized with extensive optical isolation barriers, lightning-fast over-voltage surge clamps, and active short-circuit protection circuits to secure operation lines safely.

±0.1% HIGH PRECISION CC
ULTRA-LOW RIPPLE ≤ 0.5%
150V HIGH VOLTAGE SAFE
Rear copper busbars of JT-POWER 500A power supply for precision gold refining electroform applications

Technical Specifications & Operational Matrix (150V 500A Base)

*Heavy industrial performance attributes verified under full-load continuous factory testing limits.

High-Precision Microprocessor Core
Equipped with heavy steady constant current tracking parameters, holding an unyielding tracking precision threshold ≤ ±0.1% to guarantee smooth electrochemical metal grain formation loops.

Micro-Ripple Smoothing Filters
Constructed with multi-stage low-pass LC choke filter topologies, restricting ripples ≤ 0.5% RMS across all continuous loads, safeguarding chemical concentration layers from accidental breakdown modes.

High Voltage Transient Resilience
Sustains robust switch-mode linear power parameters up to 150V DC headroom. Natively cushions dynamic input spikes or sudden cell tank loading alterations without inducing system trips.

SCADA Network Digitalization
Fully certified under official CE LVD & EMC directives. Integrates an optically isolated communication interface supporting Modbus RTU (RS485) or standard Profinet for quick linking to automated PLC boards.

Technical Parameter Grid
Rated DC Voltage: 150 Volts DC Maximum
Linear scale regulation spanning from 0V up to full 150V head smoothly.

Standard Industrial Specification
Rated DC Amperage: 500 Amperes (Continuous Load Output)
Standard modular parallel scaling matching multi-tank potlines cleanly.

Engineering Compliance Bounds
Steady Precision: ≤ ±0.1% Constant Current Regulation
Blocks macro electrical fluctuations across aqua regia tracks natively.

Ripple Matrix
Ripple Coefficient: ≤ 0.5% RMS (Across Full Rated Load)
Multi-stage precision LC low-pass smoothing filters integrated inside cabinet framework.

Input Line Sync
Input Main Line: 3-Phase AC 380V / 415V / 480V, 50Hz/60Hz
Standard universal grid adaptation with pre-installed buffer soft-starts relays safely.

International Certification
CE Attestation of Conformity Standard
Fully compliant with official European LVD (2014/35/EU) & EMC (2014/30/EU) Directives.

Chassis Protection
IP54 Sealed Control Compartment Housing
Isolates sensitive logic components from airborne noise cross-talk or sulfuric vapors loop natively.

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout

System Topology Outline: Cross-sectional mapping of internal structural routing layouts and optimized functional power cell integration.

Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Blueprinting Matrix

Blueprint Adaptive
Built From Your Schematics & Plant Blueprints
Forward your mechanical blueprints or station layouts. Our engineering team will build custom enclosures to fit perfectly into your technical bays natively.
Patent No: ZL 2019 2 1905918.5
Proprietary High-Frequency Transformer Matrix
Incorporates elite magnetic core matrix engineering to direct massive energy with near-zero leakage inductance, heavily reducing heavy-power heat signatures.
Patent No: ZL 2019 3 0679510.X
Integrated Thermal Dissipation Copper Base
Patented copper heavy substrates route junction thermal vectors outward instantly, maximizing equipment system runtime parameters under constant continuous loads.
Isolated Bus
Fully Galvanic Sealed Controller Vault
Core microprocessor telemetry structures are entirely sealed away from plant vapors, blocking aggressive common-mode noise and ground loop feedback errors.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting.

Industrial rectifier centralized monitoring network system diagram with Master control and central server

Network Control System: Optical isolation hub with Modbus/Industrial Ethernet telemetry solution for centralized monitoring up to N≤32 clusters natively.

Industrial Site Deployment & Global Logistics

Step 01
Split-Modular Secure Shipping
Heavy-duty systems utilize split-modular configurations for limited site access. Units are sealed in ISPM-15 compliant sea-worthy wooden cases with moisture membranes to prevent maritime corrosion.
Step 02
International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering FOB port, CIF seaport, and global DDP factory-integration protocols.
Step 03
Engineering Audit & Commissioning Support
Complete engineering blueprints, circuit schematics, and busbar layouts are supplied for facility audits. Turnkey remote commissioning loops and tracking arrays are fully provided.
Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇
Back
JT-POWER 150V 500A high precision DC power supply for gold refining and precious metal electrolysis, featuring stable chassis engineering and energy-saving SiC topologies.
Leave Message

Related Products

Direct Engineering Hotline
+86-138-0268-7354
Global Sales Support
info@jt-rectifier.com
Technical Support Matrix
info@jt-rectifier.com
Proceed to Official Inquiry Page

Response within 24 hours

Section 1: Application & Plating Process FAQ 🛰️
How does this 150V high-voltage rectifier optimize gold purity during aqua regia electrolysis?
Gold refining via Wohlwill or custom electrolytic cells requires precise high-voltage thresholds to overcome chemical resistance. Our system delivers ultra-stable DC tracking to ensure the flawless precipitation of 99.99% pure gold cathodes, acting as a premier gold refining high precision power supply block.
What is the ripple factor at full 150V 500A load, and how does it prevent sludge contamination?
The current ripple is strictly locked at ≤0.5% RMS. Minimizing ripple prevents voltage spikes that cause silver and base metals to dissolve and contaminate the gold cathode, establishing its position as a top-tier low ripple gold electrolysis rectifier.
Can this power supply handle the high-resistance chemical boundaries of precious metal refining?
Yes, seamlessly. Delivering up to 150V allows this rectifier to penetrate high-resistance electrolytic solutions effortlessly, maintaining an optimal current density required by heavy-duty precious metal refining industrial rectifiers.
Is this 500A precision DC unit rated for 24/7 continuous metal extraction runs?
Engineered with a 100% continuous duty cycle, the power assembly utilizes oversized thermal margins to run at maximum output under non-stop refinery conditions, serving as a robust continuous duty gold electrorefining rectifier.
Does this precision system meet strict compliance data tracking for bullion audits?
Yes. Its ultra-precise sensor feedback loop keeps voltage and current drift near zero, outputting the exact, uncorrupted telemetry required to pass strict international Nadcap compliant precious metal rectifiers auditing standards.
Section 2: Hardware Architecture & Enclosure FAQ 🔧
What high-frequency topology drives such a high voltage-to-current ratio safely?
We utilize premium Silicon Carbide (SiC) MOSFET switches operating at an elevated 100kHz frequency. This enables microsecond-level gating and immense power density within our high-end high frequency SiC precision rectifiers line.
How does the enclosure safeguard sensitive electronics from toxic acid mist and chlorine gas?
The chassis separates electronics into an isolated air-duct zone treated with multi-layer epoxy anti-corrosion barriering, outlasting standard boxes as a dedicated anti corrosion gold refining power supply.
What transformer core technology manages the continuous 75kW load?
The internal block features heavy-duty nanocrystalline EE130 cores paired with multi-strand Litz wire windings to eliminate skin effect and heat bottlenecks in this specialized high switching transformer power supply cabinet.
Are the 500A internal output terminals robust enough to prevent thermal drifting?
Yes. The output is terminated via high-purity T2 red copper busbars finished with heavy silver plating, locking contact resistance and keeping full-load temperature delta at ΔT≤30°C for elite heavy duty copper busbar rectifiers.
Does the compact hardware structure allow for space-saving rack mount integration?
Absolutely. By packing 75kW of raw power into a high-density footprint, the system can be integrated effortlessly into standard configurations, operating as a space-efficient rack mountable industrial rectifier block.
Section 3: Digital Controls & Automation FAQ 🔬
Which microcontroller hardware architecture drives the fine-tuning regulation loops?
The control board is governed by an industrial high-speed microcontroller core, executing ultra-fast PID loops with zero phase jitter to outclass old analog microcontroller programmable gold rectifiers trigger cards.
How easily does this precision power supply integrate into automated refinery PLCs?
The system natively carries an isolated RS485 Modbus-RTU network interface and can be upgraded to Profinet nodes, allowing flawless integration into global Profinet compatible digital rectifier control rooms.
What is the absolute voltage and current setting resolution on the HMI panel?
The high-contrast panel allows micro-tuning adjustments down to 0.1V and 0.1A. This gives refiners the strict parameter control necessary for an elite precision digital precious metal power supply terminal.
How fast does the short-circuit protection matrix execute if a short occurs in the cell?
The digital logic senses overcurrent thresholds instantly and shuts down driving pulses in under 10 microseconds, providing hardware-level safety standard in elite fast response protective rectifiers.
Does the firmware feature a built-in Ampere-Hour meter for tracking gold yield deposition?
Yes, a high-precision digital Ampere-Hour tracking routine is embedded natively, allowing operators to calculate exact metal accumulation via smart ampere hour control rectifiers pipelines.
