10000A 18V Industrial Hardcoat Anodizing Rectifier | Standard Type III Aluminum Oxide DC Power Supply

Optimized for Type III hardcoat aluminum oxide lines, automated finishing tracks, and rigorous high-power anodizing configurations.

The JIETONG POWER 10000A 18V Standard Industrial Rectifier delivers unyielding 24/7 reliability. Driven by premium discrete Silicon Carbide (SiC) MOSFET module blocks, this high-frequency SMPS platform ensures superior film hardness uniformity.

✓ Grid-Friendly Soft-Start Matrix: Integrated software-driven pre-charging circuitry controls full rush inputs smoothly, heavily mitigating transformer stress and grid dropouts completely.
✓ Type III Ramp Process Automation: Native multi-step programmable current profile microprocessors regulate thickness curves perfectly, defending dense batch extrusions from extreme edge burning defects.
✓ Industrial SCADA Integration: Standard isolated RS485 communication node layers connect effortlessly via digital optocouplers into master plant Siemens or Omron PLC centralized monitoring networks.

Grid-Friendly Soft-Start
Type III Ramp Automation
SiC Switch Topologies

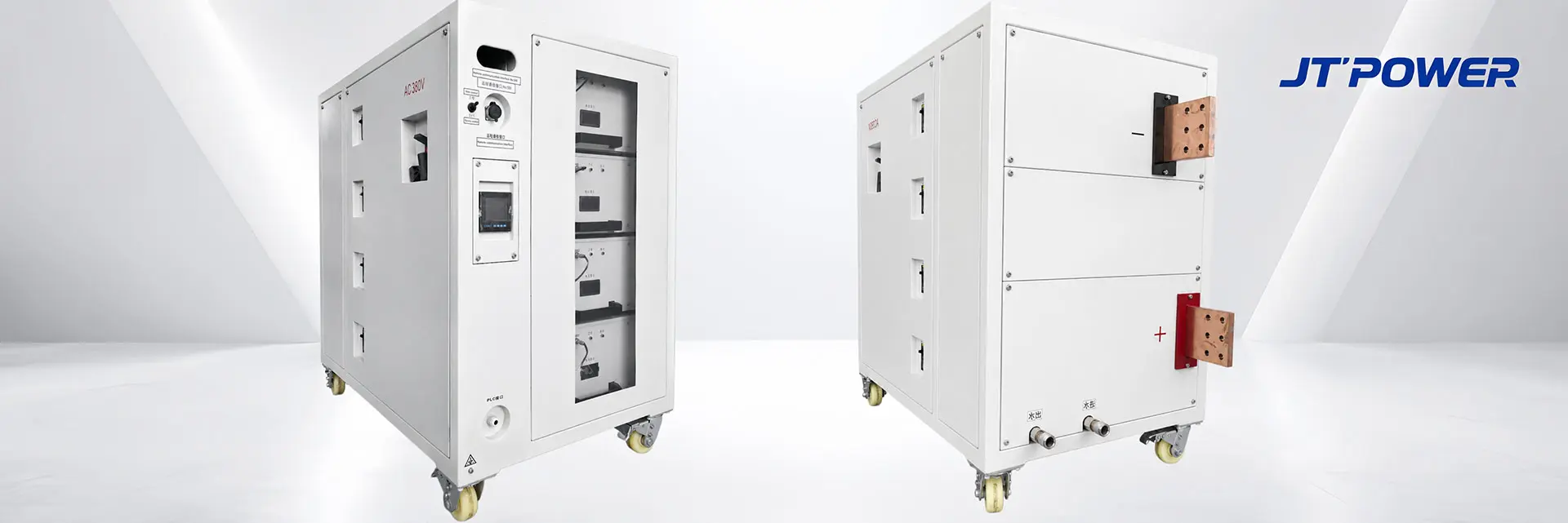

JT-POWER 10000A 18V custom high power rectifier for industrial hardcoat anodizing applications

Standard Engineering Technical Specification

*Standardized high-power hardware configurations built for rigorous 24/7 industrial operational cycles.

Grid Inrush Soft-Start
Integrated software-driven pre-charging soft-start circuitry controls full rush inputs smoothly, heavily mitigating transformer stress and grid dropouts completely.

Silicon Carbide (SiC) Gates
Standard discrete Silicon Carbide (SiC) MOSFET hardware nodes operate with elite switching frequencies, maximizing active power factors and lowering electricity expenditure.

Automated Process Slopes
Pre-installed multi-step programmable current profile microprocessors regulate thickness curves perfectly, defending dense batch extrusions from extreme edge burning defects.

Industrial Bus Integration
Standard isolated RS485 communication node layers connect effortlessly into master plant Siemens or Omron PLC centralized monitoring SCADA architectures.

Technical Parameters Standard Configuration Engineering Parametric Range
Rated Output Current Scope 0 — 10000 Amperes (Fully Adjustable) High-resolution step scaling matched for continuous automated lines
Rated Output Voltage Scope 0 — 18 Volts DC Headroom Constant Current (CC) / Constant Voltage (CV) automatic switches
Inrush Surge Protection Intelligent Soft-Start Module Enabled 0 — 10 seconds programmable linear ramp to shield local grids
International Certification CE Attestation of Conformity Fully Compliant with EU LVD (2014/35/EU) & EMC (2014/30/EU)
Regulation Accuracy ≤ ±0.1% Full Scale Extreme regulation stability tailored for automotive coating lines
Ripple Coefficient ≤ 1% RMS (Full Output Range) Pure wave filtering optimized for uniform film thickness layouts
Core Power Semiconductor Selectable Heavy IGBT / Discrete SiC MOSFET High-frequency electronic switch-mode power topologies module
Power Factor (COSΦ) ≤ 0.95 (At Full Rated 10000A Load) High-efficiency architecture minimizing reactive loss indicators
Thermal Framework Forced Air Cooling / Industrial Liquid-Cooling Dual certified frameworks with isolated internal independent ducts

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Alt text: Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout Equipment Structure Diagram: A clear understanding of the internal structure and functional components of the equipment.

Alt text: Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Custom Blueprinting Framework

Blueprint Adaptive

Built From Your Schematics & Plant Blueprints

Deploying a new industrial plant or restructuring existing bays? Simply forward us your mechanical blueprints or station layouts, and our engineering team will build custom enclosures to fit perfectly.

Patent No

Proprietary High-Frequency Transformer (Patent No: ZL 2019 2 1905918.5)

Incorporating our elite magnetic core matrix engineering, the system directs massive energies with near-zero leakage inductance, heavily reducing continuous cabinet heat dissipation boundaries.

Patent No

Integrated Thermal Dissipation Base (Patent No: ZL 2019 3 0679510.X)

Utilizing our patented copper heavy cooling substrate arrays, critical junction thermal vectors route outward instantly, expanding equipment lifetime margins under constant 24/7 industrial loads.

Isolated Bus

Fully Galvanic Sealed Controller Vault

Our core microprocessor systems are completely sealed away from plant vapors, blocking aggressive common-mode noise and cross-talk ground feedback errors natively.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting back to the primary industrial PLC master grid.


Industrial Site Deployment & Global Logistics

1. Split-Modular Secure Shipping
To ensure maritime safety and facilitate crane-lifting within space-limited facilities, our heavy-duty 8000A systems utilize split-modular enclosure configurations. Units are encapsulated within ISPM-15 compliant sea-worthy wooden cases, lined with industrial moisture-proof membranes to guard against high-salinity marine corrosion.
2. International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering global industrial sea-freight solutions, compliant with international trade codes including FOB port, CIF seaport, and full DDP factory-integration processes.
3. Engineering Audit & Commissioning Support
We provide complete engineering blueprints, circuit schematics, internal component lists, and busbar configuration data to facilitate facility audits. Turnkey remote commissioning support, custom reverse-polarity programming loops, and complete device tracking arrays are provided for factory scalability.
Alt text: Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇

10000A 18V Industrial Hardcoat Anodizing Rectifier | Standard Type III Aluminum Oxide DC Power Supply

Optimized for Type III hardcoat aluminum oxide lines, automated finishing tracks, and rigorous high-power anodizing configurations.

The JIETONG POWER 10000A 18V Standard Industrial Rectifier delivers unyielding 24/7 reliability. Driven by premium discrete Silicon Carbide (SiC) MOSFET module blocks, this high-frequency SMPS platform ensures superior film hardness uniformity.

✓ Grid-Friendly Soft-Start Matrix: Integrated software-driven pre-charging circuitry controls full rush inputs smoothly, heavily mitigating transformer stress and grid dropouts completely.
✓ Type III Ramp Process Automation: Native multi-step programmable current profile microprocessors regulate thickness curves perfectly, defending dense batch extrusions from extreme edge burning defects.
✓ Industrial SCADA Integration: Standard isolated RS485 communication node layers connect effortlessly via digital optocouplers into master plant Siemens or Omron PLC centralized monitoring networks.

GRID-FRIENDLY SOFT-START
TYPE III RAMP AUTOMATION
SIC SWITCH TOPOLOGIES
JT-POWER 10000A 18V custom high power rectifier for industrial hardcoat anodizing applications

Standard Engineering Technical Specification

*Standardized high-power hardware configurations built for rigorous 24/7 industrial operational cycles.

Grid Inrush Soft-Start
Integrated software-driven pre-charging soft-start circuitry controls full rush inputs smoothly, heavily mitigating transformer stress and grid dropouts completely.

Silicon Carbide (SiC) Gates
Standard discrete Silicon Carbide (SiC) MOSFET hardware nodes operate with elite switching frequencies, maximizing active power factors and lowering electricity expenditure.

Automated Process Slopes
Pre-installed multi-step programmable current profile microprocessors regulate thickness curves perfectly, defending dense batch extrusions from extreme edge burning defects.

Industrial Bus Integration
Standard isolated RS485 communication node layers connect effortlessly into master plant Siemens or Omron PLC centralized monitoring SCADA architectures.

Rated Output Current Scope
0 — 10000 Amperes (Fully Adjustable)
High-resolution step scaling matched cleanly for continuous automated lines.

Rated Output Voltage Scope
0 — 18 Volts DC Headroom
Constant Current (CC) / Constant Voltage (CV) automatic switches natively.

Inrush Surge Protection
Intelligent Soft-Start Module
0 — 10 seconds programmable linear ramp parameters to shield local grids.

International Certification
CE Attestation of Conformity
Fully Compliant with official EU LVD (2014/35/EU) & EMC (2014/30/EU) specifications.

Regulation Accuracy
≤ ±0.1% Full Scale Output
Extreme regulation stability tailored cleanly for automated automotive coating lines.

Ripple Coefficient
≤ 1% RMS (Full Output Range)
Pure wave filtering optimized fully for uniform film thickness profiles natively.

Core Power Semiconductor
Heavy IGBT / Discrete SiC MOSFET Option
High-frequency electronic switch-mode power topologies module configurations.

Power Factor (COSΦ)
≤ 0.95 (At Full Rated 10000A Load)
High-efficiency architecture minimizing reactive loss indicators across heavy substation grids.

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout

System Topology Outline: Cross-sectional mapping of internal structural routing layouts and optimized functional power cell integration.

Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Blueprinting Matrix

Blueprint Adaptive
Built From Your Schematics & Plant Blueprints
Forward your mechanical blueprints or station layouts. Our engineering team will build custom enclosures to fit perfectly into your technical bays natively.
Patent No: ZL 2019 2 1905918.5
Proprietary High-Frequency Transformer Matrix
Incorporates elite magnetic core matrix engineering to direct massive energy with near-zero leakage inductance, heavily reducing heavy-power heat signatures.
Patent No: ZL 2019 3 0679510.X
Integrated Thermal Dissipation Copper Base
Patented copper heavy substrates route junction thermal vectors outward instantly, maximizing equipment system runtime parameters under constant continuous loads.
Isolated Bus
Fully Galvanic Sealed Controller Vault
Core microprocessor telemetry structures are entirely sealed away from plant vapors, blocking aggressive common-mode noise and ground loop feedback errors.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting.

Industrial rectifier centralized monitoring network system diagram with Master control and central server

Network Control System: Optical isolation hub with Modbus/Industrial Ethernet telemetry solution for centralized monitoring up to N≤32 clusters natively.

Industrial Site Deployment & Global Logistics

Step 01
Split-Modular Secure Shipping
Heavy-duty systems utilize split-modular configurations for limited site access. Units are sealed in ISPM-15 compliant sea-worthy wooden cases with moisture membranes to prevent maritime corrosion.
Step 02
International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering FOB port, CIF seaport, and global DDP factory-integration protocols.
Step 03
Engineering Audit & Commissioning Support
Complete engineering blueprints, circuit schematics, and busbar layouts are supplied for facility audits. Turnkey remote commissioning loops and tracking arrays are fully provided.
Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇
Back
JT-POWER 18V 10000A custom heavy-duty hardcoat anodizing DC rectifier system with modular cabinet design, PLC interface, and SiC power topologies for aluminum surface treatment lines.
Leave Message

Related Products

Direct Engineering Hotline
+86-138-0268-7354
Global Sales Support
info@jt-rectifier.com
Technical Support Matrix
info@jt-rectifier.com
Proceed to Official Inquiry Page

Response within 24 hours

Section 1: Application & Plating Process FAQ 🛰️
Does this 10000A 18V rectifier support the stringent parameters required for MIL-A-8625 Type III hardcoating?
Yes, absolutely. Hardcoat anodizing requires extreme current density sustained over cold electrolyte conditions. Our system provides precision voltage and current ramp profiles to prevent burning, making it the premier choice for MIL-A-8625 hardcoat anodizing rectifiers in defense applications.
How does the low ripple output optimize the micro-hardness and wear resistance of the oxide layer?
By keeping the output current ripple factor tightly regulated at ≤1%, this system ensures uniform, high-density cell structures. This eliminates structural micro-cracks and pushes film hardness to its maximum threshold for low ripple 10000A rectifiers.
Can this 18V power supply handle the rapid impedance spikes common in thick film hardcoat processes?
Yes. As the non-conductive oxide film grows up to 100 microns, tank resistance climbs drastically. The integrated microsecond feedback loop dynamically adjusts the voltage ceiling to maintain a flawless aluminum anodizing energy saving power supply line.
Is this custom rectifier engineered to sustain continuous 100% full-load operations?
Engineered specifically for heavy-duty industrial environments, our internal component topologies are rated for 24/7 non-stop maximum current output, defining a benchmarking continuous duty electroplating rectifiers framework.
Does this 10000A system meet aerospace Nadcap quality tracking compliance?
Yes, the control architecture features ultra-precise sensor calibration and continuous parameter data logging, fully aligning with the stringent reporting mandates required by Nadcap compliant industrial rectifiers.
Section 2: Hardware Architecture & Enclosure FAQ 🔧
What are the operational safety benefits of using a pure water-cooled enclosure for an 180kW system?
To survive the corrosive acid mists of hardcoat anodizing shops, the unit features an IP54 hermetically sealed water-cooling chassis. It completely isolates internal electronic components from ambient vapors, serving as a true water cooled energy saving rectifier.
How do the output copper busbars manage a massive 10000A load without overheating?
The machine incorporates oversized, high-purity T2 red copper busbars designed with conservative current density limits. This locks full-load temperature rise within ΔT≤30°C, a staple of our heavy duty copper busbar rectifiers.
What are the hardware benefits of migrating from standard IGBTs to Silicon Carbide topology?
By adapting high-frequency Silicon Carbide (SiC) MOSFET configurations switching at 100kHz, the system pushes conversion efficiency past 93%, establishing a highly robust high efficiency Silicon Carbide rectifiers block.
What transformer core technology handles the continuous high-frequency pulse switching stress?
We deploy heavy-duty EE130 nanocrystalline cores wound with multi-strand Litz wire. This configuration minimizes skin effect and eliminates magnetic core saturation under non-stop loads for a high frequency transformer switching power supply.
Can this 10000A hardware design be configured with an N+1 modular redundancy layout?
Yes, absolutely. For high-priority continuous processing lines, independent sub-modules can be parallelized to share the load. If one module trips, the remaining units adjust seamlessly to provide modular high power switching rectifiers uptime.
Section 3: Digital Controls & Automation FAQ 🔬
Which digital communication protocols are supported for automated PLC network integration?
The main control board natively supports isolated RS485 Modbus-RTU networks and can be upgraded to Profinet or Ethernet nodes, ensuring low-latency remote deployment over a Profinet programmable industrial rectifiers grid.
What hardware processor core controls the precise pulse and voltage ramping sequences?
The control architecture is driven by a high-speed industrial microcontroller core, executing complex PID loops with zero thermal component drifting compared to old analog microcontroller control electroplating rectifiers cards.
How fast does the short-circuit protection matrix respond to accidental tank arc faults?
The digital control loop senses load deviations instantly and executes a hardware-level pulse clamp in under 10 microseconds, delivering unmatched safety standard in elite fast response pulse switching rectifiers.
Is the rectifier ready for smart factory centralized SCADA tracking and logging?
Yes, all real-time parameters, historical runtime graphs, and diagnostic fault codes are fully mapped to accessible internal registers, allowing effortless remote monitoring via global SCADA compatible smart rectifiers frameworks.
Will starting a 180kW rectifier cause dangerous inrush voltage drops in the factory grid?
Not at all. The automated digital control system executes a smooth, programmable soft-start sequence that limits initial current spikes, fulfilling the protection promises of soft start high current rectifiers.
