Electrocoagulation 8000A 15V Water Treatment Rectifier

High-efficiency heavy industrial DC rectifier engineered for automated electrocoagulation and electroflotation systems.

At JIETONG POWER (JT-POWER), we manufacture standardized high-capacity electrical architectures for worldwide water purification plants. This heavy-power 8,000A Electrocoagulation Rectifier integrates robust solid-state automatic polarity reversal, designed natively to self-clean parallel electrode plates and run 24/7 without current attenuation.

✓ Automatic Polarity Reversal: Microprocessor-controlled solid-state forward/reverse switching dynamically strips away calcium-magnesium scaling layers, maximizing sacrificial anode lifetime bounds.
✓ Adaptive Constant Current: Advanced DSP control tracking blocks system trips when water conductivity metrics fluctuate heavily due to chemical dosing drops or surge loading.
✓ Heavy IP54 Process Enclosure: Sealed control compartments totally isolate sensitive driver nodes from humid wastewater ambient air, securing continuous structural integrity.
Polarity Reversal Switch
8000A / 15V Continuous
IP54 Harsh Environmental

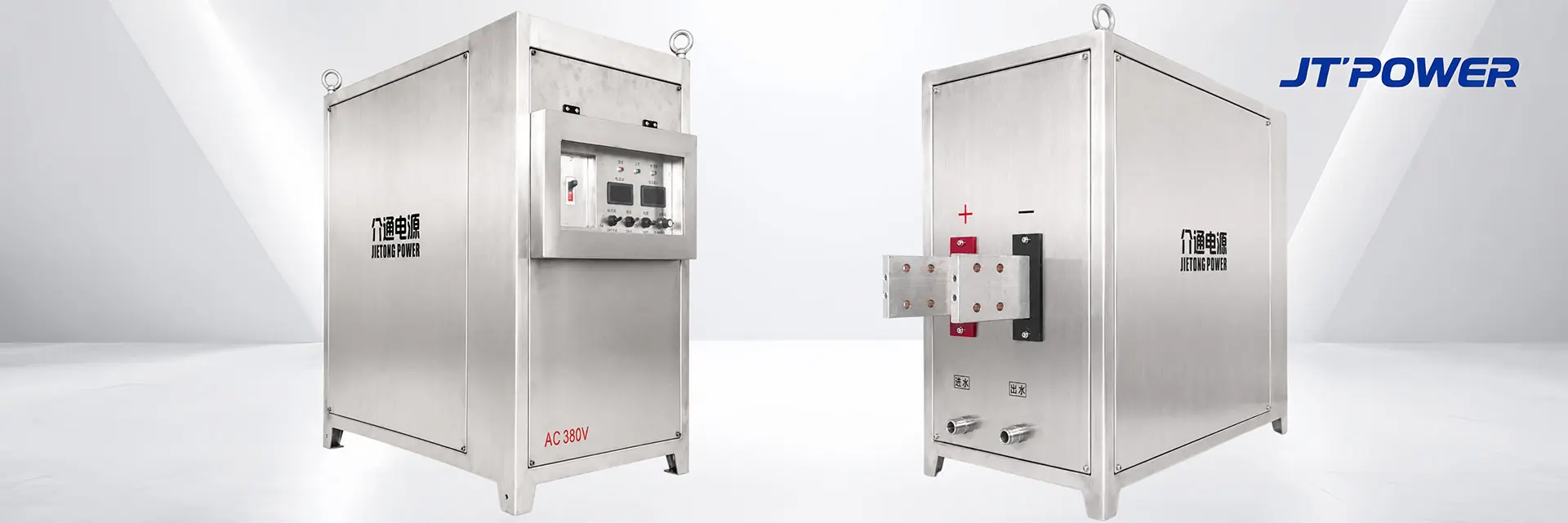

JT-POWER 8000A 15V electrocoagulation rectifier for industrial wastewater and water treatment systems - main product view

Technical Specifications & Operational Matrix (15V 8000A Base)

*Heavy industrial performance attributes verified under full-load continuous factory testing limits.

Solid-State Polarity Reversal
Utilizes premium high-speed electronic commutation parameters rather than traditional slow mechanical switches, permitting fast, programmable reverse cycles to peel off hard plate calcification build-up.
Conductivity Shock Throttling
Equipped with high-velocity internal feedback sensors to smooth over massive water resistance variations, locking down the targeted 8000A DC feed without triggering accidental breaker trips.
SMPS Grid Efficiency Topology
Constructed with a premium switch-mode high-frequency matrix configuration, delivering an unyielding Power Factor ≥ 0.95 under heavy load. Compresses local system heat signatures and grid reactive losses perfectly.
Centralized SCADA Connectivity
Fully compliant with official CE LVD & EMC directives. Features an optically isolated terminal block supporting Modbus RTU (RS485) or standard Profinet loops for master PLC engineering integration.
Technical Parameter Grid Standard Industrial Specification Engineering Compliance Bounds
Rated DC Amperage 8000 Amperes (Continuous Full-Load Output) Paralleling topologies allow multi-unit array synchronization
Rated DC Voltage 15 Volts DC Linear range regulation spanning from 0V up to full 15V head
Commutation Cycle Solid-State Forward/Reverse Action User-programmable time scale limits via digital control panel
Regulation Accuracy ≤ ±1% Constant Current Regulation Locks steady amperage tracks under volatile multi-ion liquid loads
Ripple Coefficient ≤ 1% RMS (Across Full Output Bounds) Multi-stage LC smoothing filter choke networks embedded
Input Main Line 3-Phase AC 380V / 415V / 480V, 50Hz/60Hz Adaptive internal grid balancing with pre-installed soft-starts
Chassis Protection IP54 Sealed Electronics Compartment Isolates inner tracking logic cards from outdoor moisture loops

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Alt text: Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout Equipment Structure Diagram: A clear understanding of the internal structure and functional components of the equipment.

Alt text: Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Custom Blueprinting Framework

Blueprint Adaptive

Built From Your Schematics & Plant Blueprints

Deploying a new industrial plant or restructuring existing bays? Simply forward us your mechanical blueprints or station layouts, and our engineering team will build custom enclosures to fit perfectly.

Patent No

Proprietary High-Frequency Transformer (Patent No: ZL 2019 2 1905918.5)

Incorporating our elite magnetic core matrix engineering, the system directs massive energies with near-zero leakage inductance, heavily reducing continuous cabinet heat dissipation boundaries.

Patent No

Integrated Thermal Dissipation Base (Patent No: ZL 2019 3 0679510.X)

Utilizing our patented copper heavy cooling substrate arrays, critical junction thermal vectors route outward instantly, expanding equipment lifetime margins under constant 24/7 industrial loads.

Isolated Bus

Fully Galvanic Sealed Controller Vault

Our core microprocessor systems are completely sealed away from plant vapors, blocking aggressive common-mode noise and cross-talk ground feedback errors natively.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting back to the primary industrial PLC master grid.


Industrial Site Deployment & Global Logistics

1. Split-Modular Secure Shipping
To ensure maritime safety and facilitate crane-lifting within space-limited facilities, our heavy-duty 8000A systems utilize split-modular enclosure configurations. Units are encapsulated within ISPM-15 compliant sea-worthy wooden cases, lined with industrial moisture-proof membranes to guard against high-salinity marine corrosion.
2. International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering global industrial sea-freight solutions, compliant with international trade codes including FOB port, CIF seaport, and full DDP factory-integration processes.
3. Engineering Audit & Commissioning Support
We provide complete engineering blueprints, circuit schematics, internal component lists, and busbar configuration data to facilitate facility audits. Turnkey remote commissioning support, custom reverse-polarity programming loops, and complete device tracking arrays are provided for factory scalability.
Alt text: Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇



Electrocoagulation 8000A 15V Water Treatment Rectifier

High-efficiency heavy industrial DC rectifier engineered for automated electrocoagulation and electroflotation systems.

At JIETONG POWER (JT-POWER), we manufacture standardized high-capacity electrical architectures for worldwide water purification plants. This heavy-power 8,000A Electrocoagulation Rectifier integrates robust solid-state automatic polarity reversal, designed natively to self-clean parallel electrode plates and run 24/7 without current attenuation.

✓ Automatic Polarity Reversal: Microprocessor-controlled solid-state forward/reverse switching dynamically strips away calcium-magnesium scaling layers, maximizing sacrificial anode lifetime bounds.
✓ Adaptive Constant Current: Advanced DSP control tracking blocks system trips when water conductivity metrics fluctuate heavily due to chemical dosing drops or surge loading.
✓ Heavy IP54 Process Enclosure: Sealed control compartments totally isolate sensitive driver nodes from humid wastewater ambient air, securing continuous structural integrity.

POLARITY REVERSAL SWITCH
8000A / 15V CONTINUOUS
IP54 ENVIRONMENTAL
JT-POWER 8000A 15V electrocoagulation rectifier for industrial wastewater and water treatment systems - main product view

Technical Specifications & Operational Matrix (15V 8000A Base)

*Heavy industrial performance attributes verified under full-load continuous factory testing limits.

Solid-State Polarity Reversal
Utilizes premium high-speed electronic commutation parameters rather than traditional slow mechanical switches, permitting fast, programmable reverse cycles to peel off hard plate calcification build-up.

Conductivity Shock Throttling
Equipped with high-velocity internal feedback sensors to smooth over massive water resistance variations, locking down the targeted 8000A DC feed without triggering accidental breaker trips.

SMPS Grid Efficiency Topology
Constructed with a premium switch-mode high-frequency matrix configuration, delivering an unyielding Power Factor ≥ 0.95 under heavy load. Compresses local system heat signatures and grid reactive losses perfectly.

Centralized SCADA Connectivity
Fully compliant with official CE LVD & EMC directives. Features an optically isolated terminal block supporting Modbus RTU (RS485) or standard Profinet loops for master PLC engineering integration.

Technical Parameter Grid
Rated DC Amperage: 8000 Amperes (Continuous Full-Load Output)
Paralleling topologies allow multi-unit array synchronization cleanly for heavy expansions.

Standard Industrial Specification
Rated DC Voltage: 15 Volts DC Layout
Linear range regulation spanning from 0V up to full 15V headroom field outputs.

Commutation Cycle
Solid-State Forward / Reverse Alternating Action
User-programmable time scale limits calibrated seamlessly via digital control panel tracks.

Regulation Accuracy
≤ ±1% Constant Current Regulation Bounds
Locks steady amperage tracks under highly volatile multi-ion industrial liquid loads natively.

Ripple Coefficient
≤ 1% RMS (Across Full Output Bounds)
Multi-stage LC smoothing filter choke networks embedded deeply to filter harmonics safely.

Input Main Line
3-Phase AC 380V / 415V / 480V, 50Hz/60Hz
Adaptive internal grid balancing integrated natively with pre-installed buffer soft-starts paths.

Chassis Protection
IP54 Sealed Electronics Compartment Housing
Isolates sensitive inner tracking logic cards thoroughly from humid industrial outdoor moisture loops.

Engineering Note: All JT-POWER high-frequency modular rectifier topologies utilize this premium standardized copper busbar routing to fundamentally reduce heating losses, simplify onsite module hot-swapping, and maximize continuous plant runtime limits.

Internal structure diagram of JT-POWER high-power industrial electroplating rectifier showing component layout

System Topology Outline: Cross-sectional mapping of internal structural routing layouts and optimized functional power cell integration.

Internal structure of JT-POWER 30000A 15V high power switching rectifier for industrial electroplating

Technical Integrity Within: Microprocessor telemetry loops are isolated galvanically to secure runtime metrics against grid ripples.

Proprietary Patent Network & Blueprinting Matrix

Blueprint Adaptive
Built From Your Schematics & Plant Blueprints
Forward your mechanical blueprints or station layouts. Our engineering team will build custom enclosures to fit perfectly into your technical bays natively.
Patent No: ZL 2019 2 1905918.5
Proprietary High-Frequency Transformer Matrix
Incorporates elite magnetic core matrix engineering to direct massive energy with near-zero leakage inductance, heavily reducing heavy-power heat signatures.
Patent No: ZL 2019 3 0679510.X
Integrated Thermal Dissipation Copper Base
Patented copper heavy substrates route junction thermal vectors outward instantly, maximizing equipment system runtime parameters under constant continuous loads.
Isolated Bus
Fully Galvanic Sealed Controller Vault
Core microprocessor telemetry structures are entirely sealed away from plant vapors, blocking aggressive common-mode noise and ground loop feedback errors.

Industrial Automation & Network Architecture

Designed for seamless integration into heavy-duty processing plants, the system features a robust digital telemetry link. An optically isolated RS485 communication hub running standard Modbus RTU protocols establishes a noise-resistant network directly to centralized control nodes, supporting up to 32 multi-unit power clusters simultaneously. High-speed interfacing allows for instantaneous current ramp-up programming, multi-stage tank recipe cycling, continuous thermal logging, and micro-second fault diagnostic reporting.

Industrial rectifier centralized monitoring network system diagram with Master control and central server

Network Control System: Optical isolation hub with Modbus/Industrial Ethernet telemetry solution for centralized monitoring up to N≤32 clusters natively.

Industrial Site Deployment & Global Logistics

Step 01
Split-Modular Secure Shipping
Heavy-duty systems utilize split-modular configurations for limited site access. Units are sealed in ISPM-15 compliant sea-worthy wooden cases with moisture membranes to prevent maritime corrosion.
Step 02
International Logistics Handling
Consignments reach sea-readiness within a standard 30-45 business day production cycle. We provide full export logistics covering FOB port, CIF seaport, and global DDP factory-integration protocols.
Step 03
Engineering Audit & Commissioning Support
Complete engineering blueprints, circuit schematics, and busbar layouts are supplied for facility audits. Turnkey remote commissioning loops and tracking arrays are fully provided.
Heavy-duty wooden case packaging for secure export shipping of hard chrome plating rectifier

⚡ 100% Flexible Engineering & Bespoke Parameter Customization

Require specific voltage/current curves, dedicated reverse-polarity switching, or custom dimensions to fit your existing tanks? We customize equipment of any power rating (100A to 100,000A+) and voltage (6V to 150V+) based strictly on your factory blueprints.

Please submit your required specification below for a technical consultation.
👇👇👇
Back

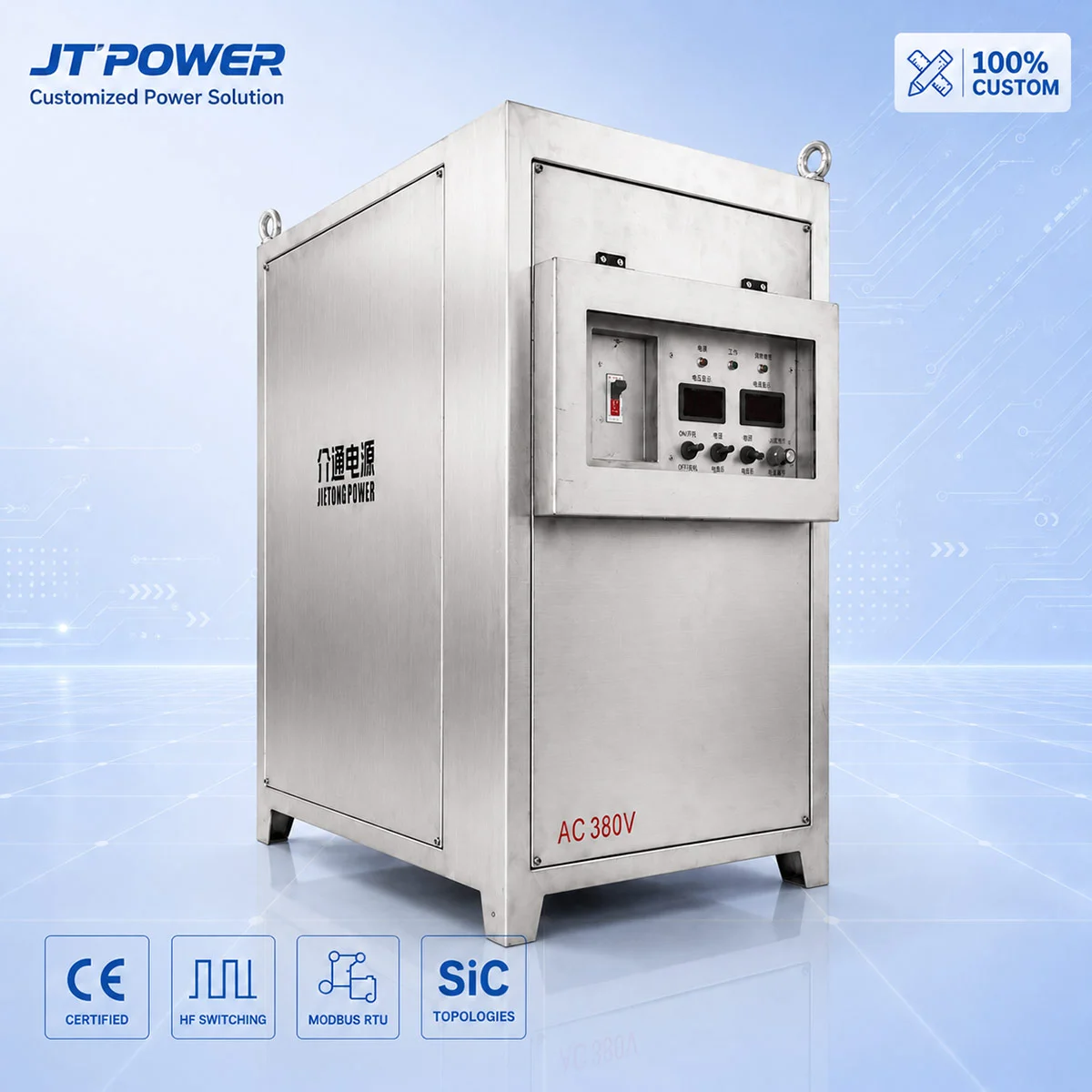

JT-POWER 15V 8000A industrial electrocoagulation rectifier system with heavy-duty stainless steel enclosure, front protected control pane, and low-ripple SiC topologies for wastewater treatment.
Leave Message

Related Products

Direct Engineering Hotline
+86-138-0268-7354
Global Sales Support
info@jt-rectifier.com
Technical Support Matrix
info@jt-rectifier.com
Proceed to Official Inquiry Page

Response within 24 hours

Section 1: Application & Plating Process FAQ 🛰️
How does this 8000A 15V rectifier optimize sacrificial anode dissolution during electrocoagulation?
Electrocoagulation (EC) relies on precise current density to dissolve aluminum ($Al^{3+}$) or iron ($Fe^{2+}$) sacrificial anodes, generating coagulants that destabilize suspended solids and emulsified oils. Our system delivers rock-solid current regulation to maximize pollutant removal efficiency, acting as a premier electrocoagulation wastewater rectifier for high-volume treatment plants.
Can this 15V power supply handle the sudden conductivity drops common in industrial wastewater?
Yes, seamlessly. Effluent stream composition, salinity, and temperature change rapidly in a reactor tank. The integrated microsecond feedback loop dynamically transitions between constant voltage and constant current modes, outperforming traditional units as a highly adaptive industrial wastewater treatment power supply.
What ripple factor does this 8000A rectifier guarantee, and how does it prevent passive layer formation?
The current ripple factor is strictly controlled within ≤1% RMS at full load. This ultra-flat output prevents voltage spikes that accelerate oxide passivating film buildup on the electrodes, making it the preferred low ripple 8000A rectifiers build for stable long-term runs.
Does this water treatment system support automated reverse polarity switching to clean electrodes?
Absolutely. Cathode scaling and anode passivation degrade electrical efficiency over time. Our integrated electronic polarity reversing module automates scaling removal and balances anode consumption, serving as a heavy-duty reverse polarity electrocoagulation rectifier.
Is this 15V 8000A power assembly rated for continuous 24/7 heavy environmental engineering runs?
Yes. Environmental infrastructure cannot afford downtime. This unit features a 100% continuous duty cycle design backed by rugged thermal safety margins, making it a highly reliable continuous duty environmental industrial rectifier.
Section 2: Hardware Architecture & Enclosure FAQ 🔧
How does the enclosure safeguard internal electronics from aggressive wastewater gases?
Wastewater treatment plants contain highly corrosive gases like $H_2S$ alongside thick moisture. The cabinet features an IP54-rated hermetically sealed internal compartment with isolated air ducts and specialized multi-layer conformal coatings, establishing an ultra-robust anti-corrosion wastewater treatment rectifier chassis.
What are the hardware and efficiency advantages of moving from standard IGBTs to Silicon Carbide topology?
By incorporating high-frequency Silicon Carbide (SiC) MOSFET switches running at 100kHz, the unit achieves up to 93% conversion efficiency. This minimizes internal power dissipation and shrinks the physical cabinet footprint compared to older setups, defining a true high efficiency Silicon Carbide rectifiers architecture.
How are the heavy-current output busbars engineered to manage 8000A safely?
The system utilizes oversized, high-purity T2 red copper busbars finished with extensive silver plating. This eliminates contact resistance boundaries and limits full-load operational temperature delta to ΔT≤30°C, a core feature of our heavy duty copper busbar rectifiers.
What transformer core technology manages the continuous 120kW power output blocks?
We employ premium nanocrystalline EE130 cores paired with high-grade multi-strand Litz wire windings. This configuration eliminates skin effect bottlenecks and core saturation common during high-frequency switching in this high frequency transformer switching power supply block.
Can multiple 8000A modules be parallelized or configured with an N+1 redundancy layout?
Yes, absolutely. For high-capacity water clarification lines, independent sub-modules can be parallelized to share the load. If one module trips, the remaining units adjust seamlessly to provide maximum uptime via modular high power switching rectifiers configurations.
Section 3: Digital Controls & Automation FAQ 🔬
Which digital communication protocols are supported for automated plant PLC network integration?
The control board natively features isolated RS485 Modbus-RTU channels and can be upgraded to Profinet or Ethernet nodes, ensuring low-latency communication with central control rooms over a Profinet programmable industrial rectifiers network.
What hardware processor architecture drives the high-speed PID control loops?
The computational core is driven by a high-speed industrial microcontroller chip, executing fast regulation commands with zero thermal drift compared to old analog microcontroller control industrial rectifiers cards.
How fast does the short-circuit protection matrix react to reactor tank short-circuits?
The digital firmware evaluates feedback parameters constantly and executes an electronic pulse shutdown in under 10 microseconds upon detecting dead shorts or plating tank faults, delivering elite safety standard in fast response pulse switching rectifiers.
What level of setting and readback resolution is provided on the digital control panel?
The calibration architecture allows fine adjustments down to 0.1V and 1A on the high-contrast HMI panel, giving plant technicians the exact control granularity necessary for an elite precision digital wastewater power supply terminal.
Will starting this 120kW electrocoagulation power supply cause dangerous voltage drops in the facility grid?
Not at all. The automated digital control system executes a smooth, programmable soft-start sequence that completely limits initial current inrush spikes, fulfilling the grid protection promises of our soft start high current rectifiers.
